FM230MC

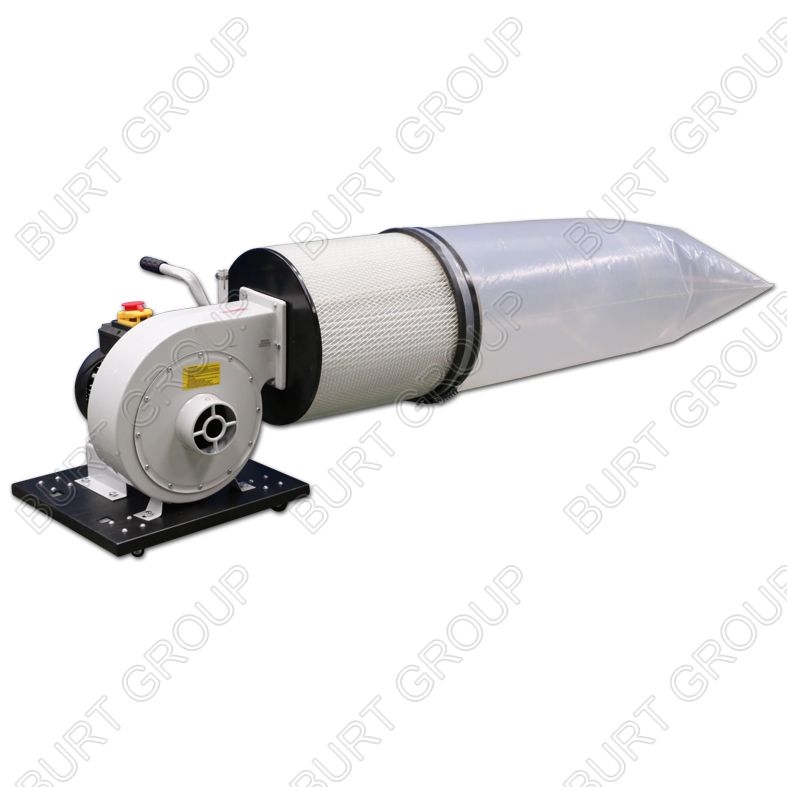

FM230MC 1HP MINI DUST COLLECTOR
Main Features

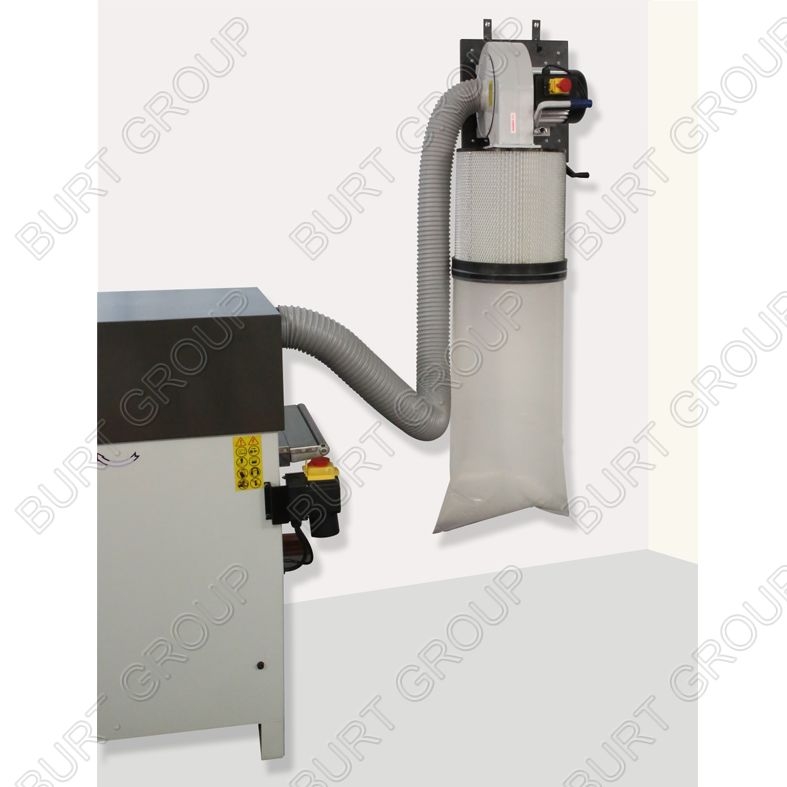

* Wall mounted extractor for small workshops and woodturners

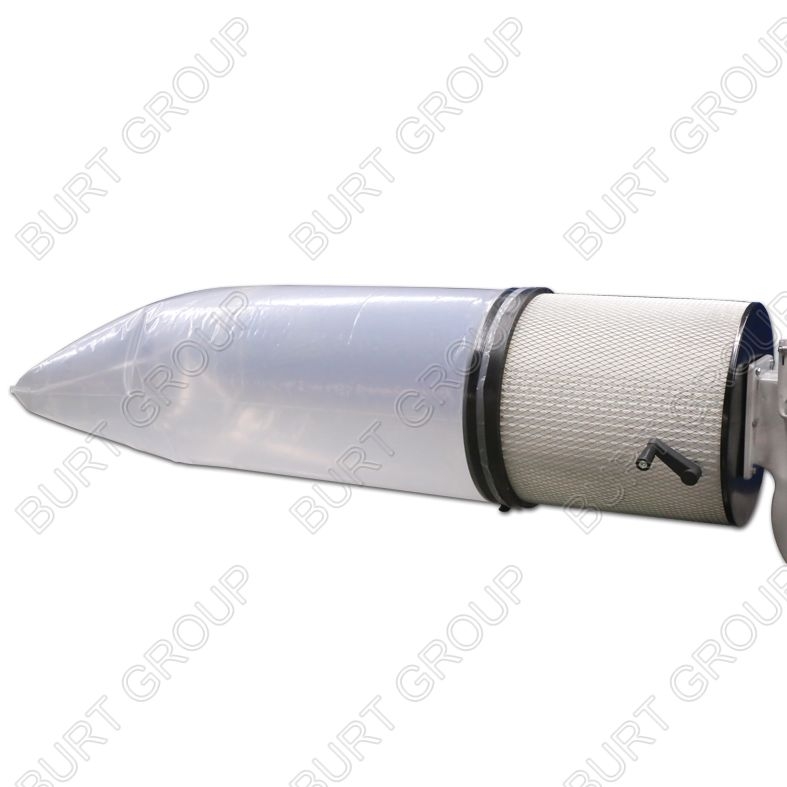

* 1,000m3/hr flow rate, 1 micron cartridge filter with waste bag attached
* 100mm inlet diameter, fits many machines and accessories
* Quiet and efficient, is not obtrusive in use
* Ideal for connecting to stand-alone machines
* Can be connected to a 100mm dust system


Description Video Documents

01)  Motor: 750W, TEFC
02)  Fan diameter: 230mm
03)  Inlet diameter: 100mm
04)  Number of intake holes: 1 x 100
05)  Air speed 50Hz: 375M3 min/h
06)  Bag diameter: 340 mm
07)  Bag height: 908 mm
08)  Cartridge filtration area:1.73m3
09)  Cartridge filtration rate(micro):1
10)  Overall size:1645x450x510mm
11)  Packing size: 440x410x420mm;440x390x390mm
11)  N/G weight: 19/21kg;6/7kgs
12)  20-foot container: 175 units

* Wall mounting bracket fitted
