The stand-alone, unpowered cyclone interceptor is designed to be used with a standard high volume low pressure dust collector to provide the airflow.

Using this interceptor, you can create a wood dust and chip extractor which will handle even fine dusts from drum sanders. You can either use this unit to upgrade your current workshop chip extraction system (with the typical bag filter) or place this unit next to a drum or belt sander to intercept the fine dusts before the air stream reaches the chip extractor.

It is fitted with 125-100mm inlet and outlets, which suit many common woodworking machines. We recommend using a High Volume Low Pressure chip extractor with at least a 1.5hp motor. It is not suitable for use with a High Pressure Low Volume (vacuum) type extractor.

01)   Dust collection drum capacity: 118L
02)   Collection bag size: Ф500X850mm
03)   Inlet size: Ф125mm
04)   Inlet adaptor: 1xФ125mm-2xФ100mm
05)   Outlet size: Ф125mm
06)   Outlet adaptor: Ф125mm-Ф100mm
07)   N.W./G.W.:32/35.8 kgs;5.4/6.6 kgs

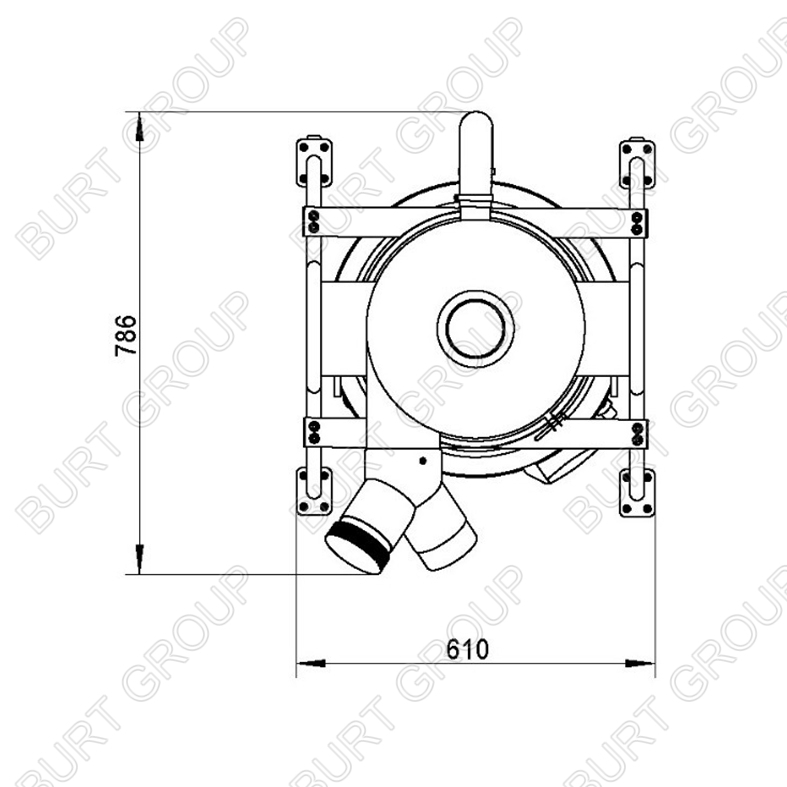

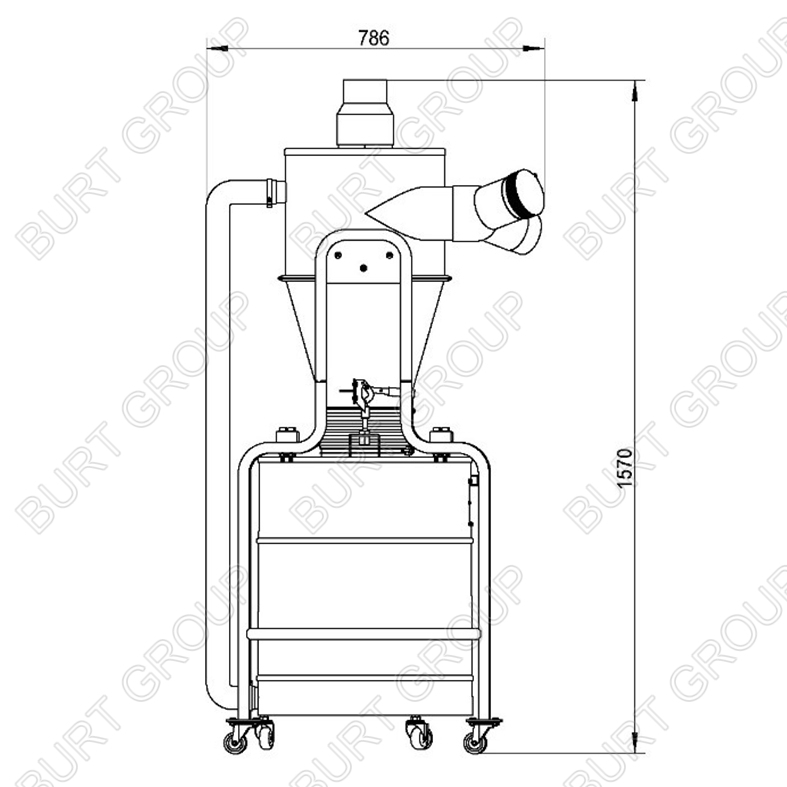

08)   Overall size: 935X610X1625mm
09)   Packing size: 1112X562X752mm;655X900X120mm
10)   20'GP container: 50 pcs

Spare accessories:
Spare Plastic bag for Collection drum: DCA-2-P1000
