FM230L1WA

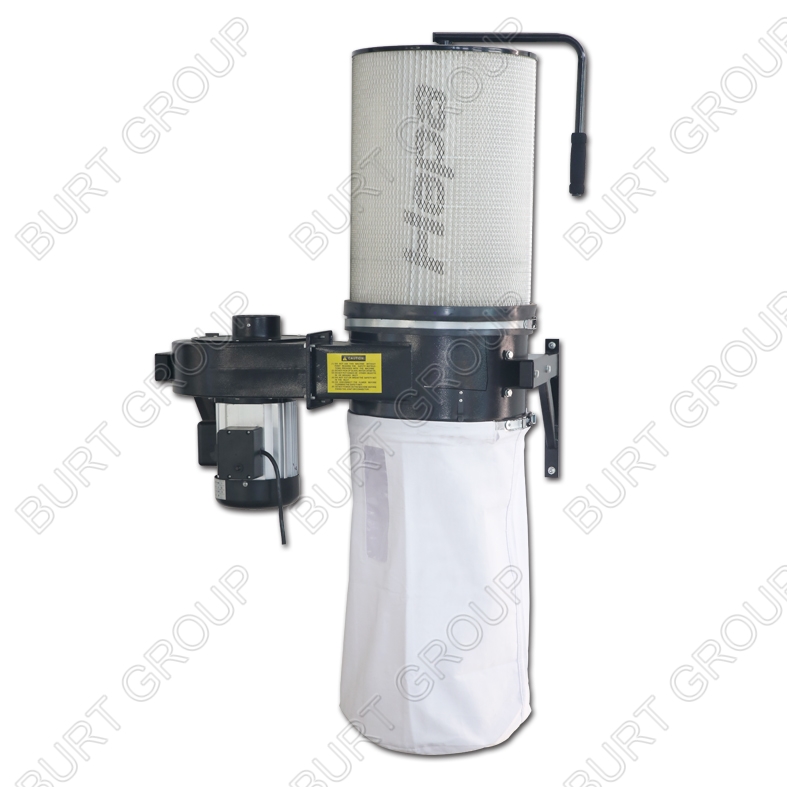

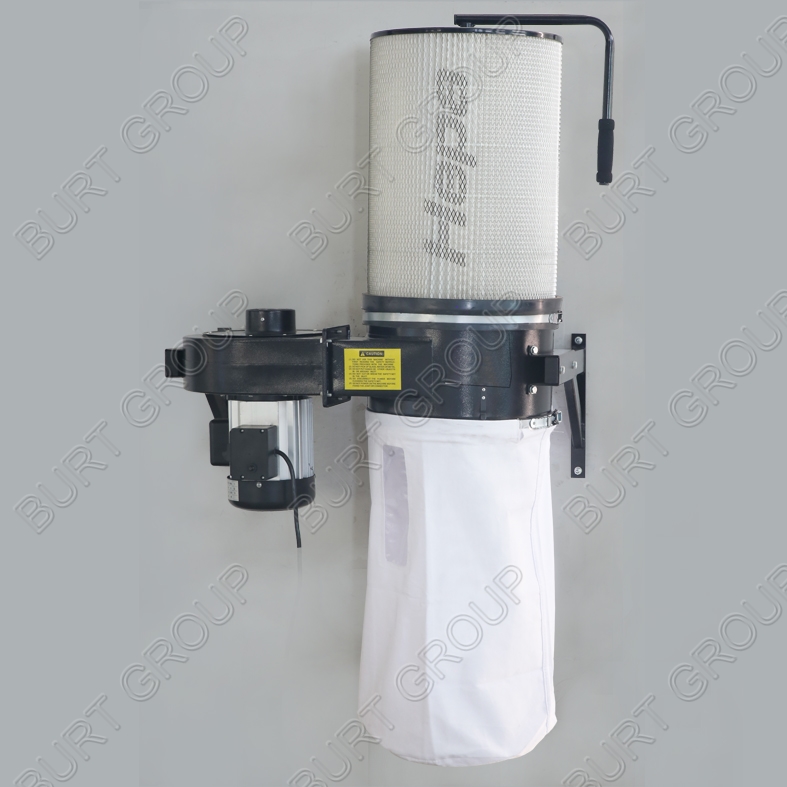

FM230L1WA WALL MOUNTING 1HP DUST COLLECTOR WITH 370MM BAG DIAMETER + 19" HEPA CARTRIDGE FILTER + CLOTH LOWER BAG + MOTOR/INLET INTERCHANGABLE
Main Features

* With Polyester fiber material filter bag on the top + plastic collection bag on the bottom fitted as standard fitting.

* Floor attachment and robust extraction hose supplied

* 230mm impeller size and 1x100mm inlet hose size

* Wheel-mounted design offers easy unit positioning

* Ideal for professional-grade applications


Description Video Documents

01)  Motor: 750W, TEFC

02)  Fan diameter: 230mm

03)  Inlet diameter: 100mm

04)  Number of intake holes: 1 x 100

05)  Air speed-50Hz: 265CFM/7.5cubic meter/min

06)  Air speed-60Hz: 365CFM/10.3cubic meter/min

07)  Bag diameter: 370mm

08)  Bag height: 640mm

09)  Bag volume: 0.057cubic meter

10)  Overall LxWxH: 790X467X1349mm

11)  Net/gross weight: 24/26kgs+6/8kgs

12)  Packing size: 760X450X460mm+620x400X400mm

13)  Units per 20 foot container: 100


* With Polyester fiber material filter bag on the top + plastic collection bag on the bottom fitted as standard fitting.
