DC370-B2

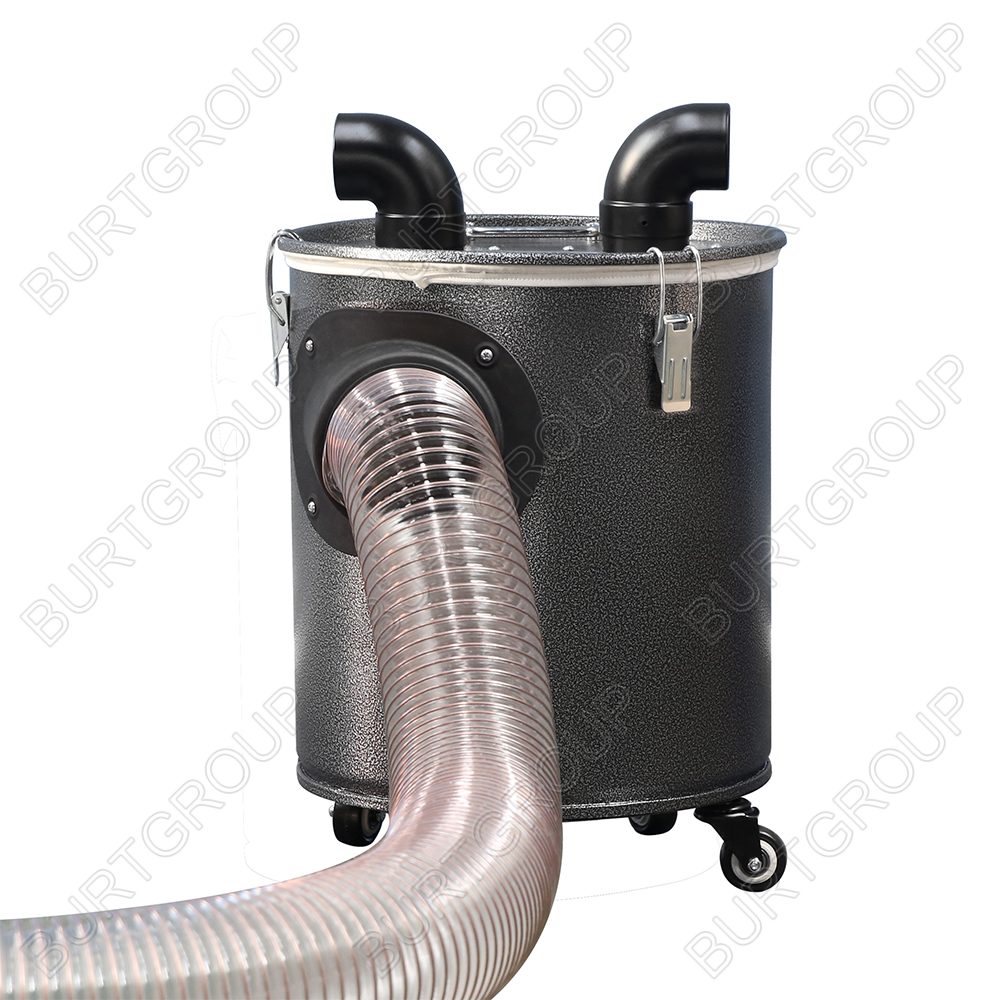

DC370-B2 DC series Extractor 36 Litres Capacity with 2x1200w motor
Main Features

1. Cyclonic Inlet: The cyclone inlet system draws the waste around the side of the drum and away from the filters and motors, increasing their lifespan.

2. Low Noise Output: The motor exhaust and elbow design effectively reduce noise during operation, it's around 75 dB when run one motor and 78 dB when run two motors. When fitted with the hose, it can be reduced to around 72 dB and 75 dB respectively.

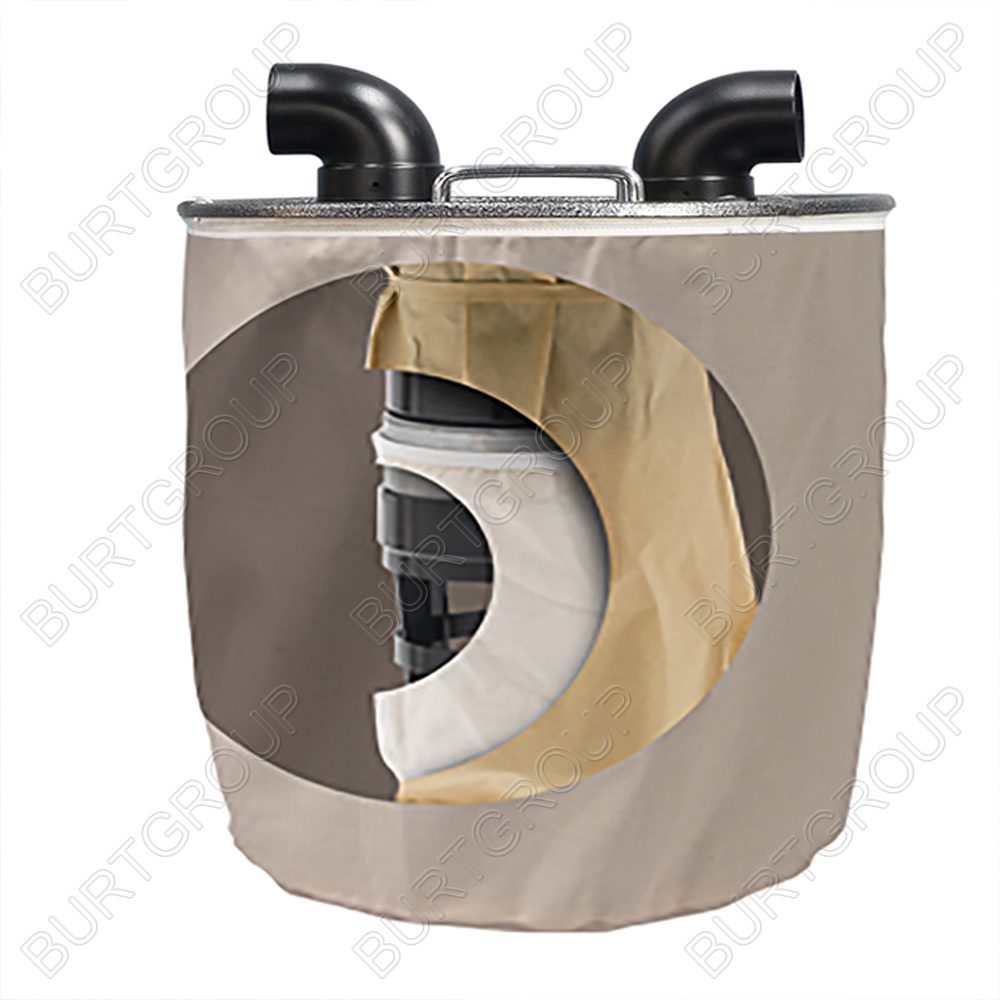

3.  Three-Stage Filtration to 0.5 Microns: The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system.

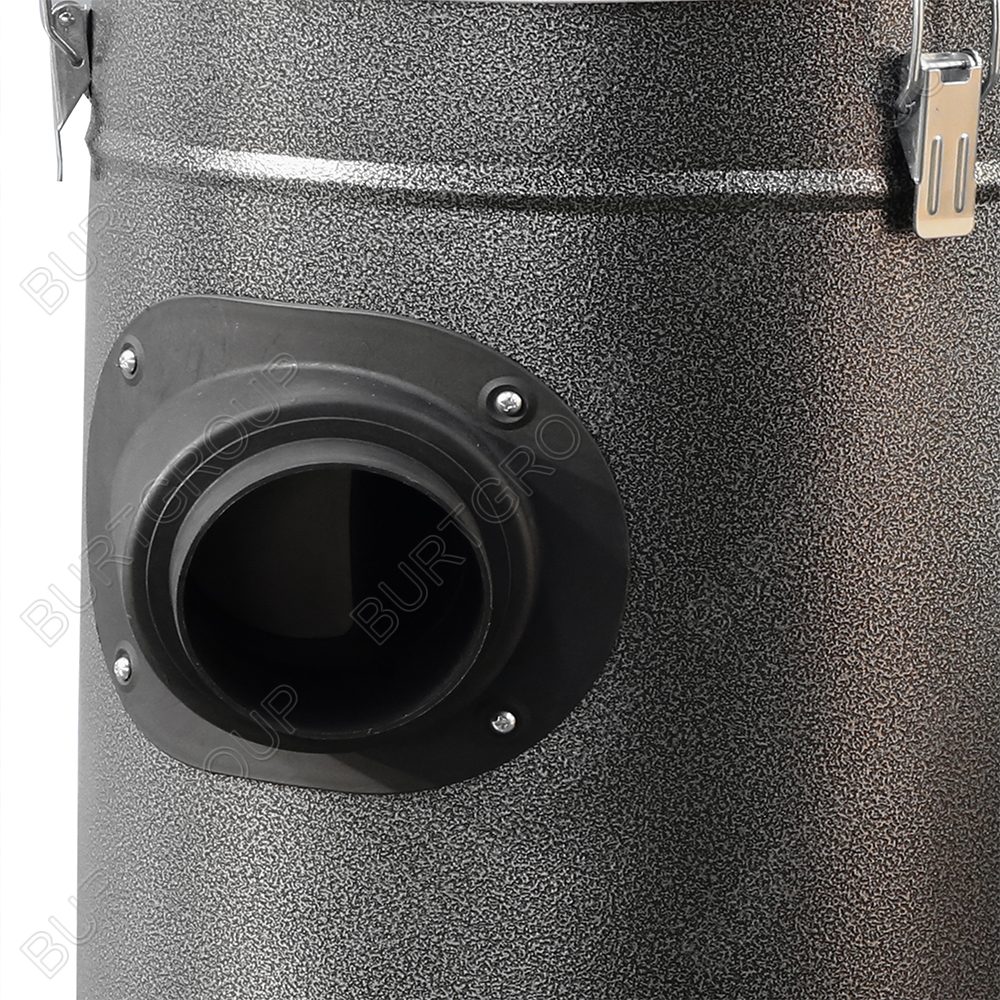

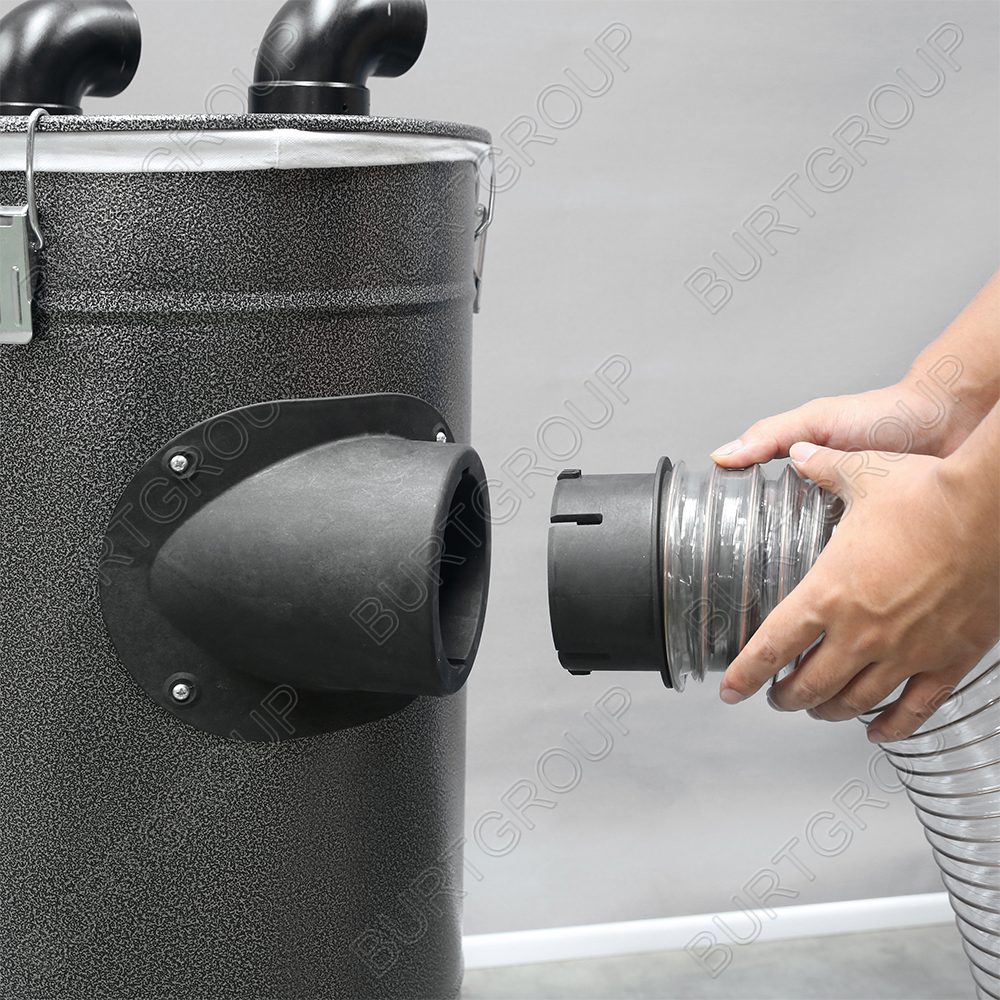

4. Bayonet Inlet Fitting: The machine inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine.


Description Video Documents

Main Features:

1. Cyclonic Inlet: The cyclone inlet system draws the waste around the side of the drum and away from the filters and motors, increasing their lifespan.

2. Low Noise Output: The motor exhaust and elbow design effectively reduce noise during operation, it's around 75 dB when run one motor and 78 dB when run two motors. When fitted with the hose, it can be reduced to around 72 dB and 75 dB respectively.

3.  Three-Stage Filtration to 0.5 Microns: The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system.

4. Bayonet Inlet Fitting: The machine inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine.


Specification:

1. Motor power input:2x1200w

2. Voltage:230V,50Hz

3. Full Load Amps: 11A

4. Motor speed: 20000 RPM

5. Power plug: C13/14

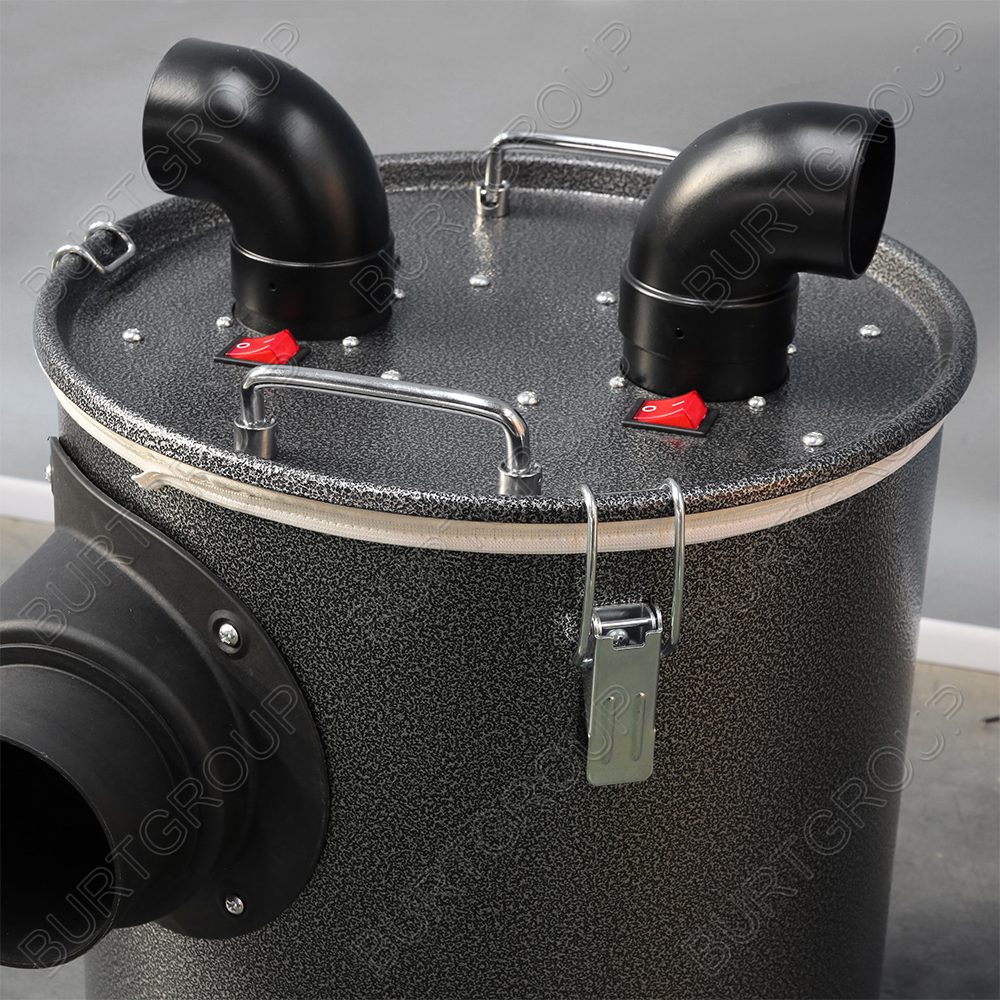

6. On/off switch: HY12 rocker switch

7. Inlet diameter: 4 in. (100 mm)

8. Number of Inlet: 1

9. Level of noise(dB):Run one motor:75 (72 with hose)

   Run two motors: 78 (75 with hoses)

10. Capacity (Gal): 9.95

11. Diameter(mm): 360

12. Overall Size(mm): 450x370x560
