DC370-B1

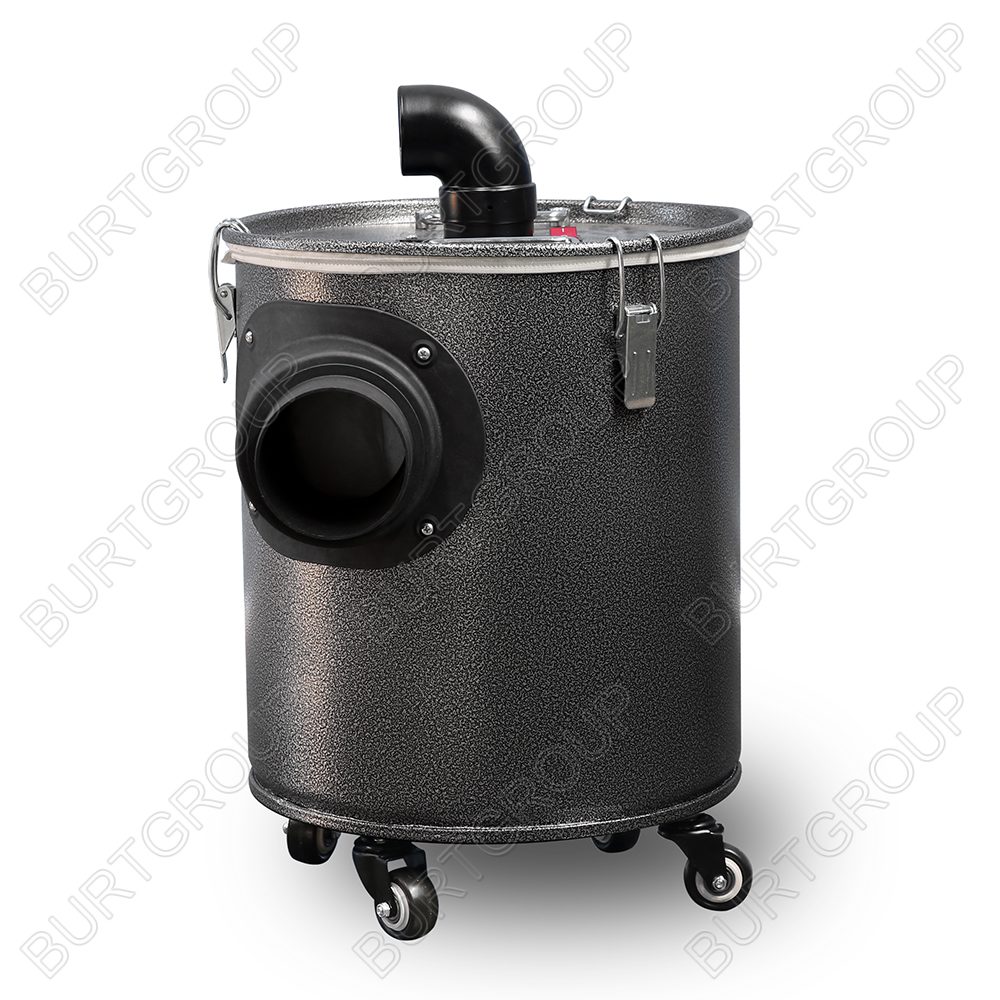

DC370-B1 DC series Extractor 36 Litres Capacity with 1200W motor
Main Features

1. Cyclonic Inlet: The cyclone inlet system draws the waste around the side of the drum and away from the filters and motors, increasing their lifespan.

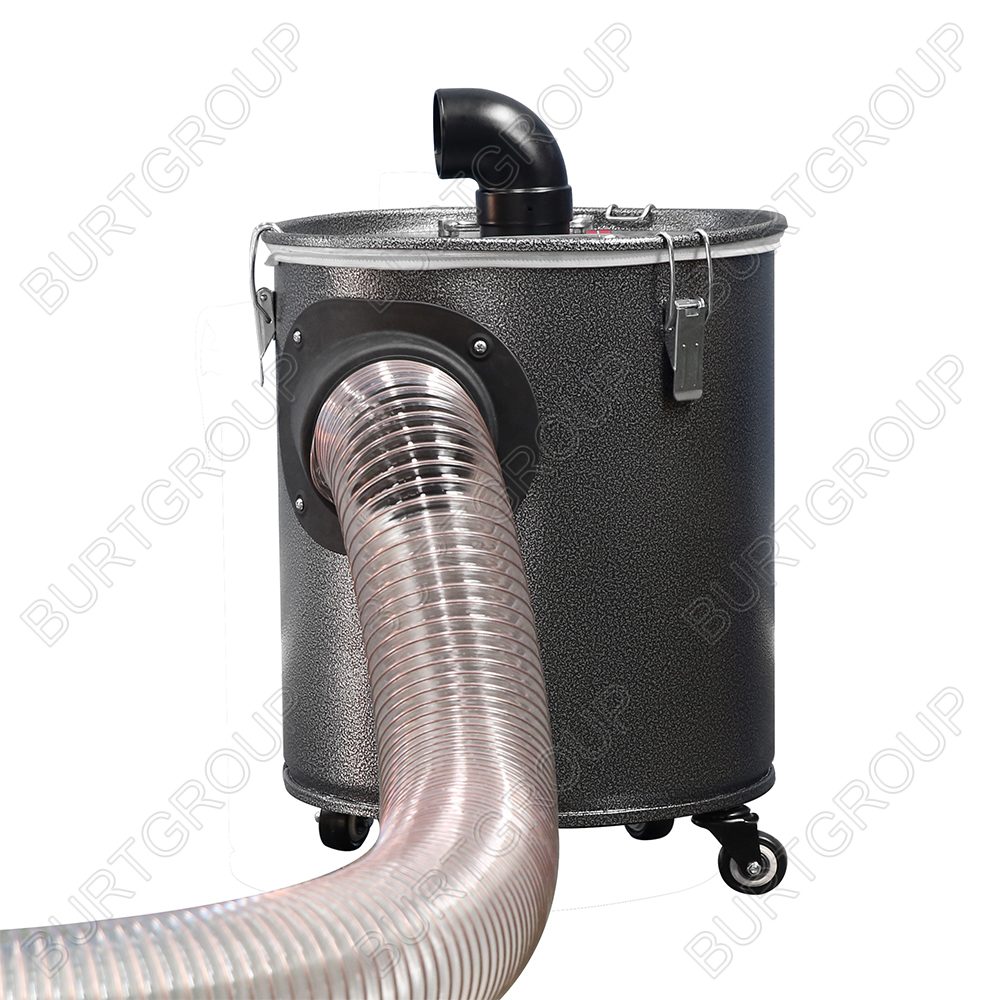

2. Low Noise Output: The motor exhaust and elbow design effectively reduce noise during operation, it's around 75 dB. When fitted with the hose, it can be reduced to 72 dB.

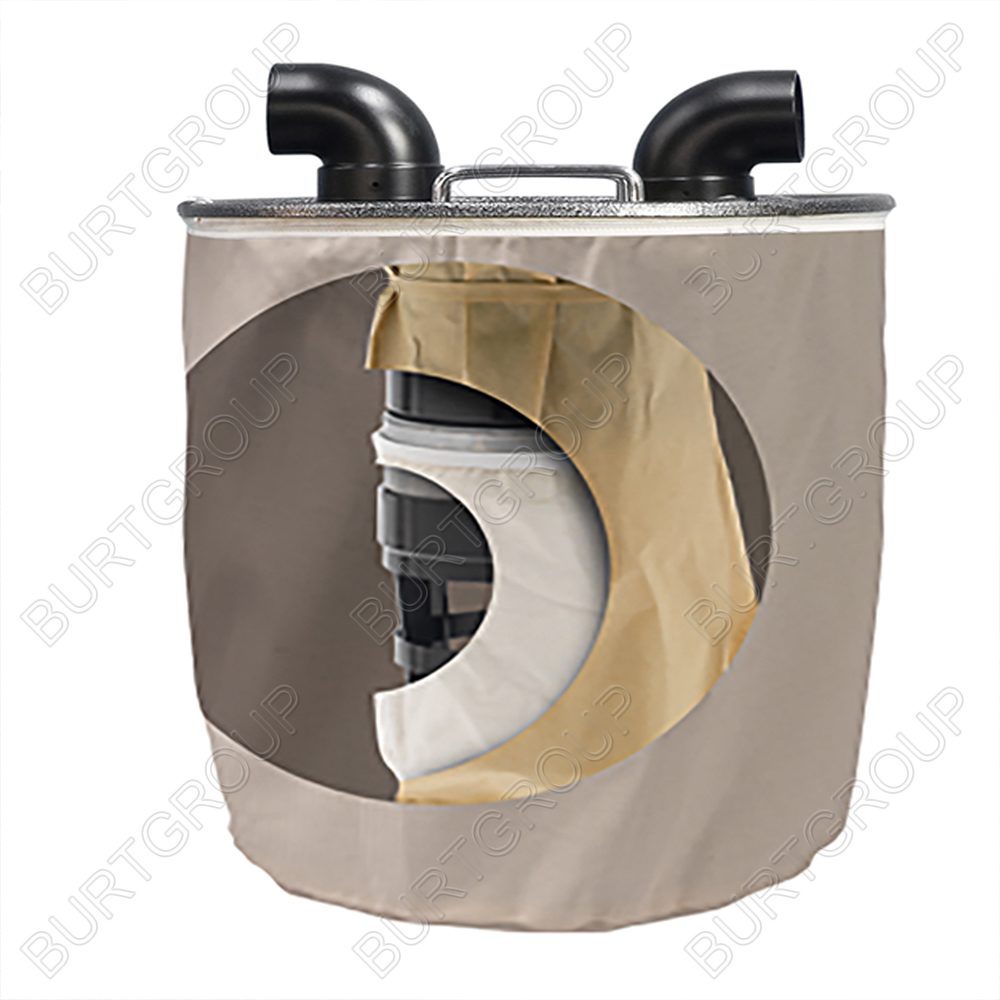

3.  Three-Stage Filtration to 0.5 Microns: The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system.

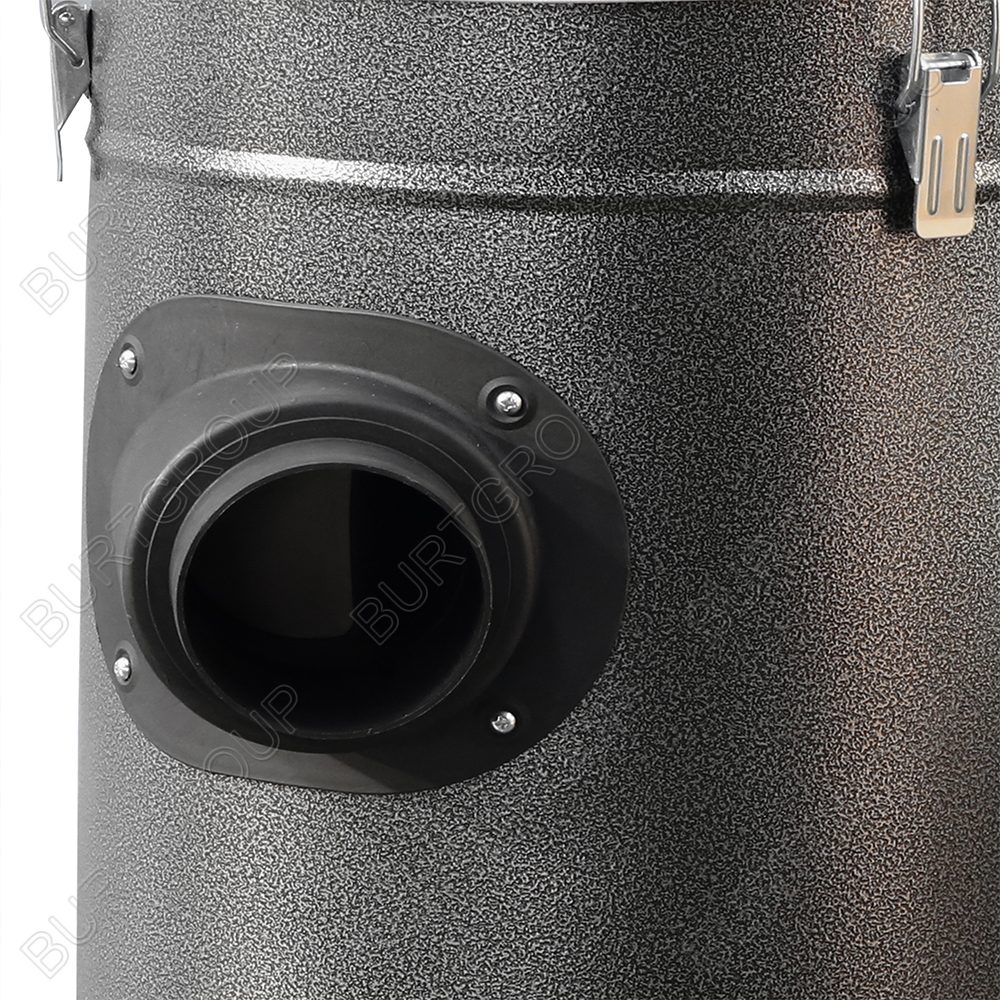

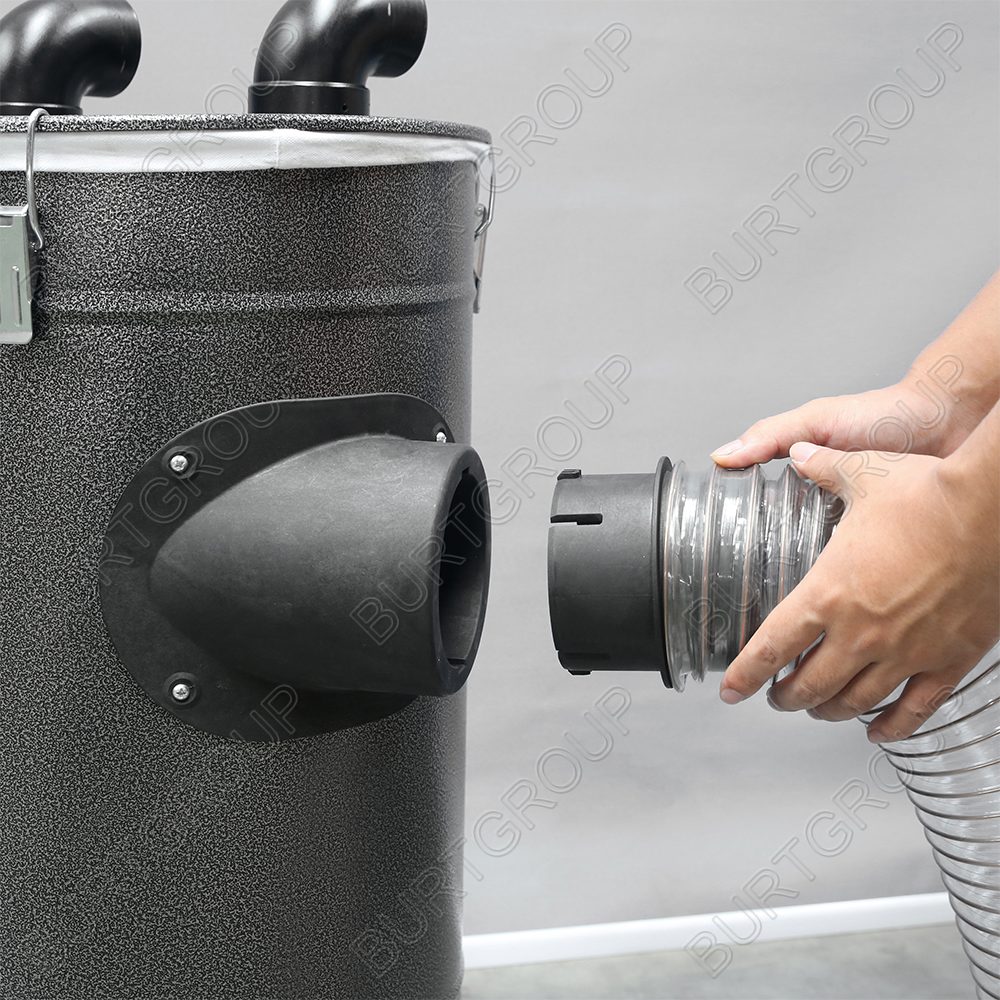

4. Bayonet Inlet Fitting: The machine inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine.

Description Video Documents

Main Features:

1. Cyclonic Inlet: The cyclone inlet system draws the waste around the side of the drum and away from the filters and motors, increasing their lifespan.

2. Low Noise Output: The motor exhaust and elbow design effectively reduce noise during operation, it's around 75 dB. When fitted with the hose, it can be reduced to 72 dB.

3.  Three-Stage Filtration to 0.5 Microns: The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system.

4. Bayonet Inlet Fitting: The machine inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine.


Specification:

1. Motor power input:1200w

2. Voltage:230V,50Hz

3. Full Load Amps: 5.5A

4. Motor speed: 20000 RPM

5. Power plug: C13/14

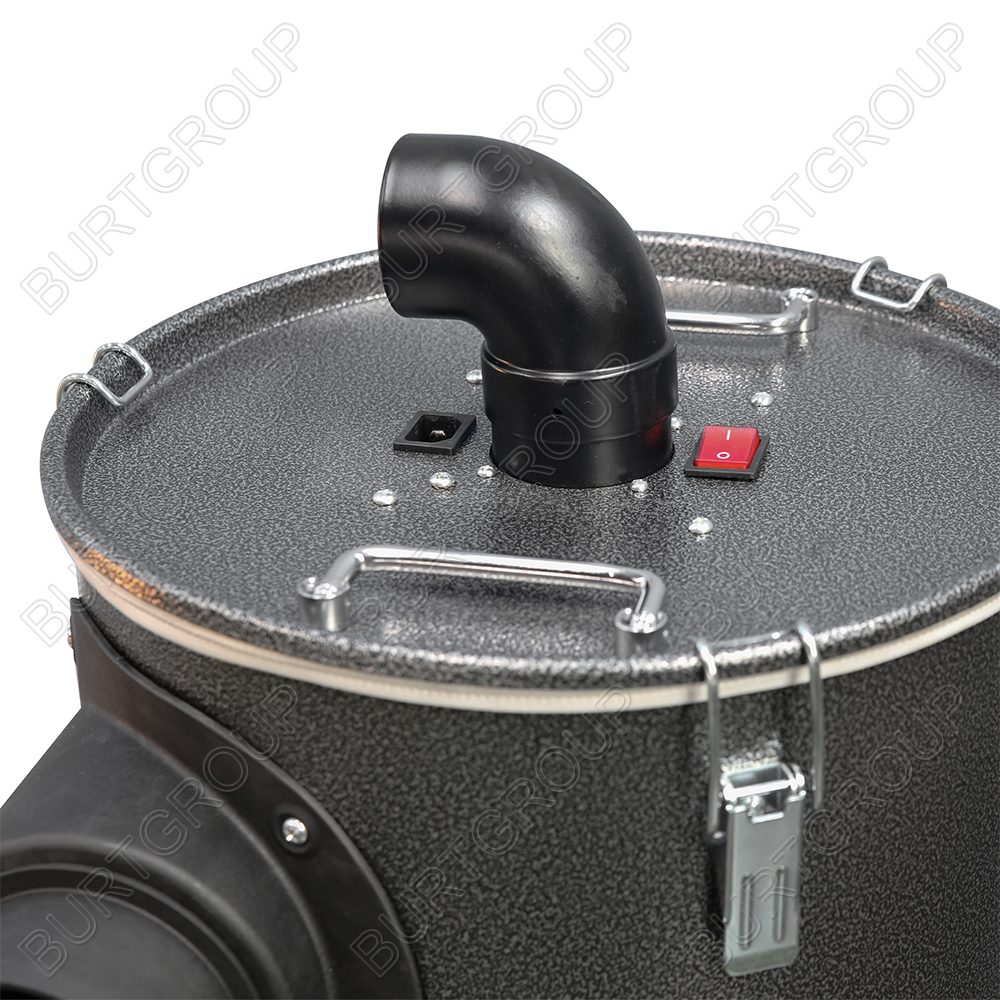

6. On/off switch: HY12 rocker switch

7. Inlet diameter: 4 in. (100 mm)

8. Number of Inlet: 1

9. Level of noise(dB):75 (72 with hose)

10. Capacity (Gal): 9.95

11. Diameter(mm): 360

12. Overall Size(mm): 450x370x560
