MC1847VFM

MC1847VFM ELECTRONIC VARIABLE SPEED 18"x47" WOOD LATHE 1500W WITH TAIWAN DELTA INVERTER + MAGNETIC CONTROL BOX M33X3.5-DIN800
Main Features

Main features:

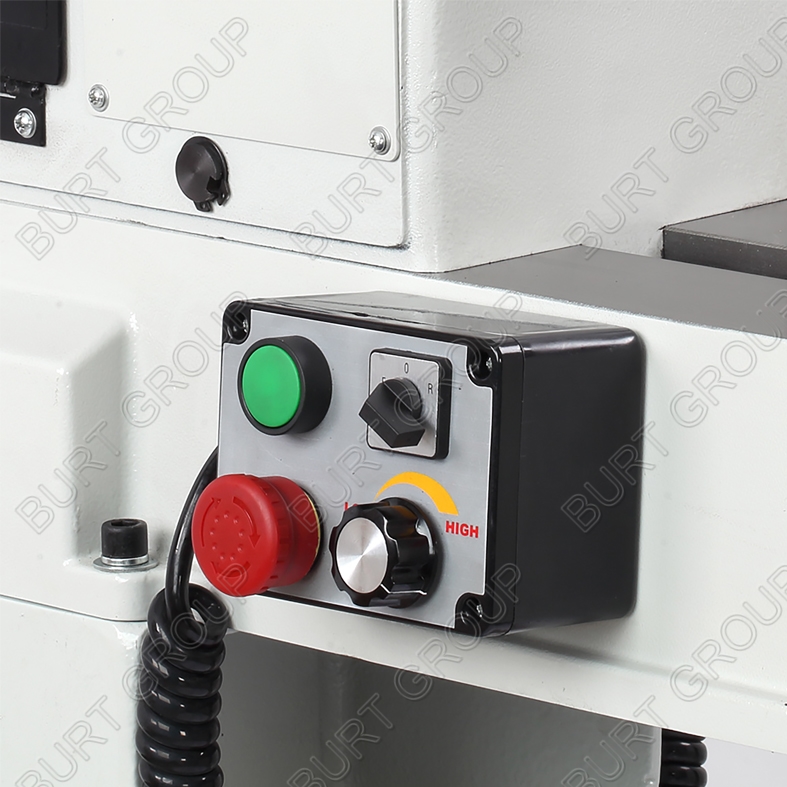

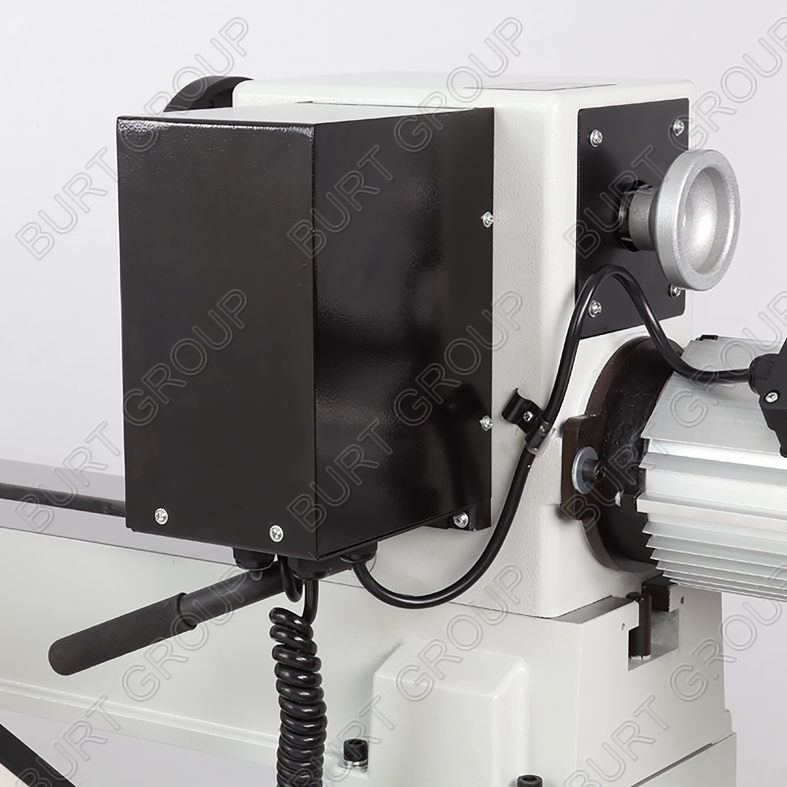

* Magnetic control box can be positioned where required
* Electronic Inverter Variable Speed Lathe with TAIWAN DELTA brand Inverter
* Two belt ratios for high torque when turning large diameters

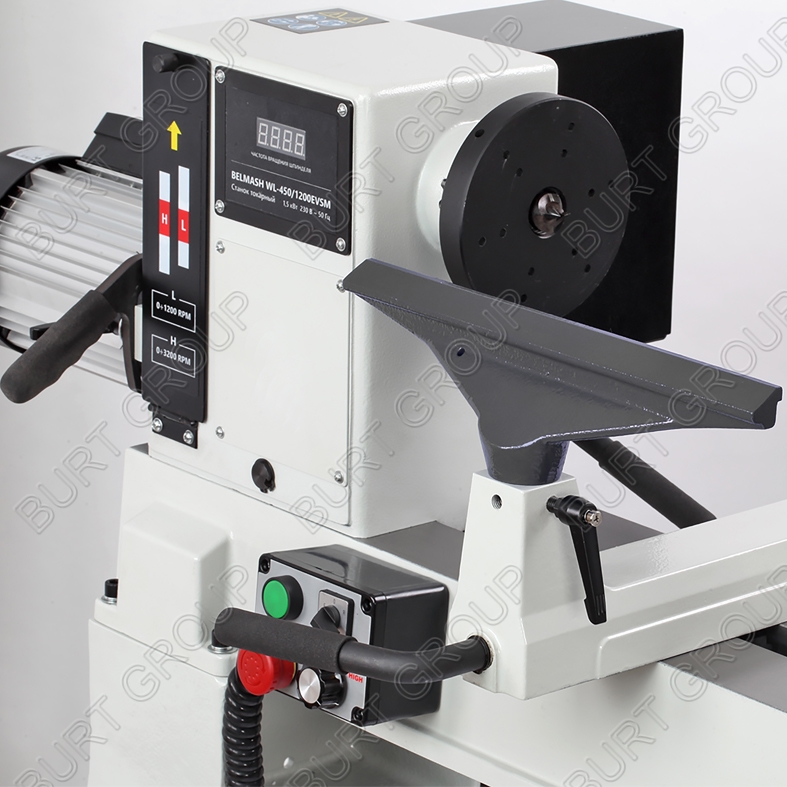

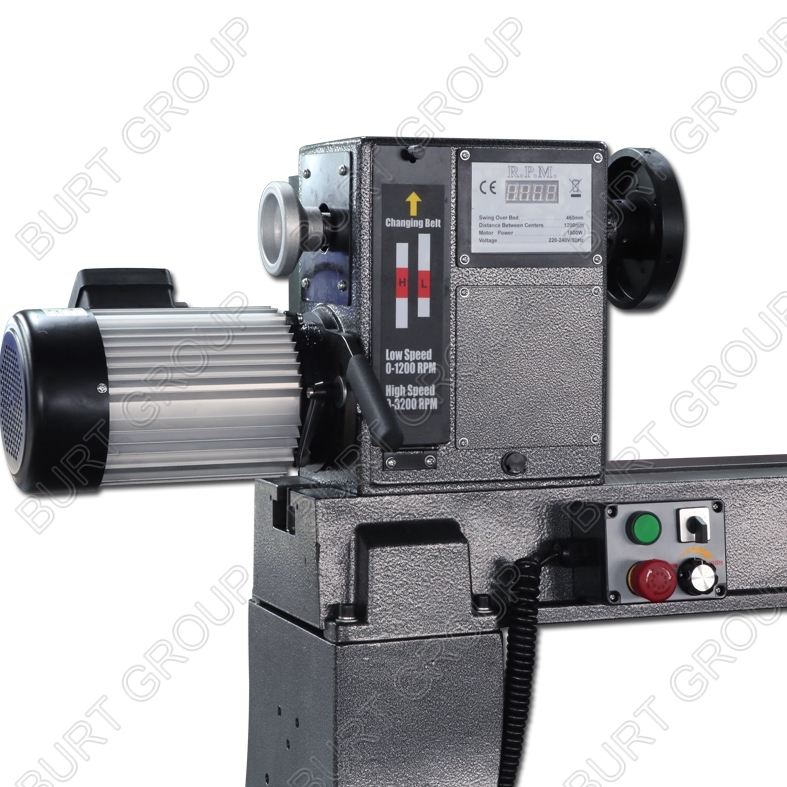

* Digital speed display on headstock

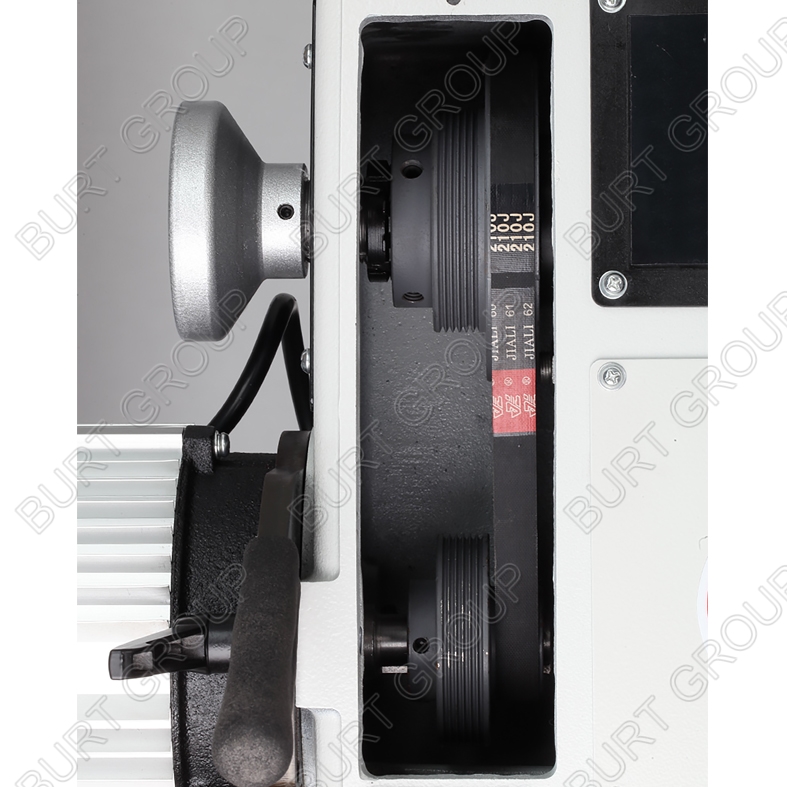

* Quick belt change construction headstock
* All cast iron constuction for high stability and vibration free running
* Cast iron stand with provision for a shelf
* 36 Indexing Positions Function
* With Forward/Reverse running function


Description Video Documents

Specifications:
01)   Description: 18"x47" wood lathe
02)   Motor(Output W): 1500W
03)   No. of Speed: Variable
04)   Spindle Speed: 0~1200rpm Low Speed, 0~3200rpm High Speed
05)   Swing Over Bed: 460mm(18")
06)   Distance Between Centers: 47" (1200mm)
07)   Drive Spindle: M33X3.5 or others
08)   Headstock and Tailstock Taper:MT2#
09)   Face Plate: 152mm(6")

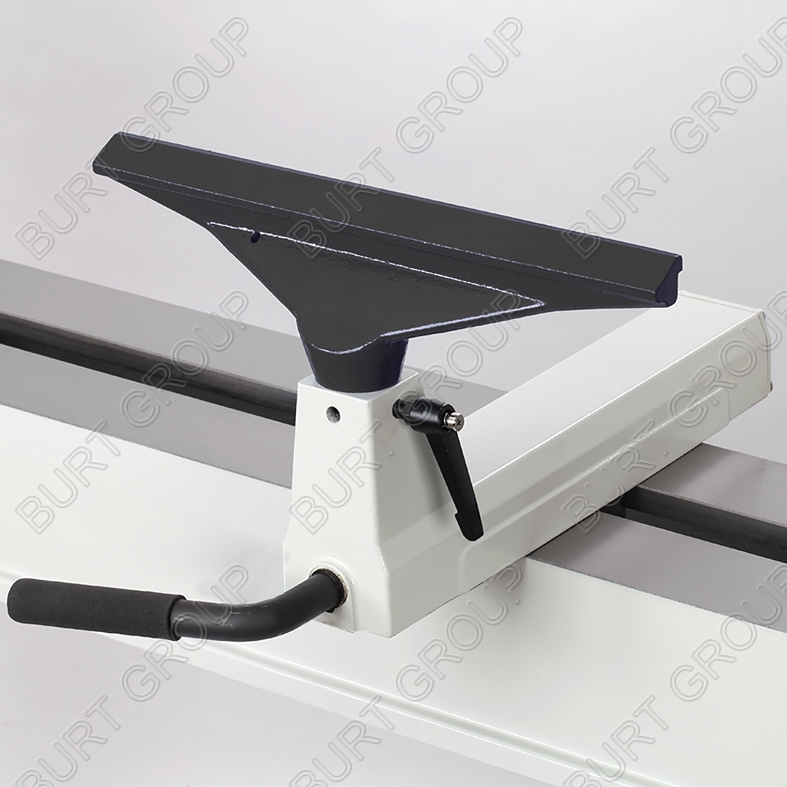

10)   Tool Rest: 355mm(14")
11)   Packing Size(mm): 1720x550x570
12)   G/N.W: 265/190kgs
13)   Units per 20-foot container: 52pcs
