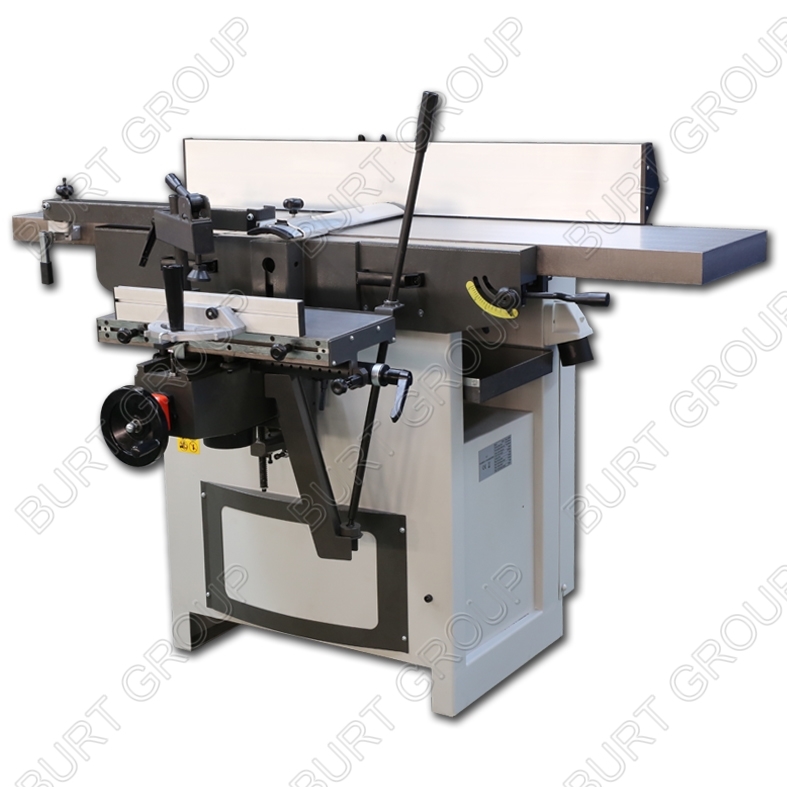

C3-310S

12" PLANER & THICKNESS ONE PIECE SWING UP TABLE STYLE 3000W WITH MORTICER DEVICE
Main Features

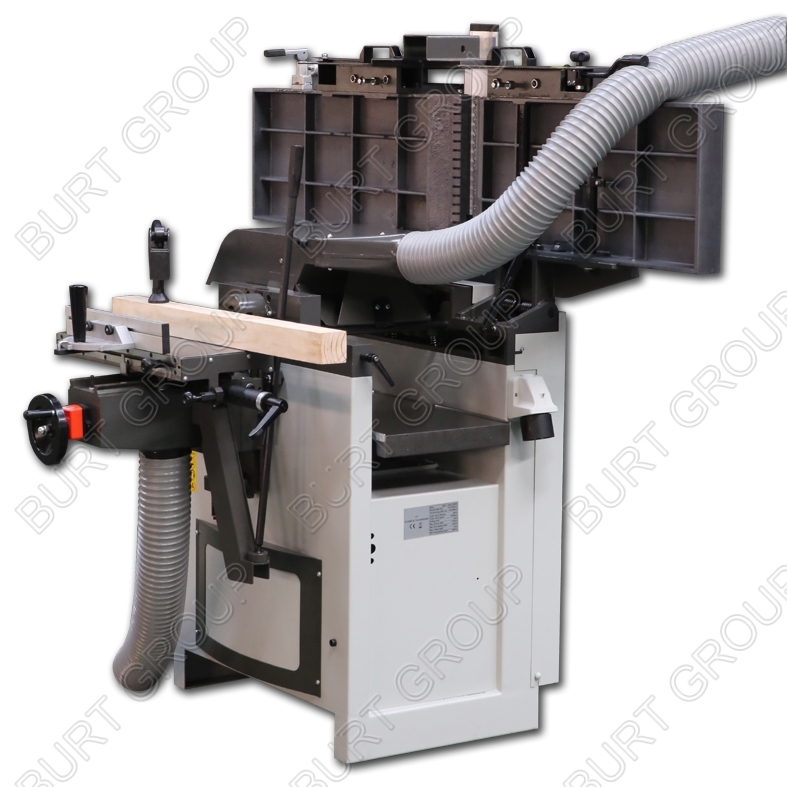

* New series Planer Thicknesser with Parallel Table Lift

* Fast and easy change over from Planing to thicknessing for improved work flow.
* Fitted with super high quality HSS blades as standard

Description Video Documents

01)   Motor: 3,000W

02)   Planing table size: 1600x310mm

03)   Thicknessing table size: 750x310mm
04)   Cutter block diameter: 95mm
05)   Feeding block diameter: 42mm
06)   Cutting knives: four
07)   Fence tilt: 0 to 45 degrees
08)   Dust chute diameter: 100mm
09)   Maximum planing width: 310mm
10)   Maximum thicknessing width: 310mm
11)   Maximum cutting depth: 5mm
12)   Maximum thicknessing height: 220mm
13)   Cutter block speed: 4,300rpm
14)   Feed speed: 6m/min

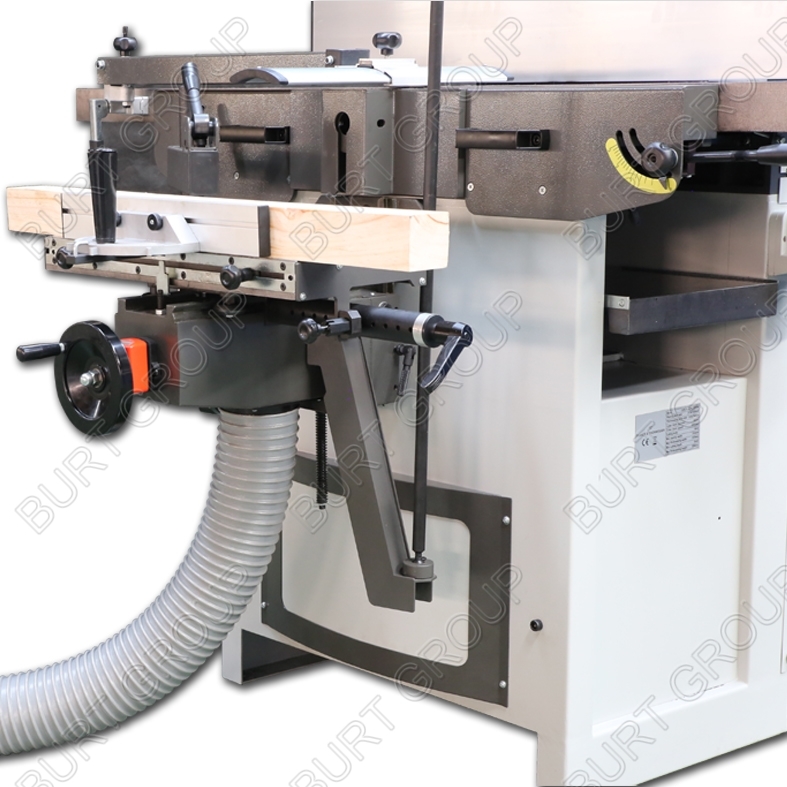

15)   Mortising chisel capacity: 16mm

16)   Mortising Vertical stroke: 150mm
17)   Mortising Table travel up/down: 140mm
18)   Mortising Lateral stroke: 309mm
19)   Mortising Table szie: 160x368mm

20)   Packing size: 1670x680x1040mm
21)   Net/gross weight: 341/401kgs
22)   Units per 20-foot container: 24


Optional Fitting

* With front Decorative cover readout optional.

* With Mechanical Digital Display for thicknessing height optional.

* With Spiral cutter  and Cast Iron Handwheel as optional fitting.
