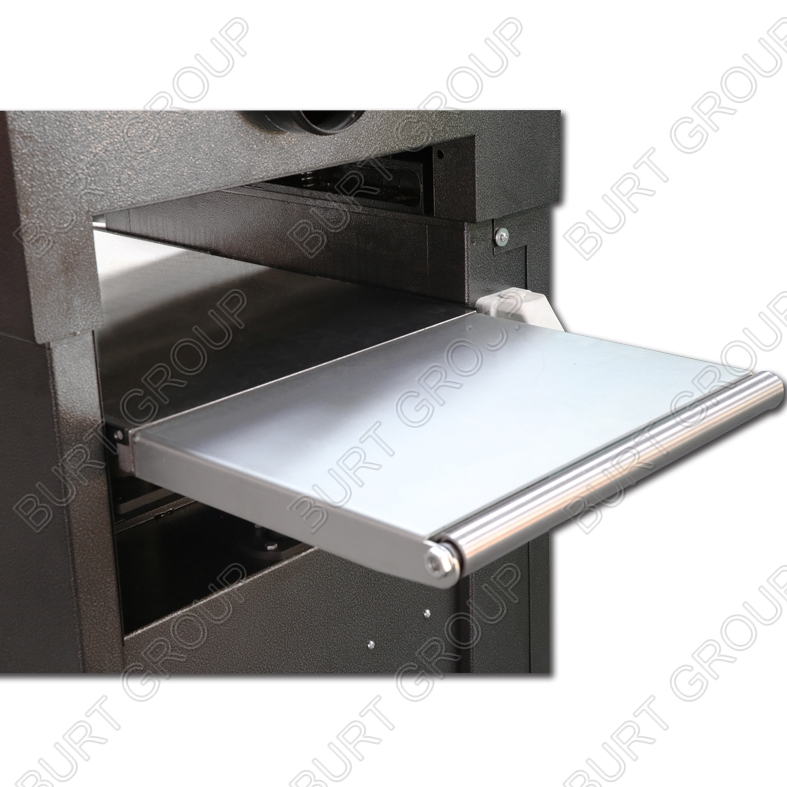

* Fitted with both short and long extension tables;

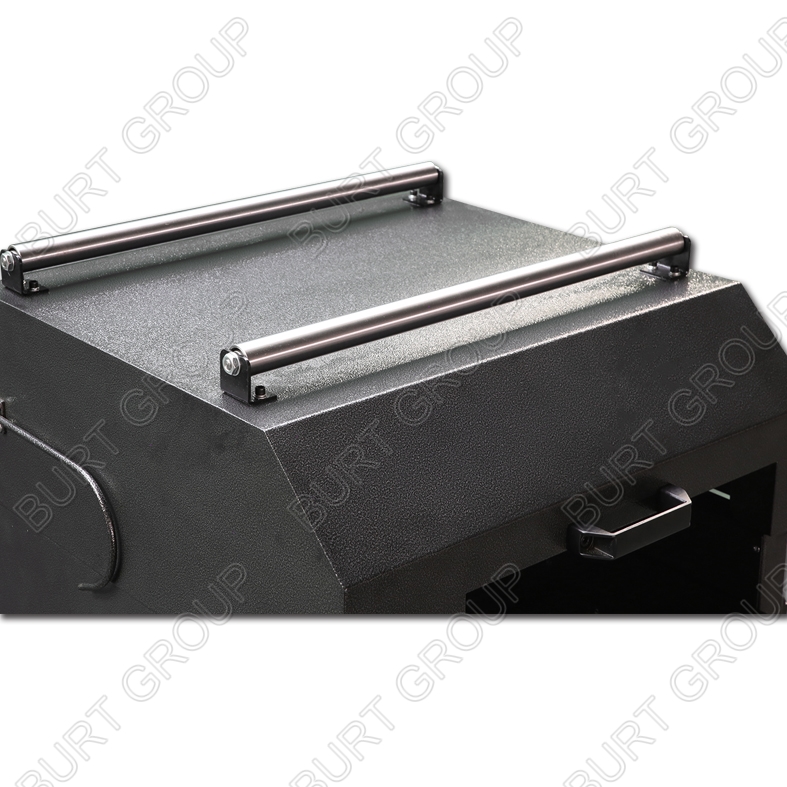

* 2 rollers on top for workpiece passing on

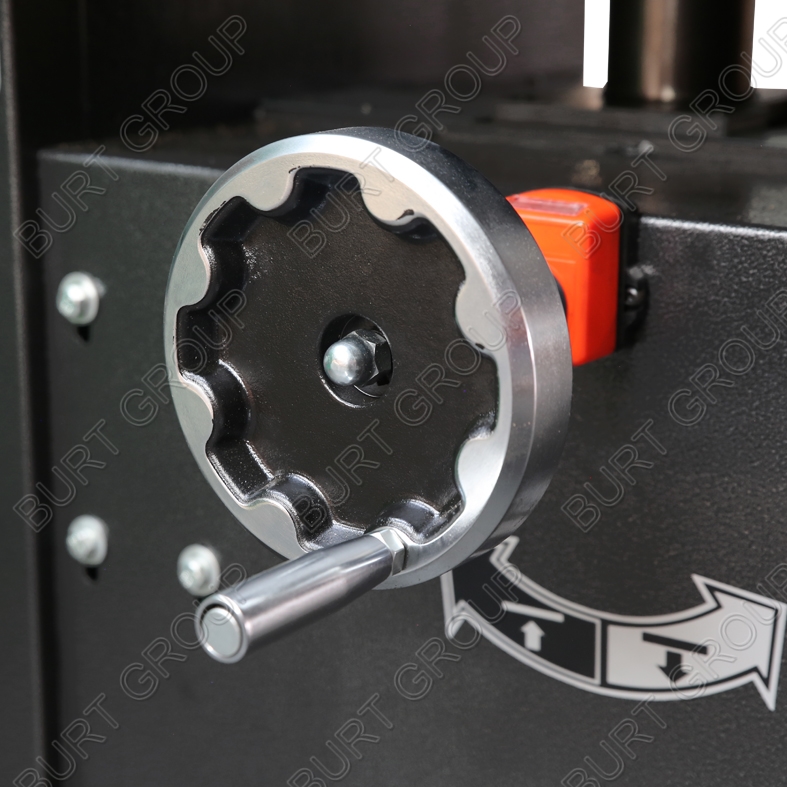

* Digital readout on handwheel fitted as standard
* 3KW motor supplied as standard, bigger 3.5KW and 4KW motor for option

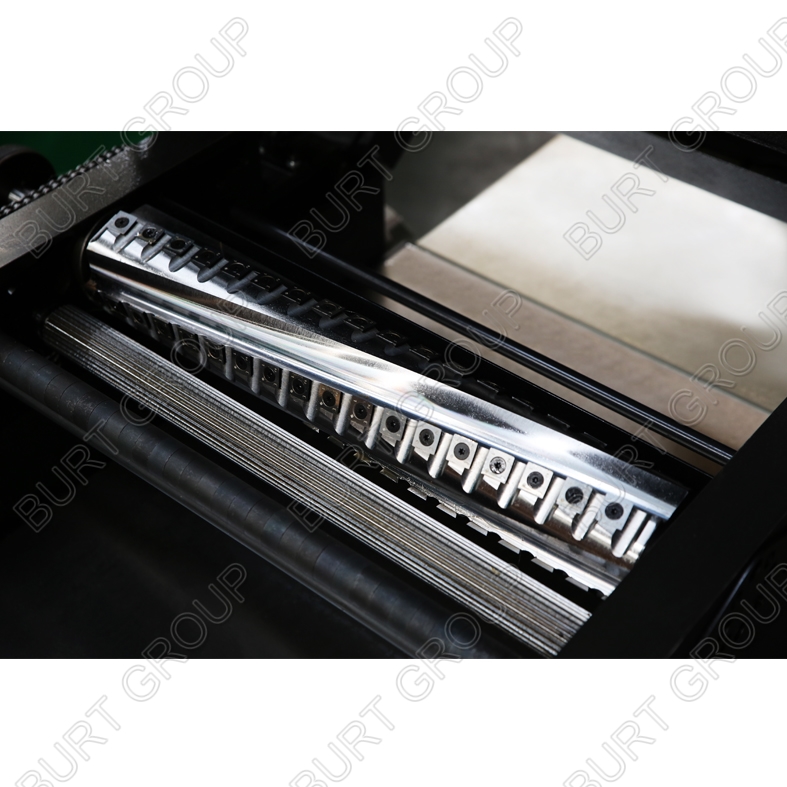

* Cast iron handle and Spiral cutter as highly configured options
01）Motor power (W): 3KW
02） Motor speed (rpm): 2850
03） Cutter block speed(rpm): 4500
04） Number of cutting knives: 3
05） Cutter block diameter(mm) : 75
06） Feeding block diameter(mm) :32
07） Thicknessing table size(mm) :600x408
08） Max. thicknessing width(mm) :408
09） Max. thicknessing depth(mm) :4.5
10） Feed speed (m/min):5.4
11） Max. thicknessing height(mm): 230
12） Dust chute diameter( thicknesser) (mm) : 100
13） Packing size(mm): 870x730x1120
14） Weight(kgs): 159
15） 20'/40'container: 32/64 units
* Cast iron handle and Spiral cutter as highly configured options
