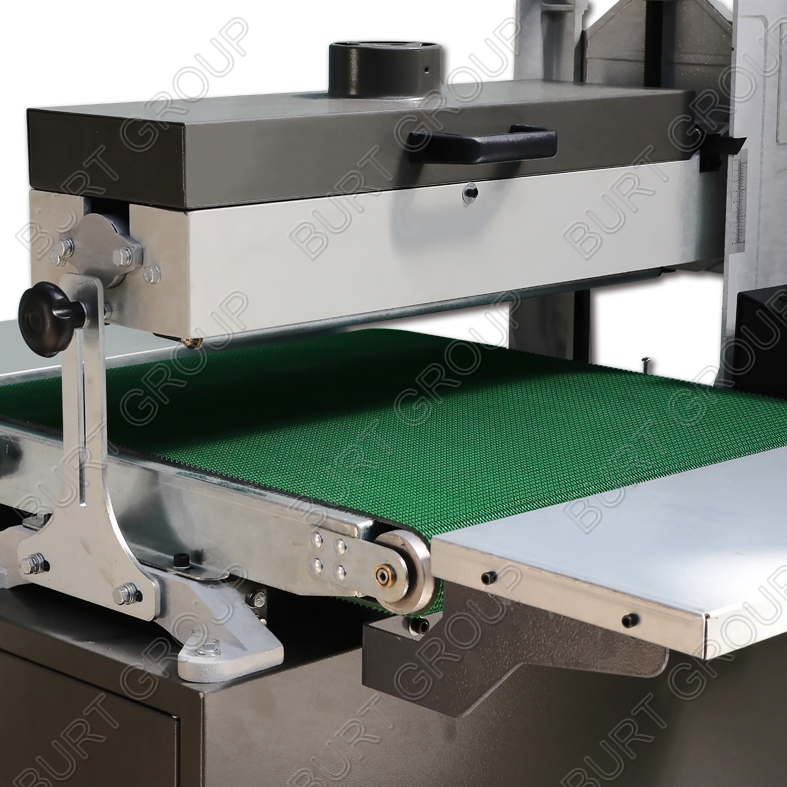

* Heavy duty Rubber Conveyor Belt
* 110V Conveyor feeding motor

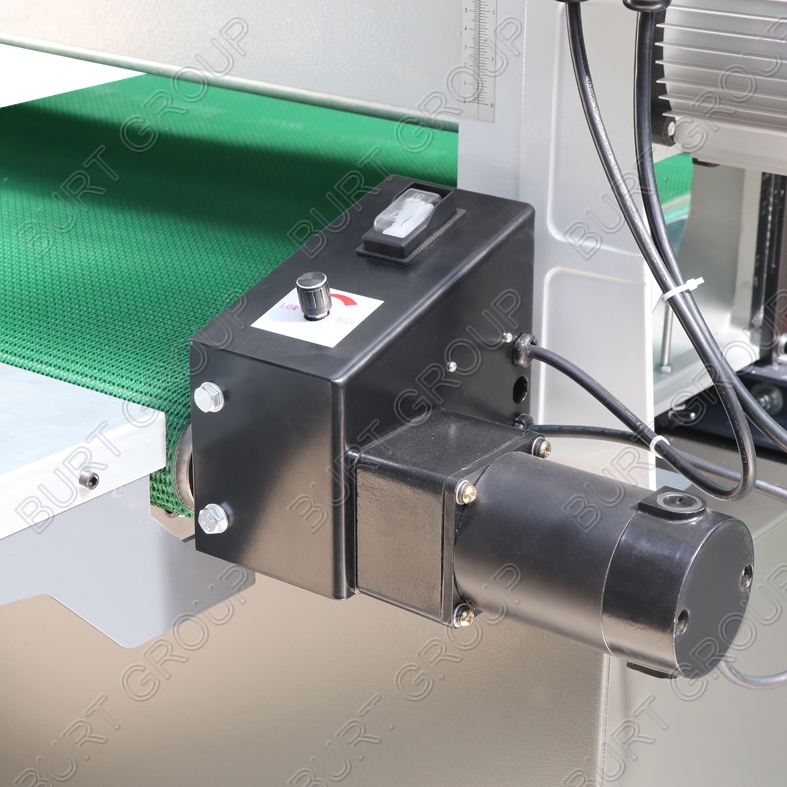

* Variable speed conveyor belt controled by PC board with load-sensing technology

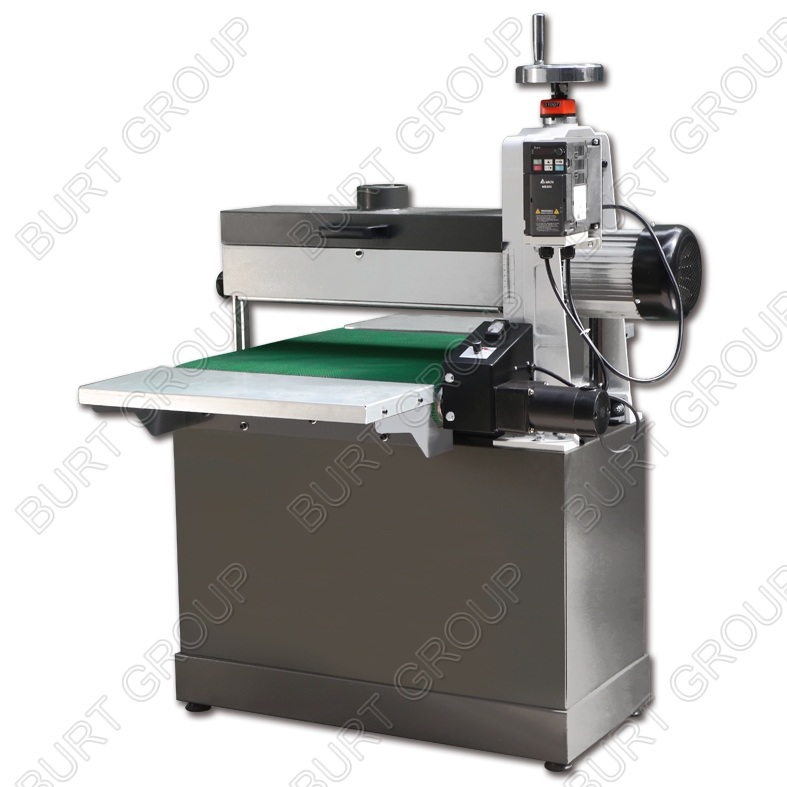

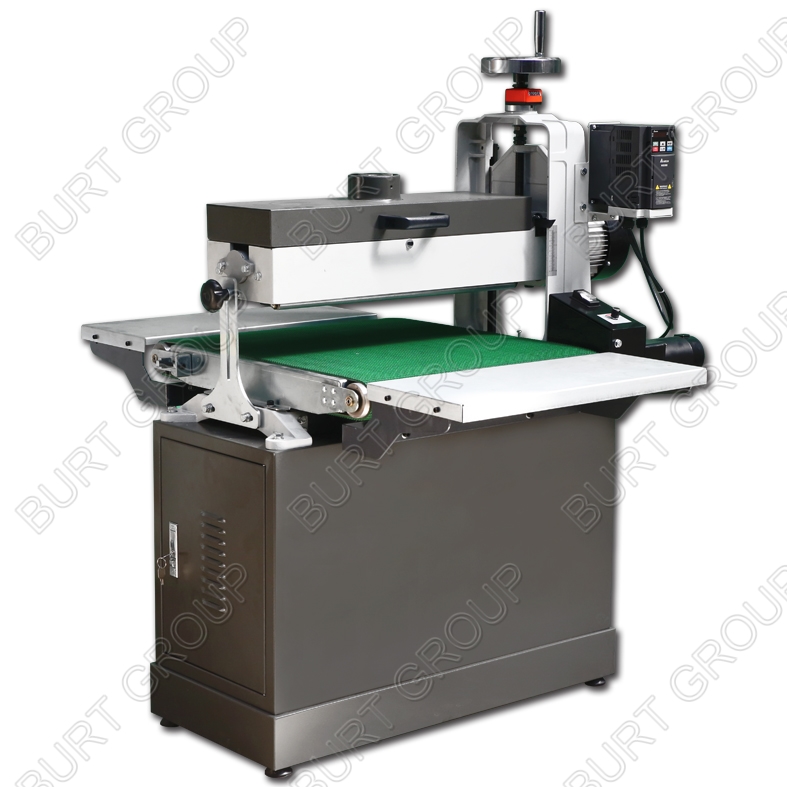

* Single drum sander for finishing boards and panels

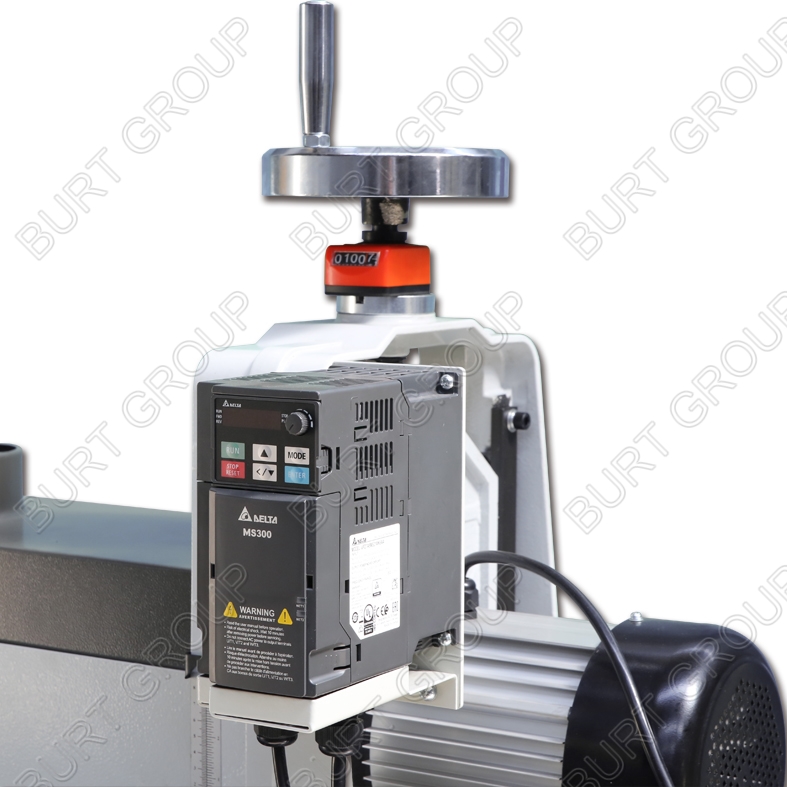

* Updated Taiwan Delta Inverter driven drum motor giving variable speeds and provides a further control of the finish and also allows the use of the optional sainding brushes.
* Deluxe heavy duty cast iron handwheel as standard
* Fully adjustable conveyor table for accurate sanding
* Floor closed stand supplied as standard
1)Motor power (W): 1500
2)Feeding motor power (W): 120
3)Motor speed (rpm): 0-1800
4)Sanding belt roller speed(rpm): 0-1800
5)Main Table size (mm): 592X530
6)Auxiliary table size (mm): 582X245 *2PCS
7)Sanding belt length (mm): 3280
8)Sanding belt width (mm): 78

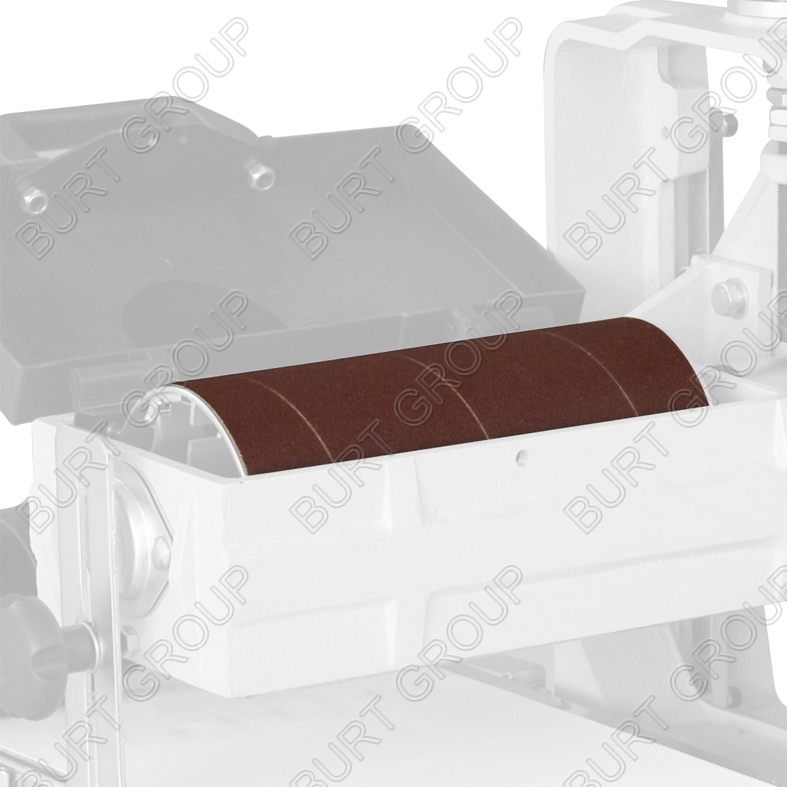

9)Sanding roller diameter x length (mm): 132X565
10)Max sanding width (mm): 560
11)Max workpiece height (mm): 95
12)Min workpiece height (mm): 5
13)Conveyor feeding speed (m/sec): 0~7.5
14)Dust port diameter (mm): 100
15)Packing size (mm): 1100X770X1380
16)N.G. weight (kgs): 155/190
17)Units/20' container: 14
Optional Accessories:

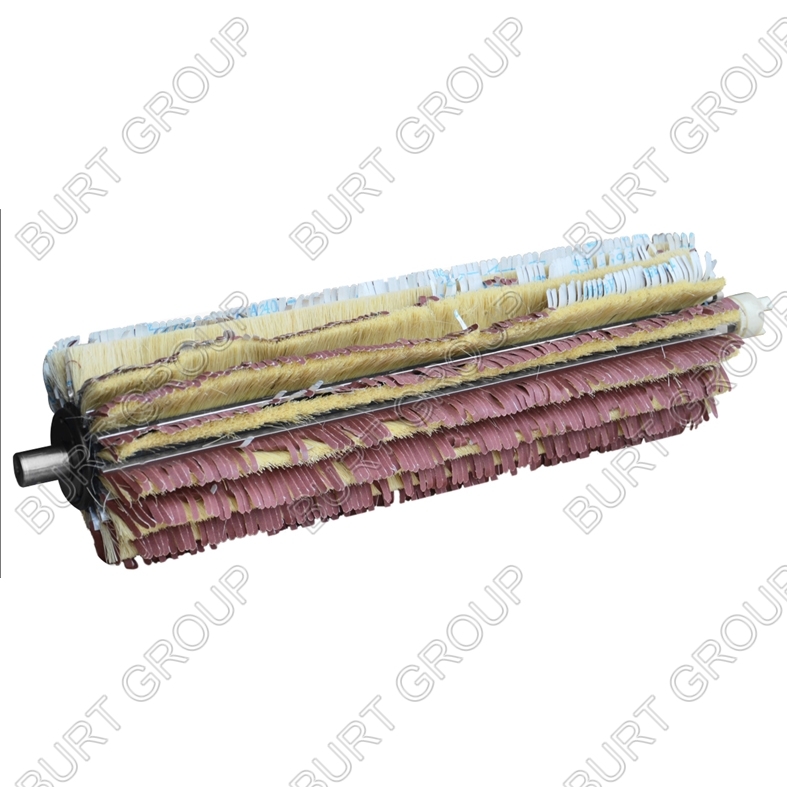

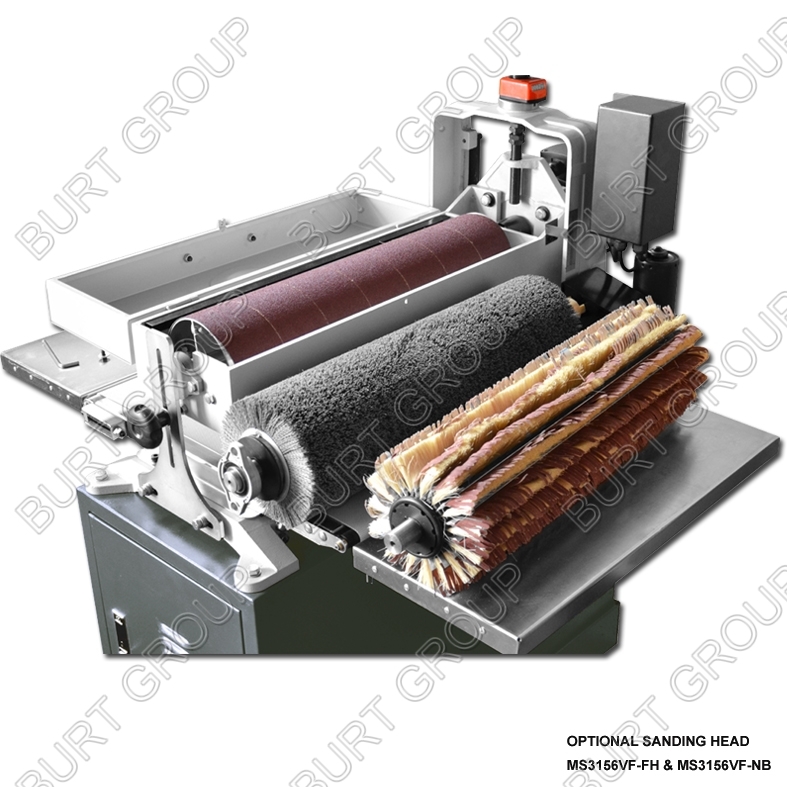

MM3156VF-FH Flatter type sanding head for MS3156VF + MS3156C/400II DRUM SANDER

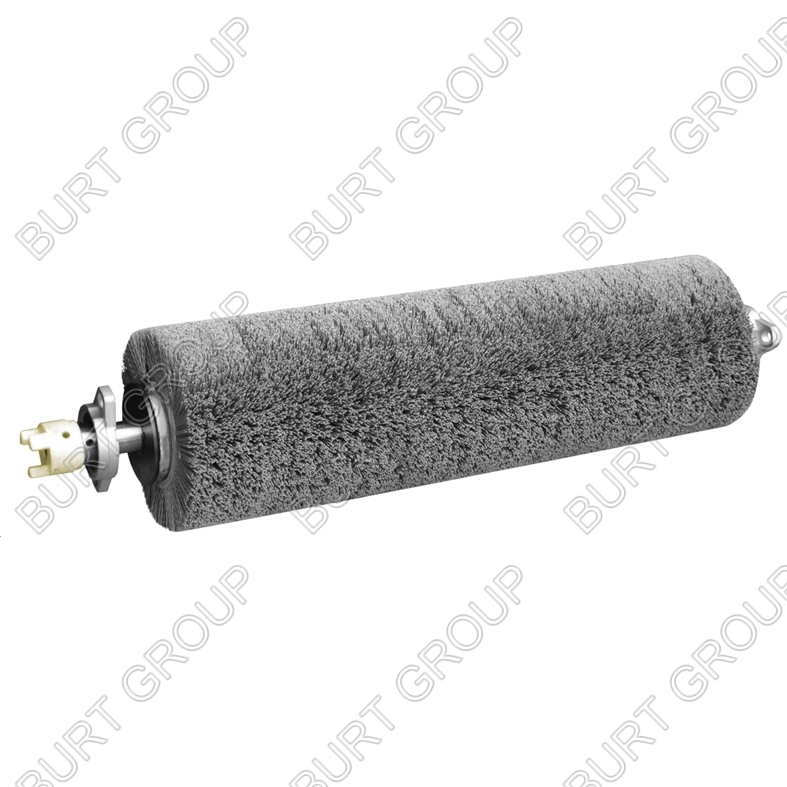

MM3156VF-NB silicon carbide sanding brushes FOR MS3156VF + MS3156C/400II DRUM SANDER

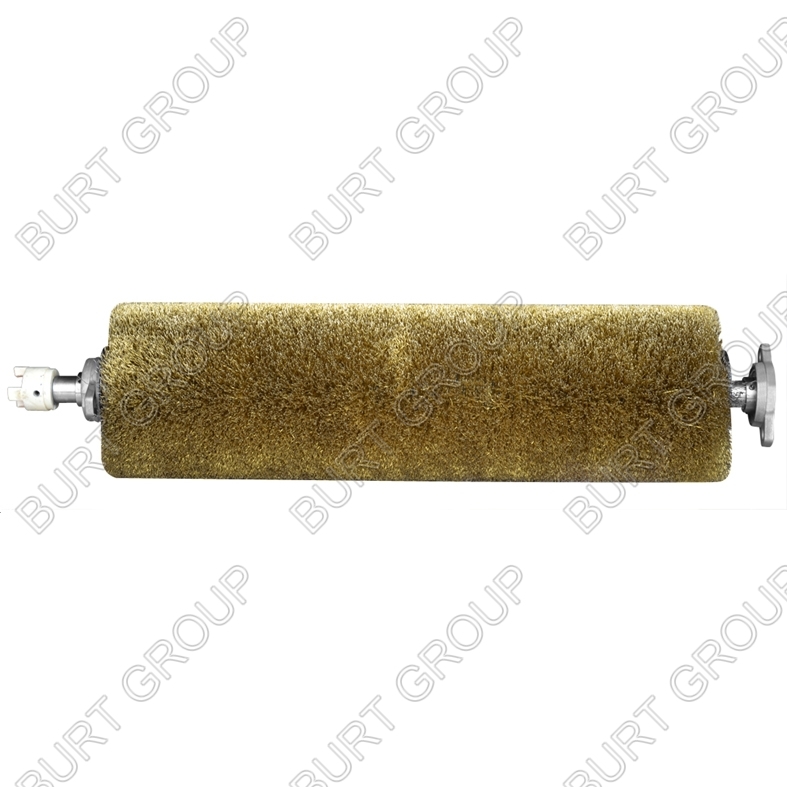

MM3156VF-WB wire brush FOR MS3156VF + MS3156C/400II DRUM SANDER
