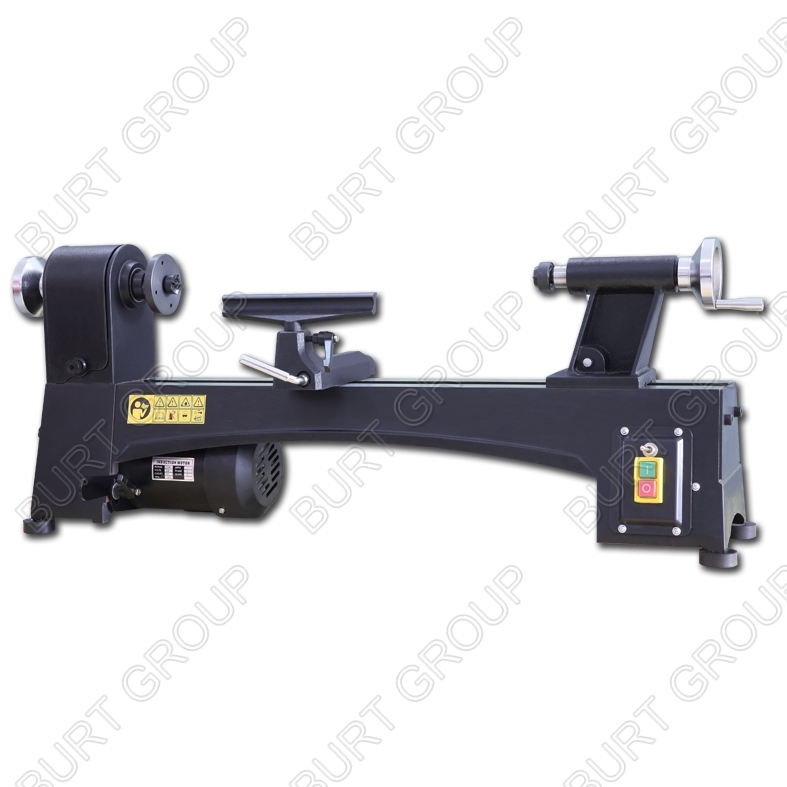

12X20" & 12X24" WOOD LATHE 6 SPEEDS 550W
Main Features
Description Video Documents

01)    Motor: 550W (370W output)

02)    No. of Speed: 6

03)    Spindle Speed:500,660,950,1350,2050,3000(230V);


04)    Swing Over Bed: 305mm(12")

05)    Distance Between Centers: 508MM(20") for MC1220X; 610mm(24") for MC1224X

06)    Drive Spindle thread: 1"x8TPI or M33X3.5
07)    Headstock and Tailstock Taper:MT2#
08)    Face Plate: 80mm(3")
09)    Tool Rest: 200mm(8")

10)    Packing Size: 915X450X285mm for MC1220X ; 995X450X285mm for MC1224X

11)    N/G weight: 35/37kgs for MC1220X ; 39/42kgs for MC1224X
12)    Units/20'container:224 for MC1220X; 212 for MC1224X

** Optional Extension bed 700mm/770mm with Model NO.:MC1020X-EX700/MC1020X-EX770
