CF315/310Q-2600

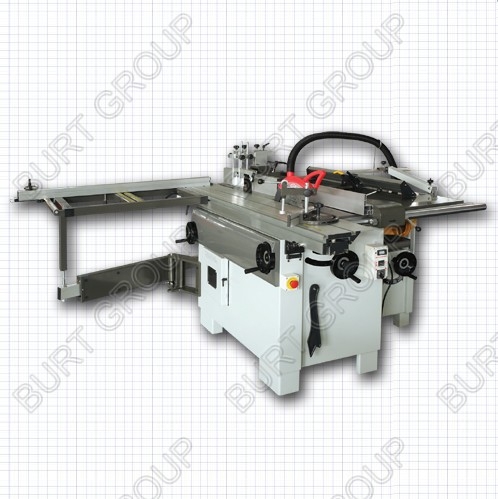

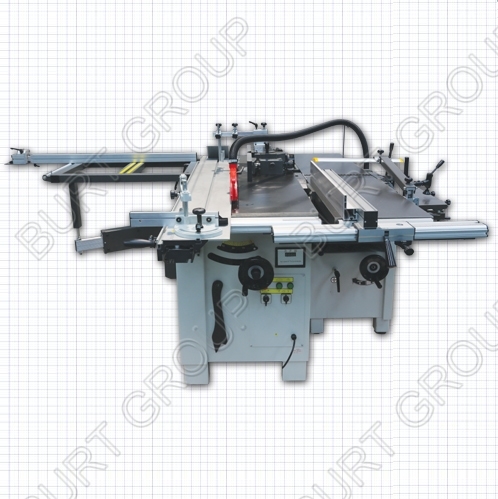

CF315/310Q-2600 UNIVERSAL COMBINED MACHINE PM315/30T + C3-310Q 12" PLANER & THICKNESSOR+MORTISING DEVICE
Main Features

* With different length of sliding table available: 1600mm,1800mm,2000mm,2600mm and with different model NO. accordingly:CF315/310Q-1600, CF315/310Q-1800, CF315/310Q-2000, CF315/310Q-2600

Cast iron handwheels are supplied as optional


Description Video Documents

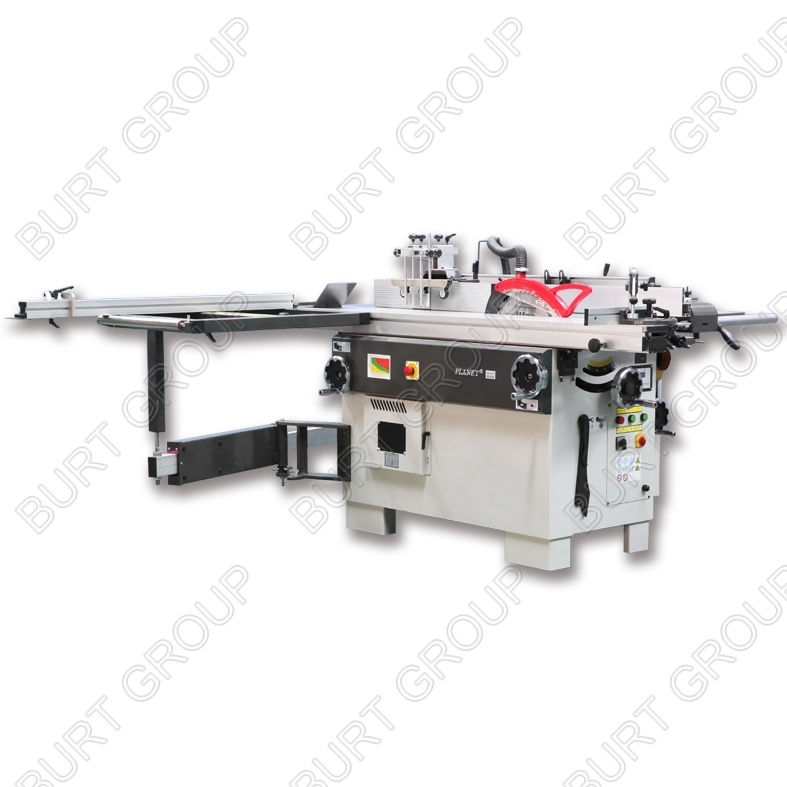

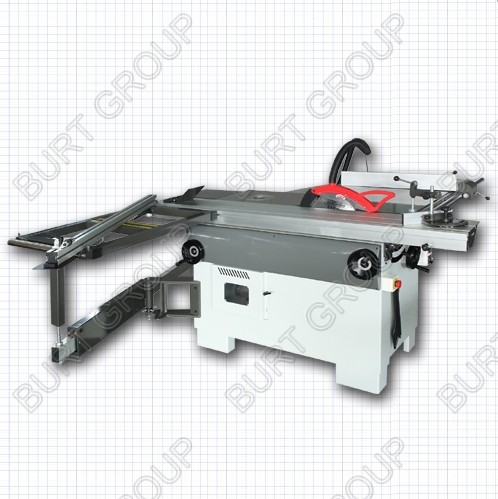

PM315/30T series is the spindle moulder + panel saw with construction similar to our WS1000TA spindle moulder + MJ12-2000II panel saw, and it could be in different lenght sliding table from 1600mm to 2600mm.

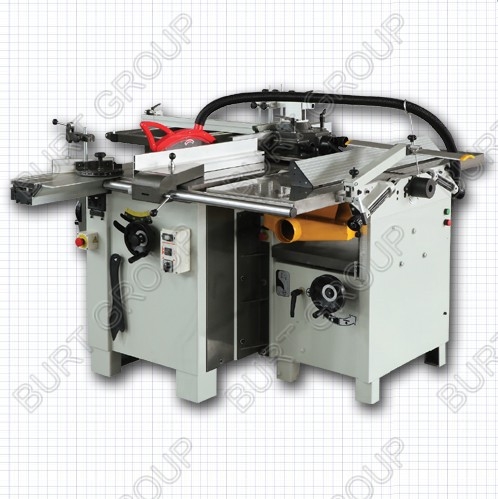

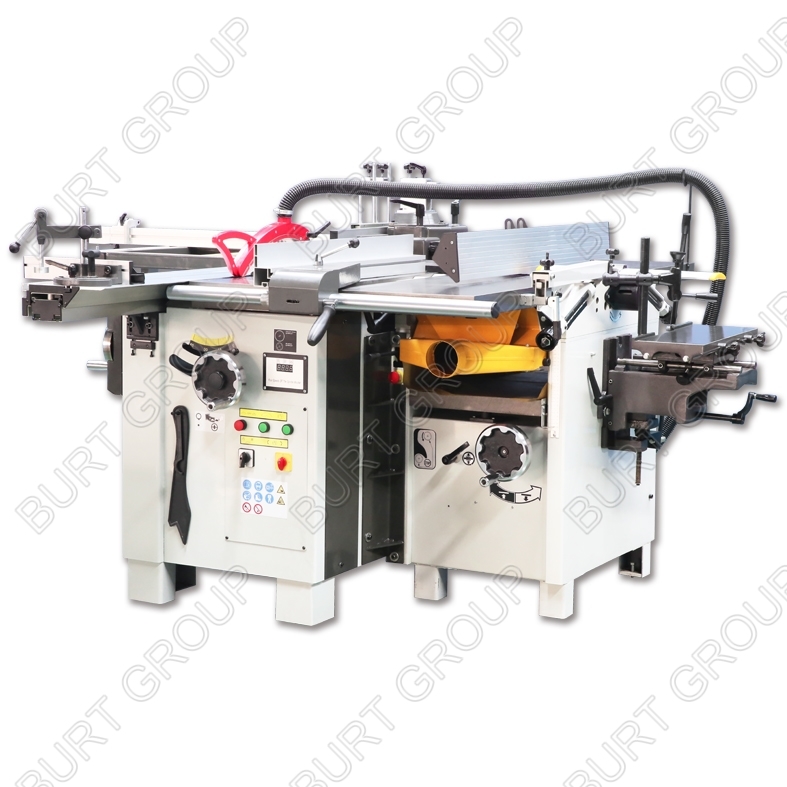

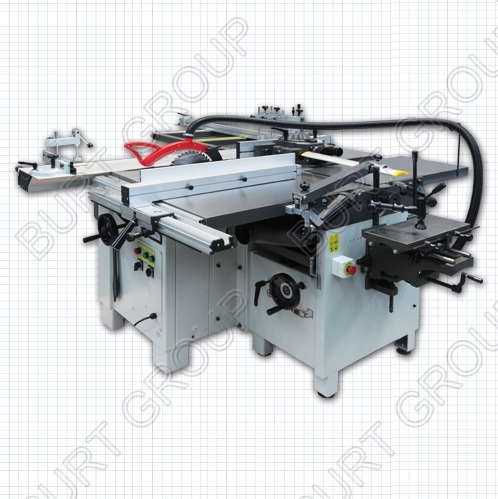

CF315 series  is our new combination machine based on the above PM315/30T plus our different planer & thicknessors such as with C3-310 12" named CF315/310, with C3-410Q 16" named CF315/410 etc.

01)   Panel saw motor: 230V/400~,   50Hz   3000W
02)   Spindle moulder motor: 230V/400~,   50Hz   2800W
03) Planer & Thicknessor motor: 230V/400~,   50Hz   2200W
04) Packing size:2300x1610x1105mm with 2M sliding table

12"PLANNER AND THICKNESSER:
1) Motor: 2200W
2) Planning table size:310x1285mm
3) Thicknessing table size:310x600mm
4) Cutter block diameter:75mm
5) Feeding block diameter:32mm
6) Cutting knife (psc):3
7) Fence tilt:0~45
8) Max cutting depth:2.5mm
9) Max thicknessing heigh:180mm
10)Cutting block speed-50hz:4000
11)Cutting block speed-60hz:4800
12)Feeding speed-50HZ:4.8m/min
13)Feeding speed-60HZ:5.8m/min

SAWBENCH
1) Main blade size:Ф315xФ30x3mm
2) Main blade speed:4500r/min
3) Scoring blade size:Ф90xФ20x3mm
4) Scoring blade speed:8500r/min
5) Max cut depth  90°:100mm
6)  Max cut depth  45°:80mm
7)  Major table size:1650X380mm
8)  Sliding panel size:270x2600mm
9)  Cross cut table size:880x580mm
10)Cross cut fence:1200~2200mm
11)Max cutting width:620mm
12)Max cutting length:2600mm

SPINDLE MOULDER:
1) Spindle shaft diameter: Ф30mm
2) Spindle travel:100mm
3) spindle speed:1800rpm/3000rpm/6000rpm/9000rpm
4) Table size:1650X380mm
5) Max tool diameter:Ф200mm
6) Fence tilt: 45°-90°
7)  Vacuum port diameter: Ф100mm

PACKING SIZE:1800X1550X1120mm;  2660X320X250mm
N/G WEIGHT: 549/710kgs
