DT4825

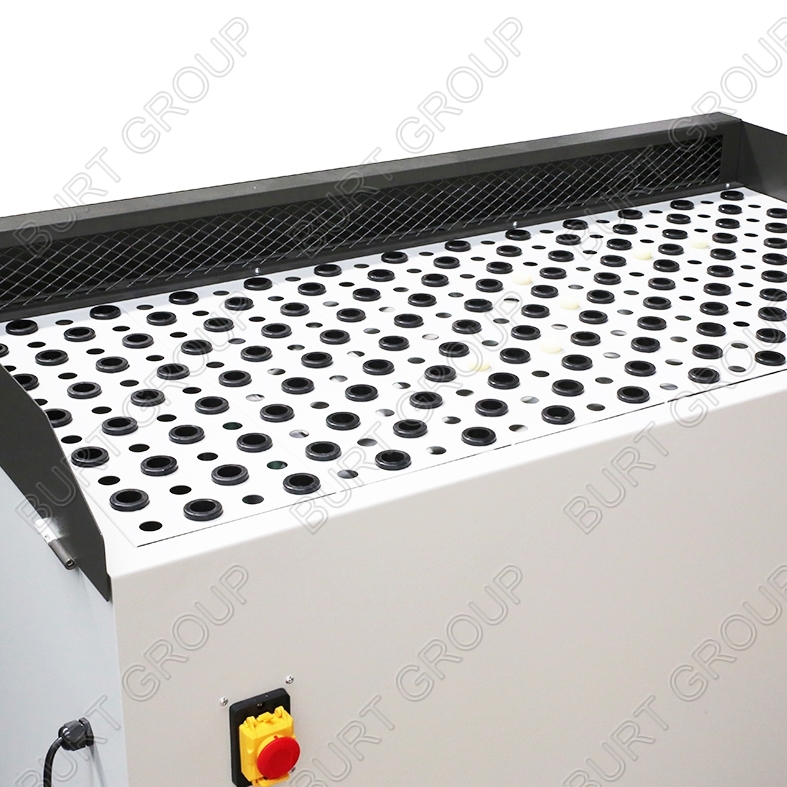

DT4825 DOWNDRAFT TABLE
Main Features

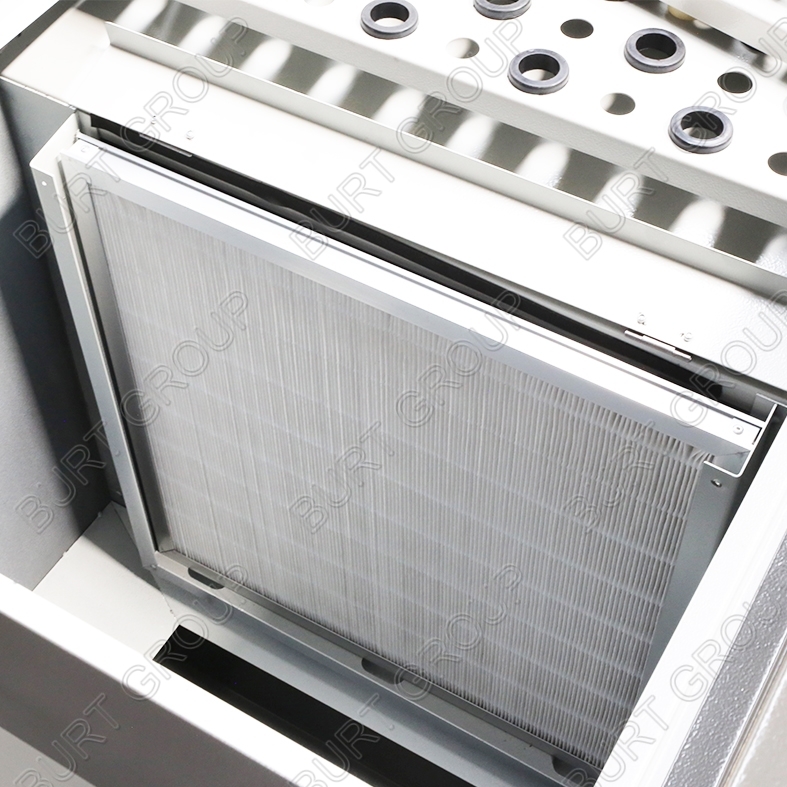

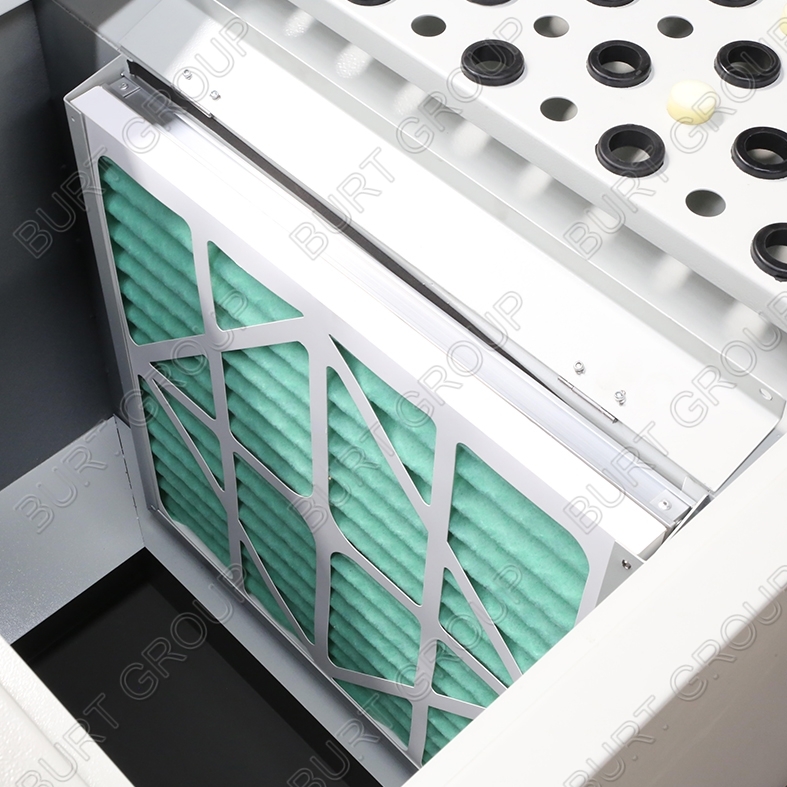

* Two levels filter G4 and H13.
* Large amount of air flow from air intake.
* Wood dust could be guided to the collection tray owing to the filter material perpendicular to the table and the splitter on the top of the fans.
* Dust collection tray could be easily slid out for emptying.
* Three height-adjustable, retractable and quick-disassembled baffles.
* Enhanced sheet metal's strengthening and feet for forklift use.


Description Video Documents

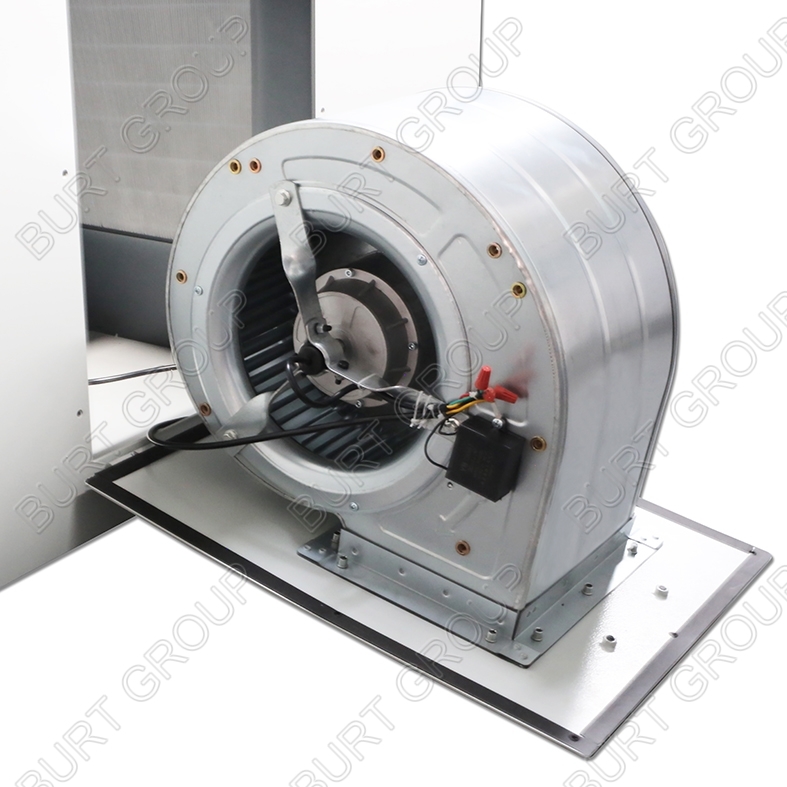

01)   Motor: 1.5HP
02)   Motor speed: 1400RPM
03)   Air flow: 3800m3/H
04)   Filter level: G4+H13
05)   Filter particles: 0.3um
06)   Filter efficiency: 99.97%
07)   Working table size: 1236X600mm
08)   Height of working table: 830mm
09)   Machine size: 1306X760X930mm
10)   Net weight: 108KG
11)   Packing size: 1240X715X950mm
