Specifications:

1.Motor power (w):1500

2. Motor speed (rpm): Variable frequency speed control

3. Spindle speed (rpm)/50Hz: 0-1350; 0-3500

4. Spindle thread: M33X3.5 or others

5. Spindle and tailstock taper: MT2

6. Indexing Positions: 24

7. Forward/reversing function: Yes

8. Headstock turning angle: 0°60°90°120°180°

9. Tailstock quill travel(mm): 115 (4.53")

10. Distance between centers (mm): 610 (1020mm with extension bed)

11. Face plate diameter (mm): 152

12. Swing over bed (mm):460(18”)

13. Swing over tool rest (mm):355

14. Tool rest working width (mm):307(12")

15. Packing size (mm):1130*626*628

16.Net weight /Gross weight (kg):187/ 226

Main Features:

* Magnetic control box can be positioned where required

* Electronic Inverter Variable Speed Lathe with TAIWAN DELTA brand Inverter

* Two belt ratios for high torque when turning large diameters

* All cast iron construction for high stability and vibration free running

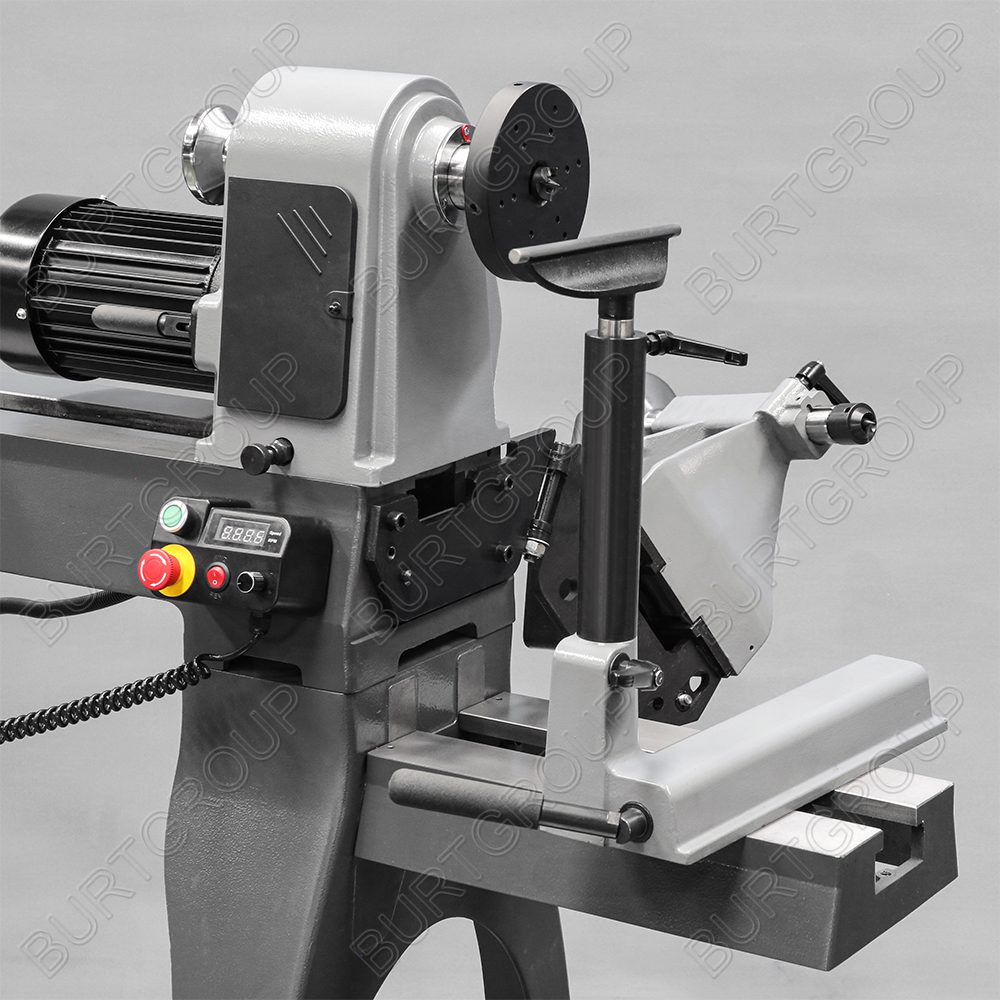

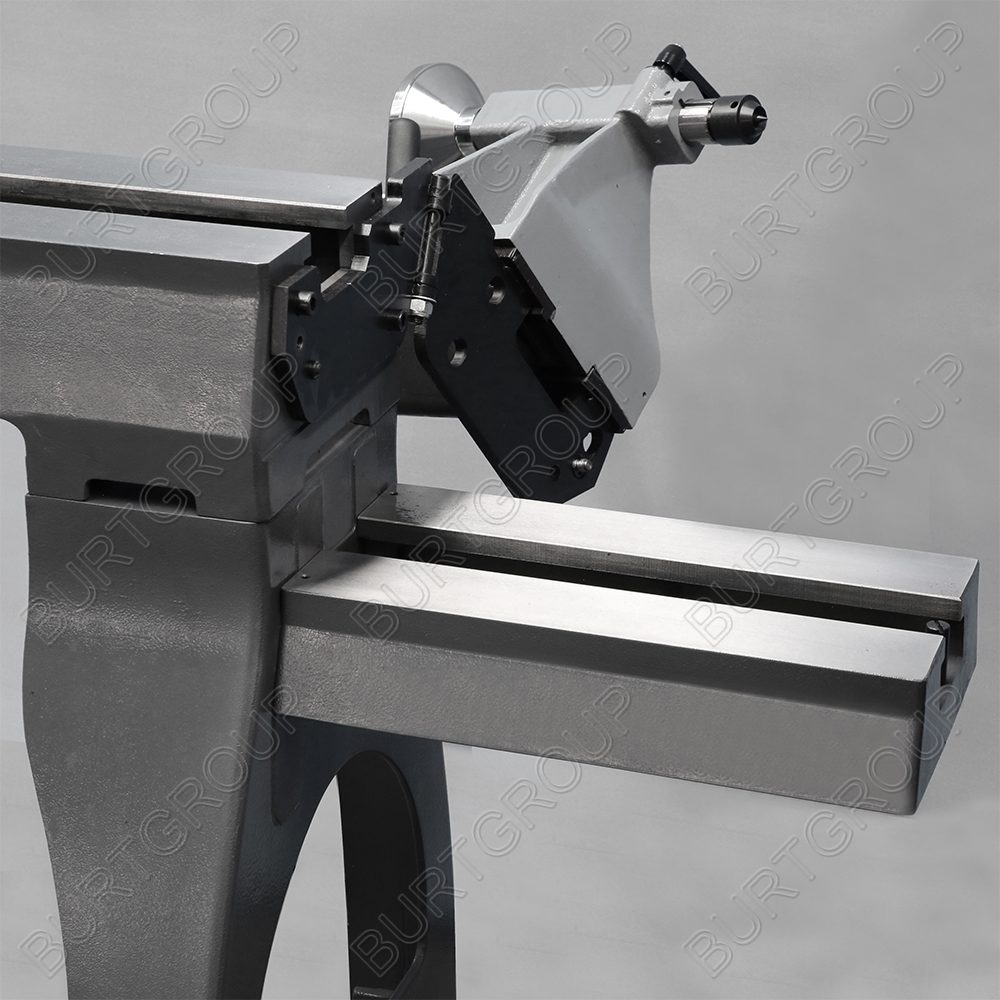

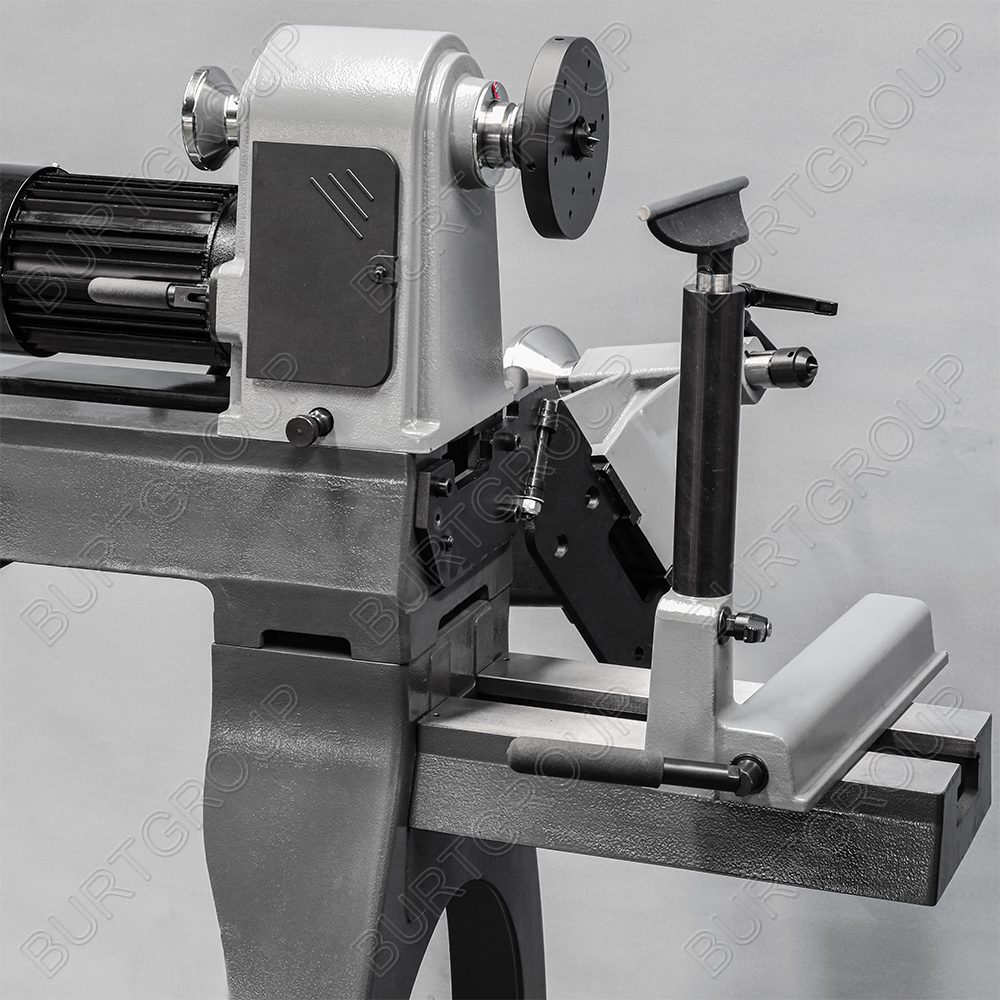

* Swing Tailstock for certain working conditions, such as hollowing or fitting extension bed on cast iron legs.

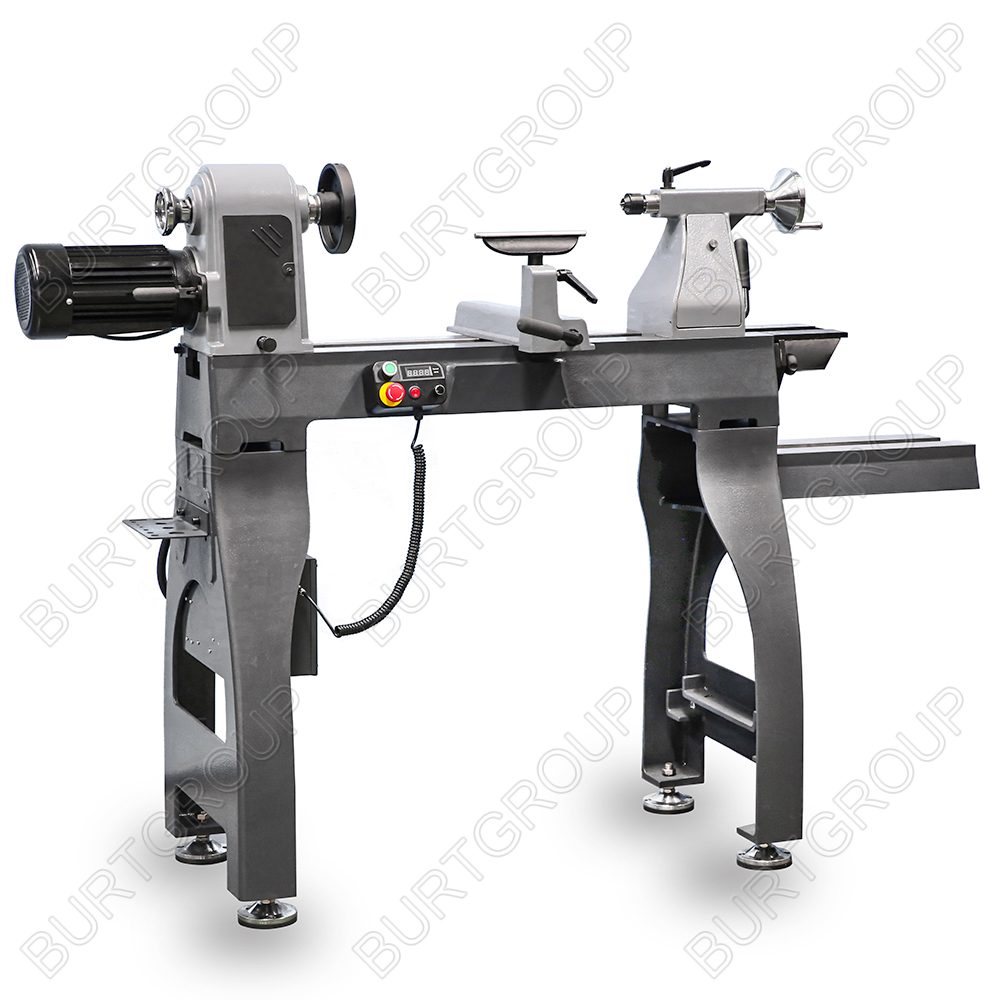

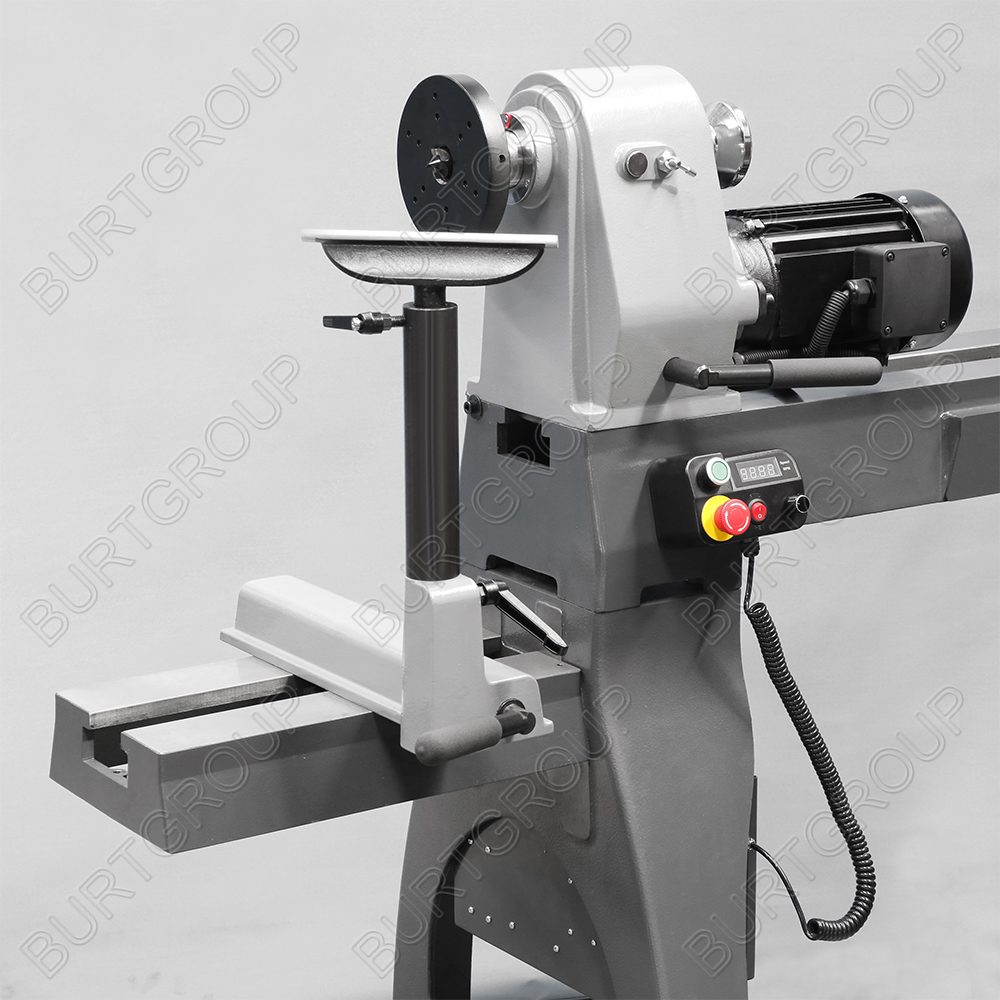

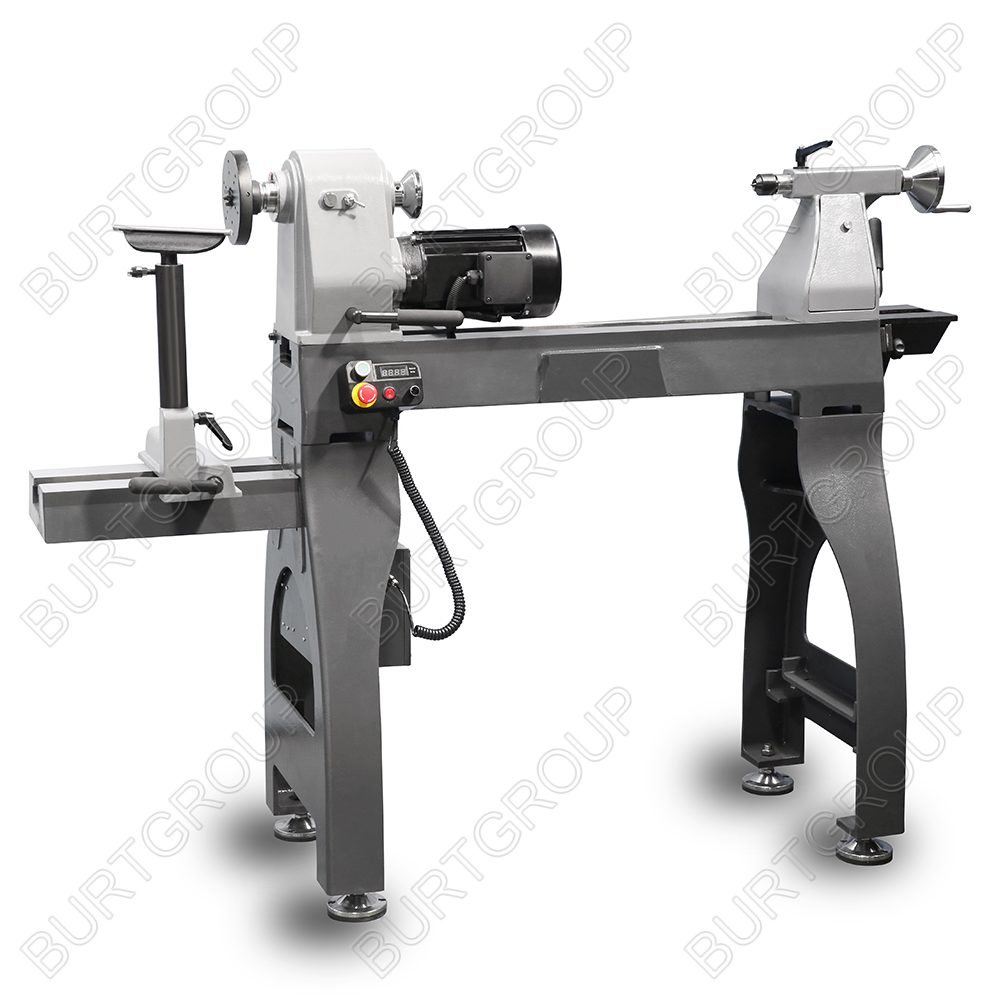

* Standard extension bed + tool rest extender. Extension bed can be installed into three places for long workpieces or outboard turning.

* 24 Indexing Positions Function

* With Forward/Reverse running function

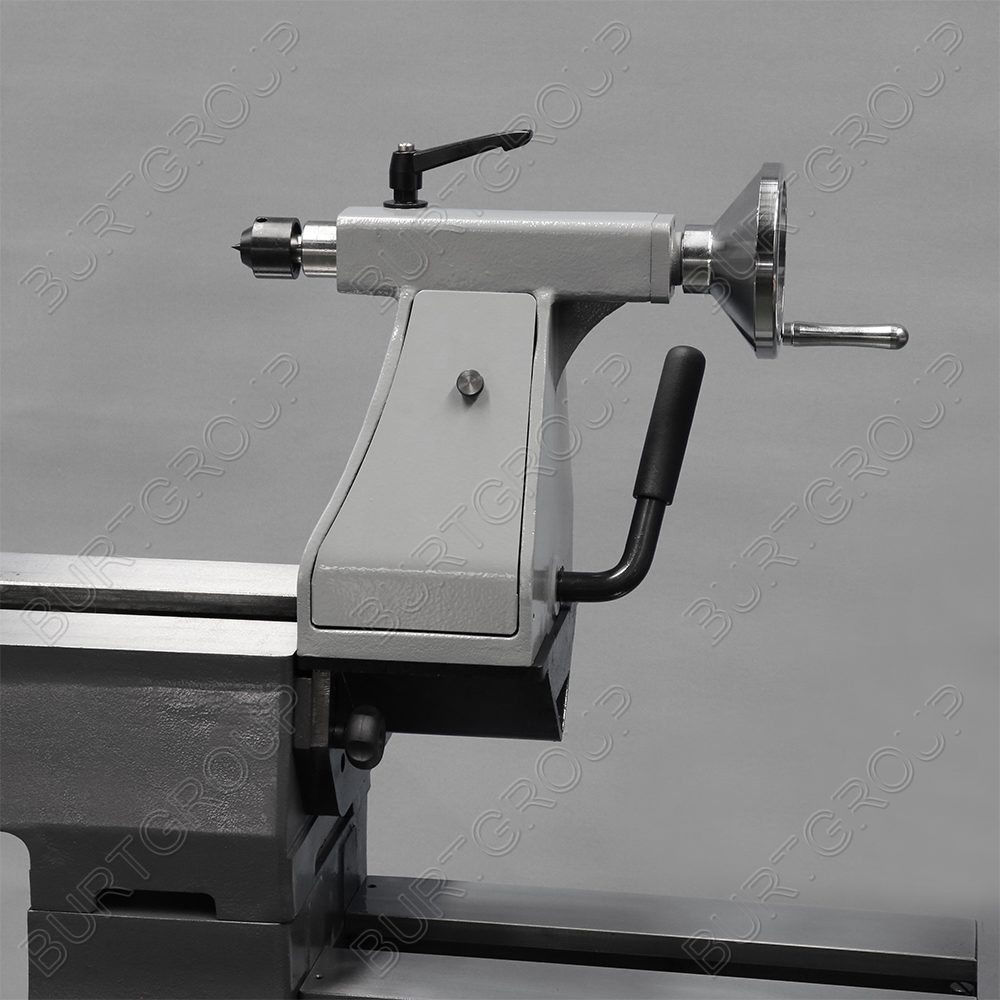

* Tailstock with storing space
