Main features:

* Electronic Inverter Variable Speed Lathe with TAIWAN DELTA brand Inverter

* Additional three machined surfaces to mount optional extension bed increases turning capabilities: The left and right bed end for increasing the working capacity and the bed front gives great access to turning bowl or platter edges and back surfaces.

* Two belt ratios for high torque when turning large diameters

* Digital speed display on headstock

* Quick belt change construction headstock

* All cast iron constuction for high stability and vibration free running

* Cast iron stand with provision for a shelf

* Headstock rotates for outboard turning

* 36 Indexing Positions Function

* With Forward/Reverse running function

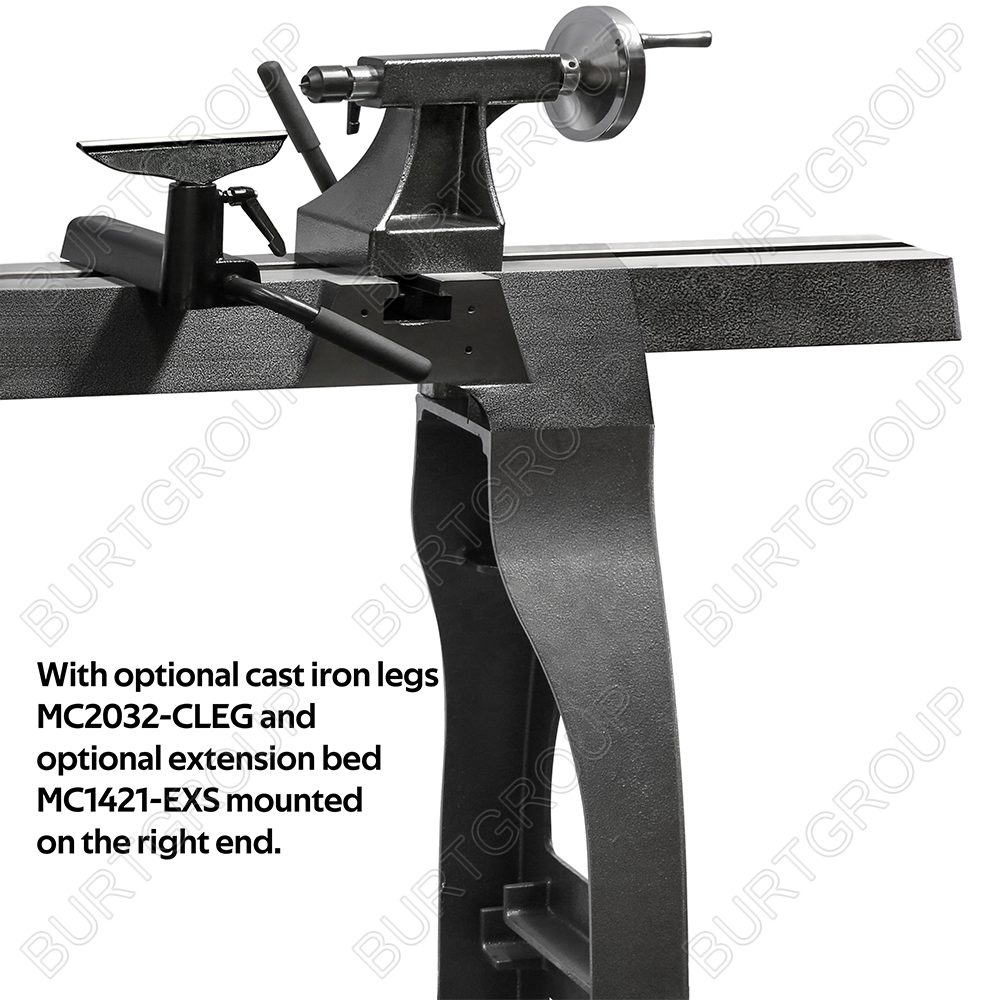

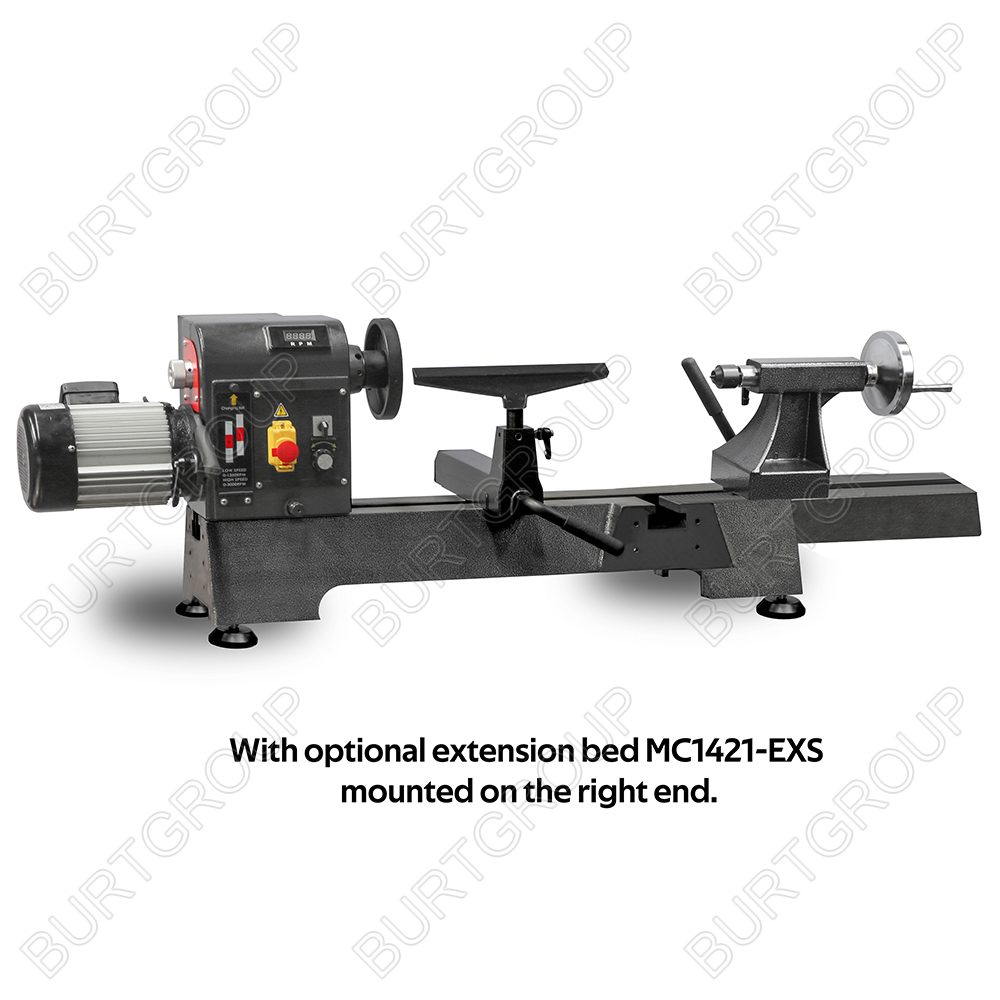

** Optional Extension bed 230mm (9 inch) Model NO.: MC1418-EX and 343mm (13.5 inch) Model NO.: MC1421-EXS

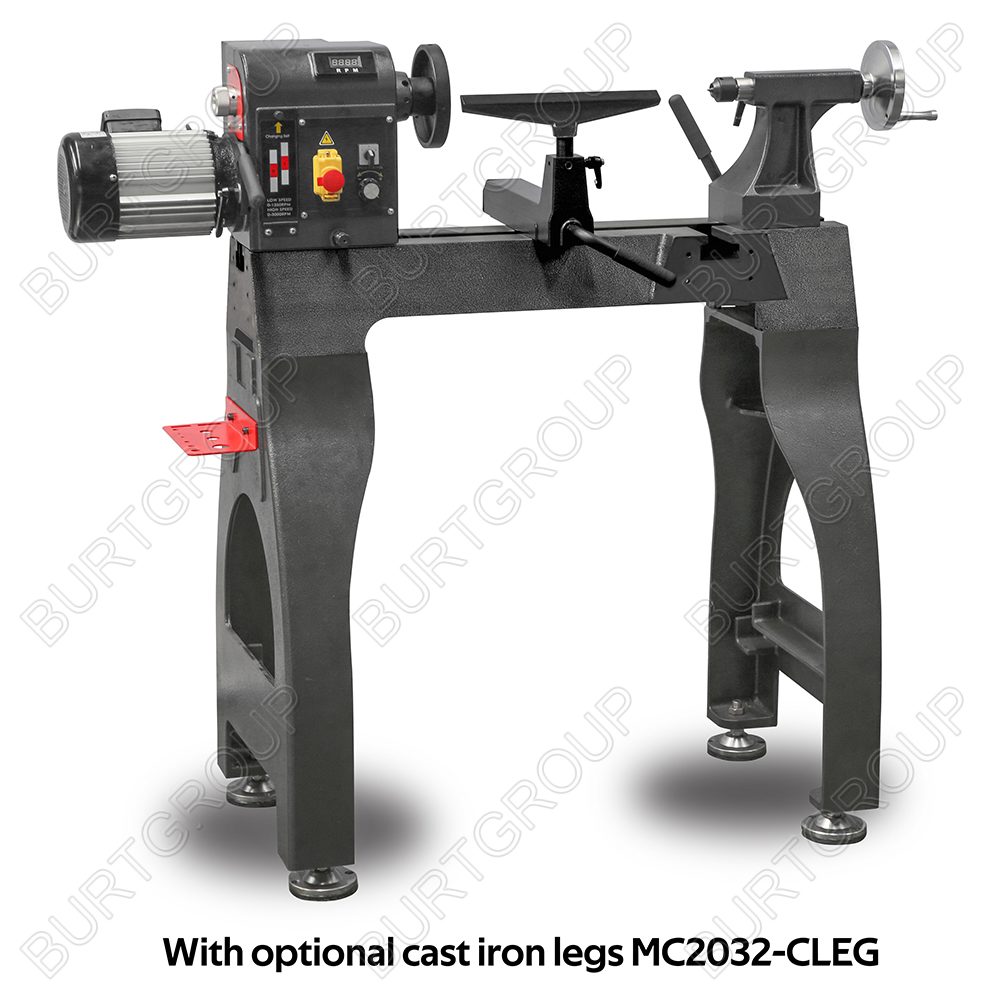

** Optional Cast Iron Leg Model NO.:MC2032-CLEG

01)    Description: 16"x18" bench wood lathe

02)    Motor(Input W): 1500W (with 1500W inverter)

03)    No. of Speed: Variable

04)    Spindle Speed: 100~1350rpm Low Speed, 220~3000rpm High Speed

05)    Swing Over Bed: 408mm(16")

06)    Distance Between Centers: 24.4" (620mm) or 47" (1200mm) with optional extension bed

07)    Drive Spindle: M33X3.5 or 1”8RH thread

08)    Headstock and Tailstock Taper:MT2#

09)    Face Plate: 152mm(6")

10)    Tool Rest: 300mm(12")

11)  Packing Size(mm): 1130X580X550

12)  NW/GW: 146/176KGS

13)  Units per 20-foot container:80 pcs
