01). Motor power (w):1400W（DC brushless）

02). Motor Running Direction: Forward & Reverse

03). Spindle speed (rpm): L:60-720/M:130-1700/H:300-3550

04). Spindle thread: M33X3.5 (others for optional)

05). Spindle and tailstock taper: MT2

06). Indexing Positions: 24 Positions

07). RAM Travel: 4"(100mm)

08). Distance between centers (mm) : 457 (18")

09). Face plate diameter (mm) : 104 (4”)

10). Swing over bed (mm) : 355 (14")

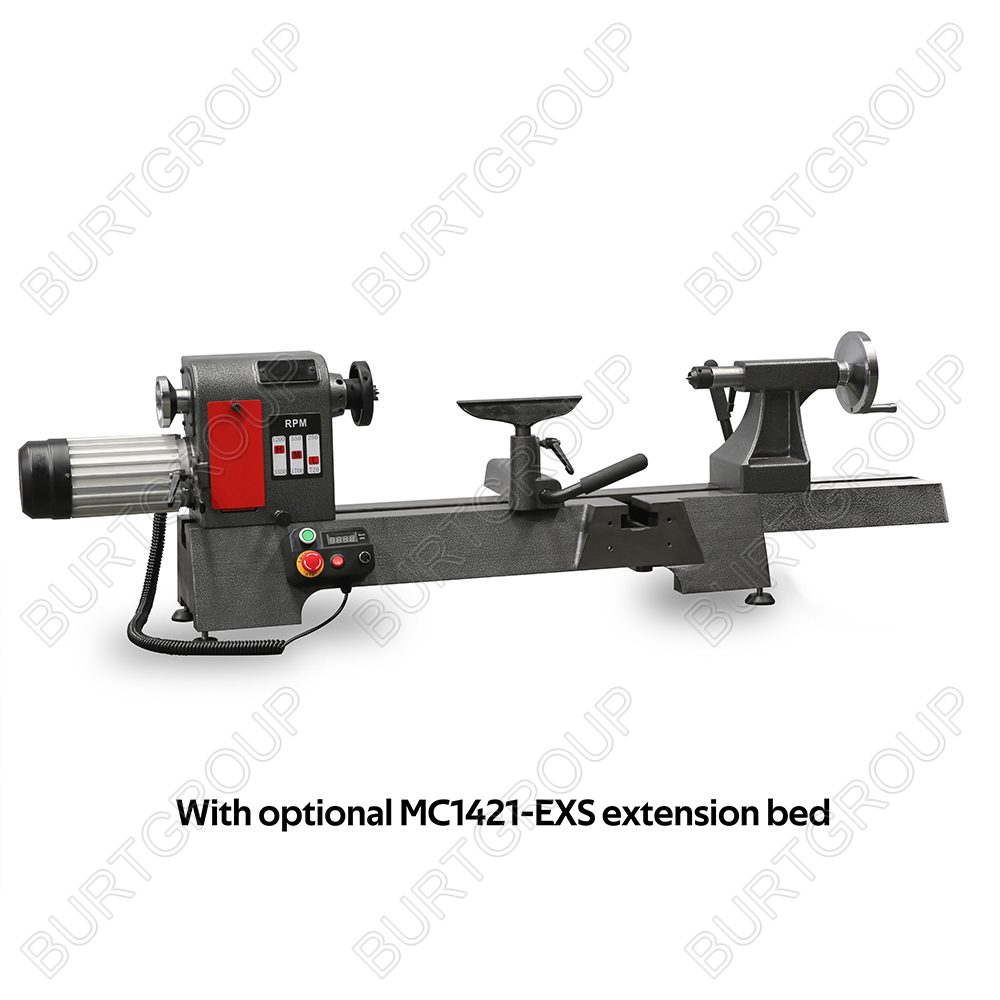

** Optional Extension bed 230mm (9 inch) Model NO.: MC1418-EX 343mm (13.5 inch) Model NO.: MC1421-EXS

** Optional Cast Iron Leg Model NO.:MC2032-CLEG

Main features:

* Constructed from cast iron and powerful 1200W universal DC motor with electronic speed control that provides full torque at all speeds.

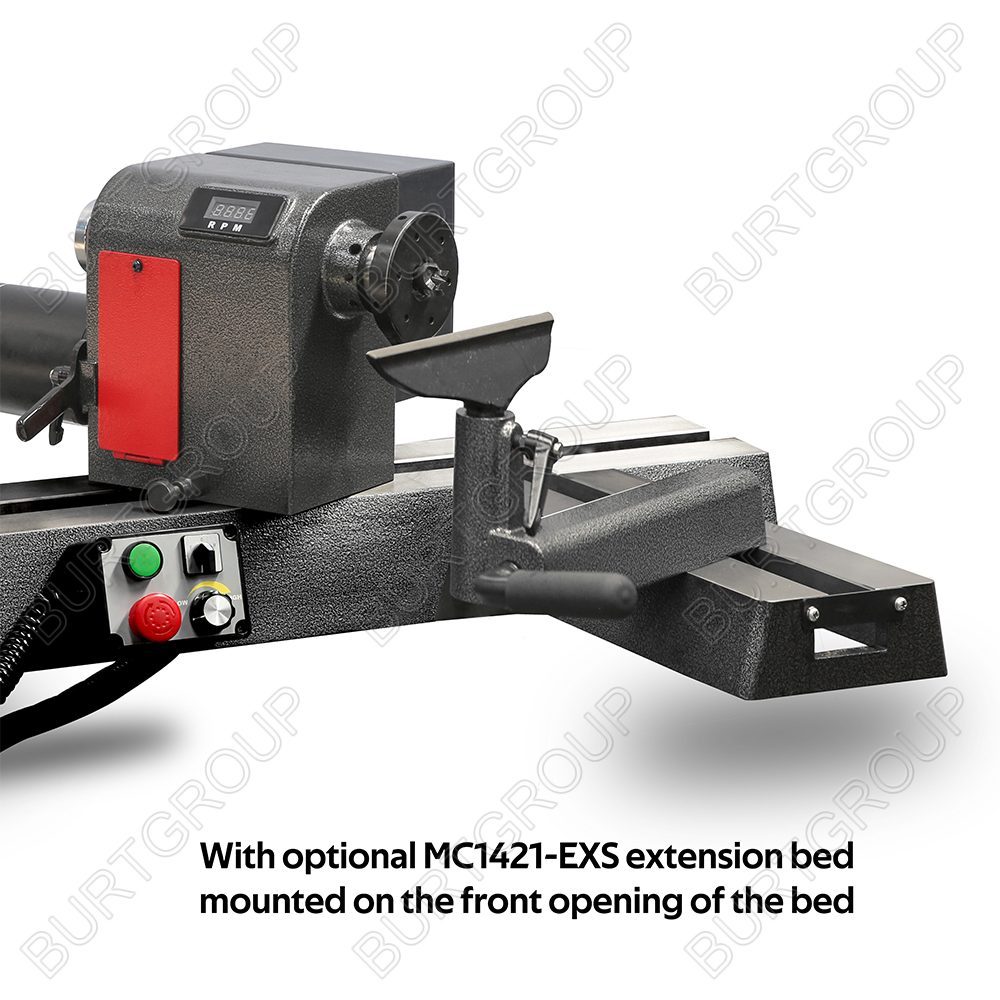

* Additional three machined surfaces to mount optional extension bed increases turning capabilities:

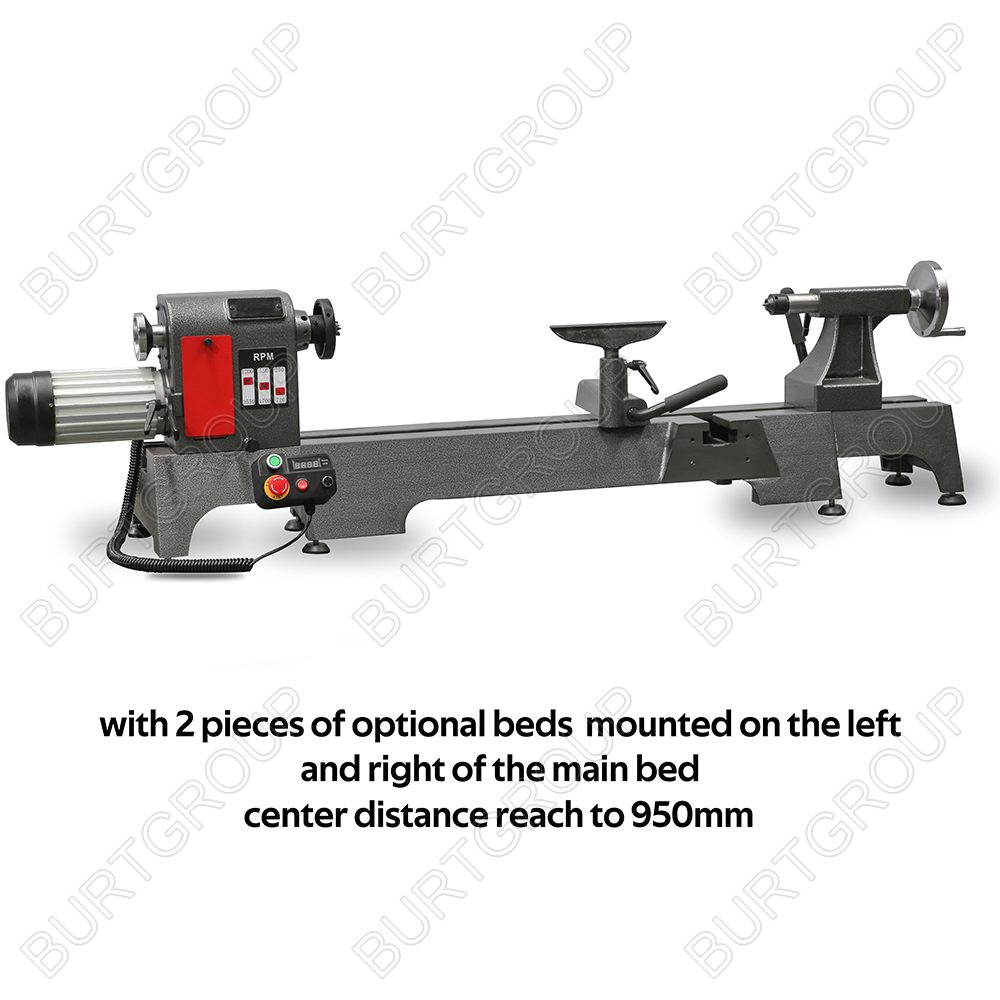

The left and right bed end for increasing the working capacity from 18" to 28" with one extension bed and 38"with two extension beds.

The bed front gives great access to turning bowl or platter edges and back surfaces from 14" to 27".

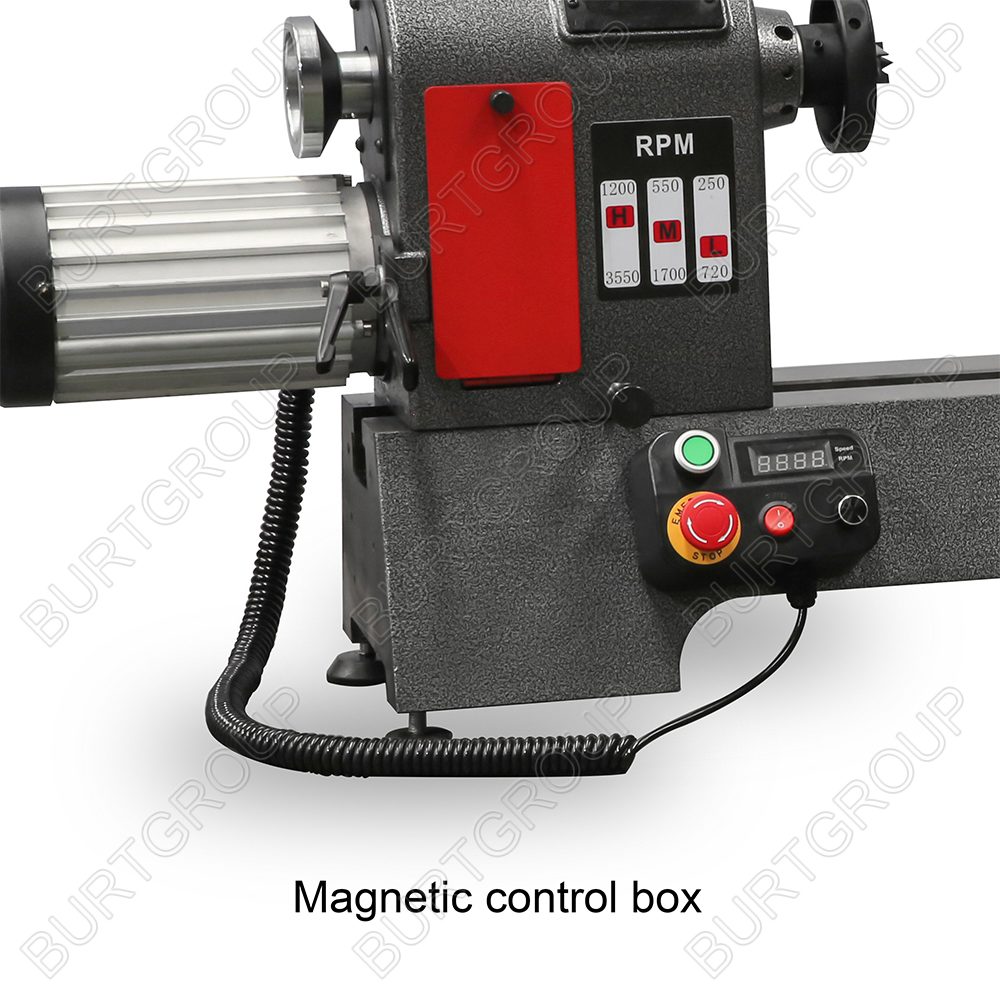

* Magnetic control box can be positioned where required for quick controlling. Fitted with digital speed display, Forward/Reverse running function.

* Ball-bearing construction for smooth, precise spindle operation.Three belt ratios for high torque.
