* Serially with integrated extraction for optimal working conditions and clean air at work
* Comes complete with 2 speed settings (BS75DC/400II), optimal for grinding of stainless steel
* Universal use for grinding of edges, surfaces and round grinding
* Graphite coating on grinding surface increases sliding capacity of sanding belt
* Spring loaded device ensures consistent belt tension
* User-friendly belt change, fast and straightforward
* High belt speed guarantees brilliant sanding performance

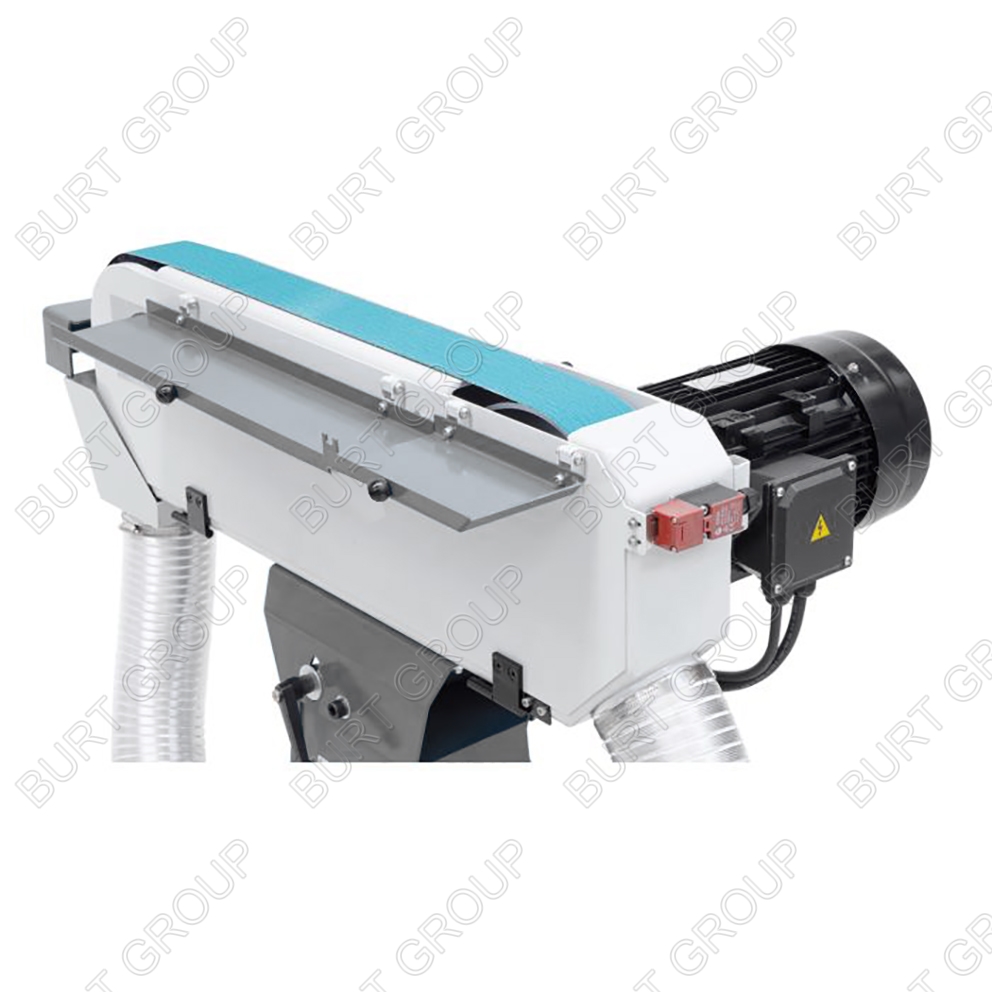

* Large face grinding surface with protective cover

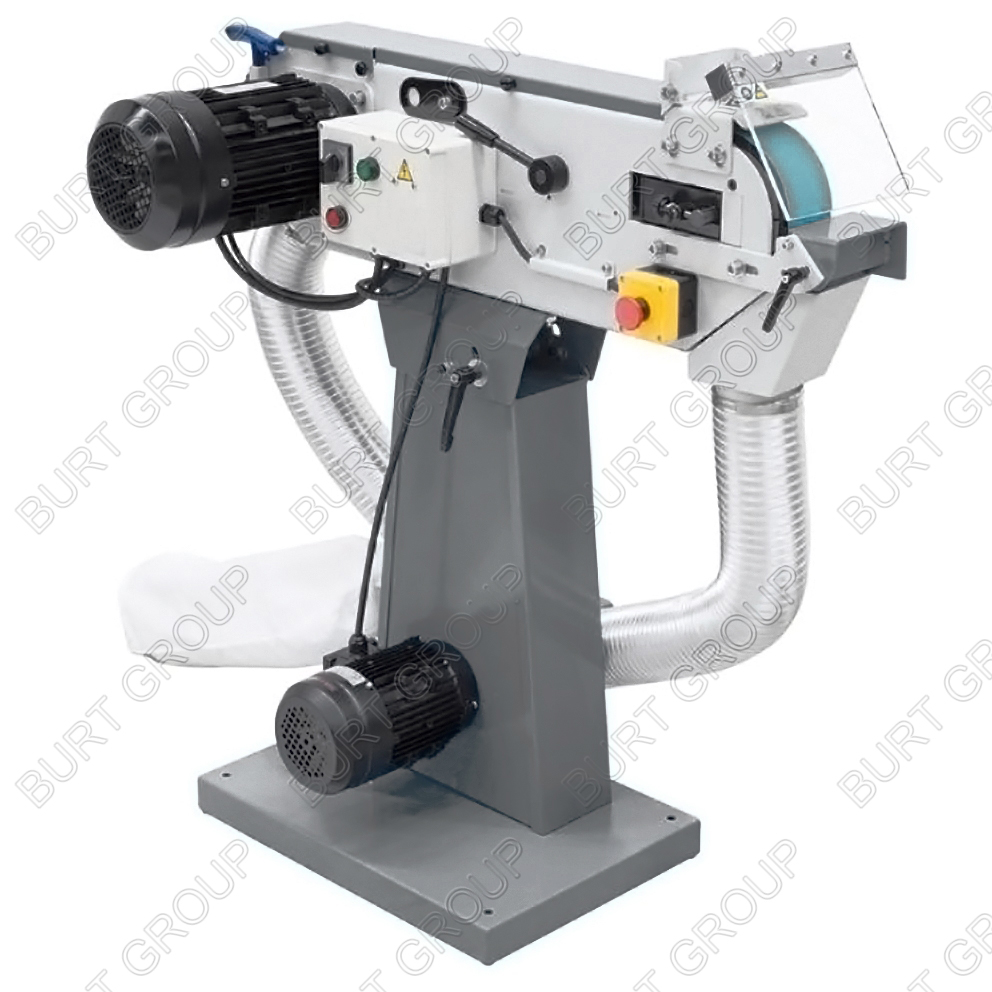

This grinding machine is fitted with integrated extraction for optimal working conditions and clean air at work. It's universal used for grinding of edges, surfaces and round grinding. The machine is fitted with large grinding surface with protective cover. The spring loaded device ensures consistent belt tension and the belt change is fast and straightforward.
MODEL NO.:
BS75DC/230 75X2000MM BELT SANDING MACHINE WITH INTEGRATED EXTRACTION 230V ONE SPEED
BS75DC/400 75X2000MM BELT SANDING MACHINE WITH INTEGRATED EXTRACTION 400V ONE SPEED
BS75DC/400II 75X2000MM BELT SANDING MACHINE WITH INTEGRATED EXTRACTION 400V TWO SPEEDS
Specification:
01) Belt dimension: 75 x 2000 mm
02) Belt speed: one speed model: 36m/sec. ; two speeds model: 18/36 m/sec.

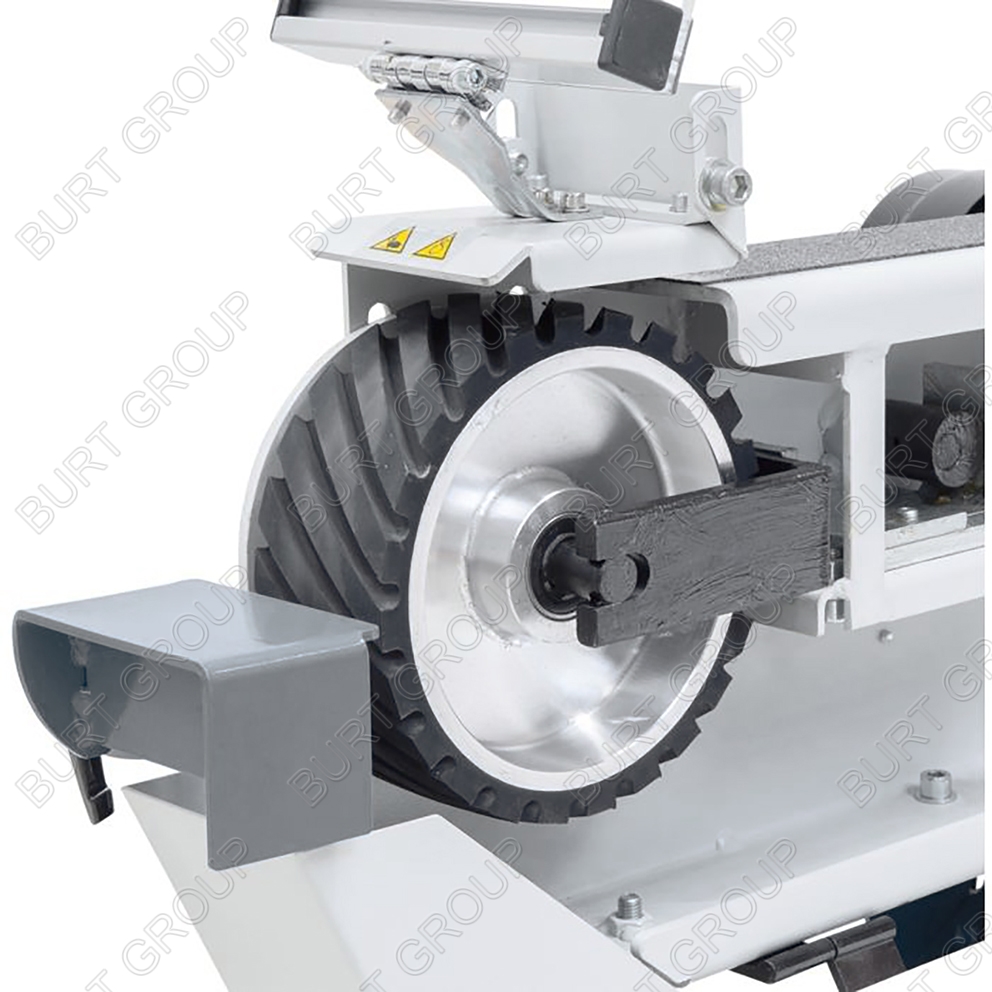

03) Contact diameter: 200/75 mm

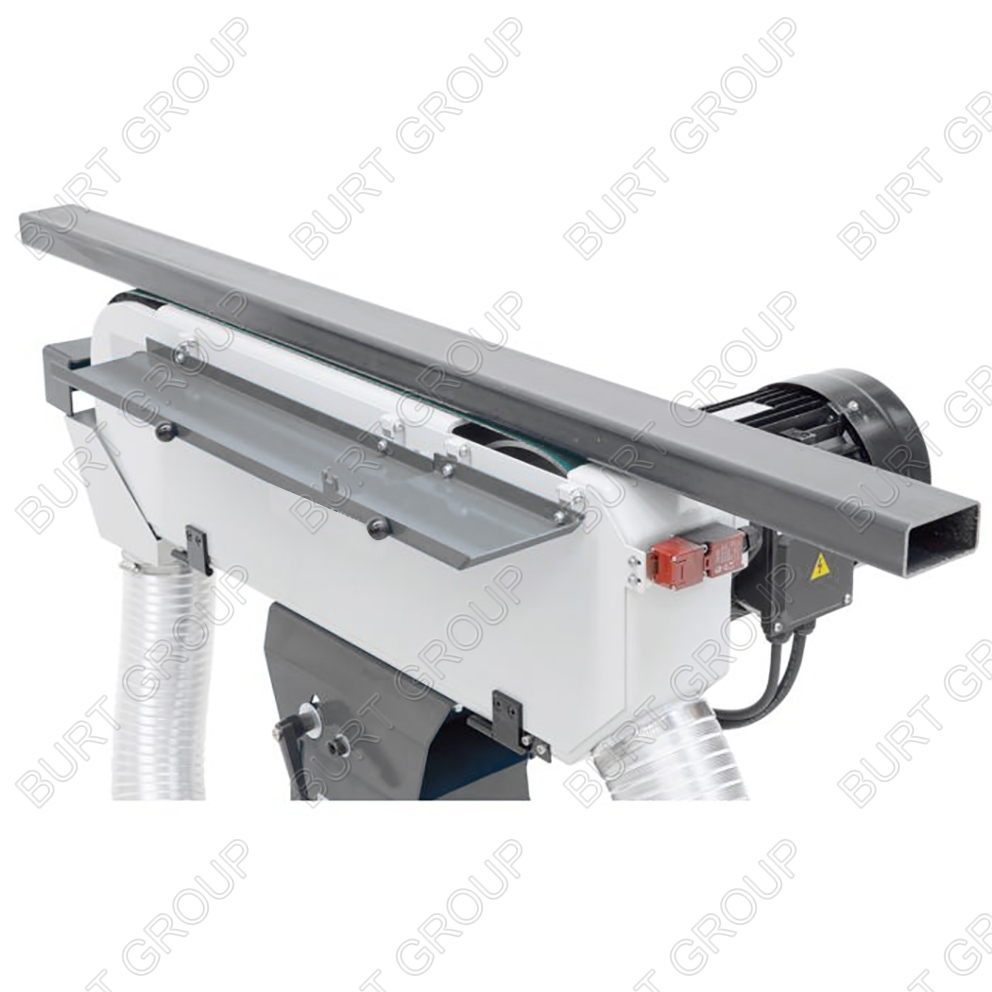

04) Belt sanding table: 500 x 75 mm

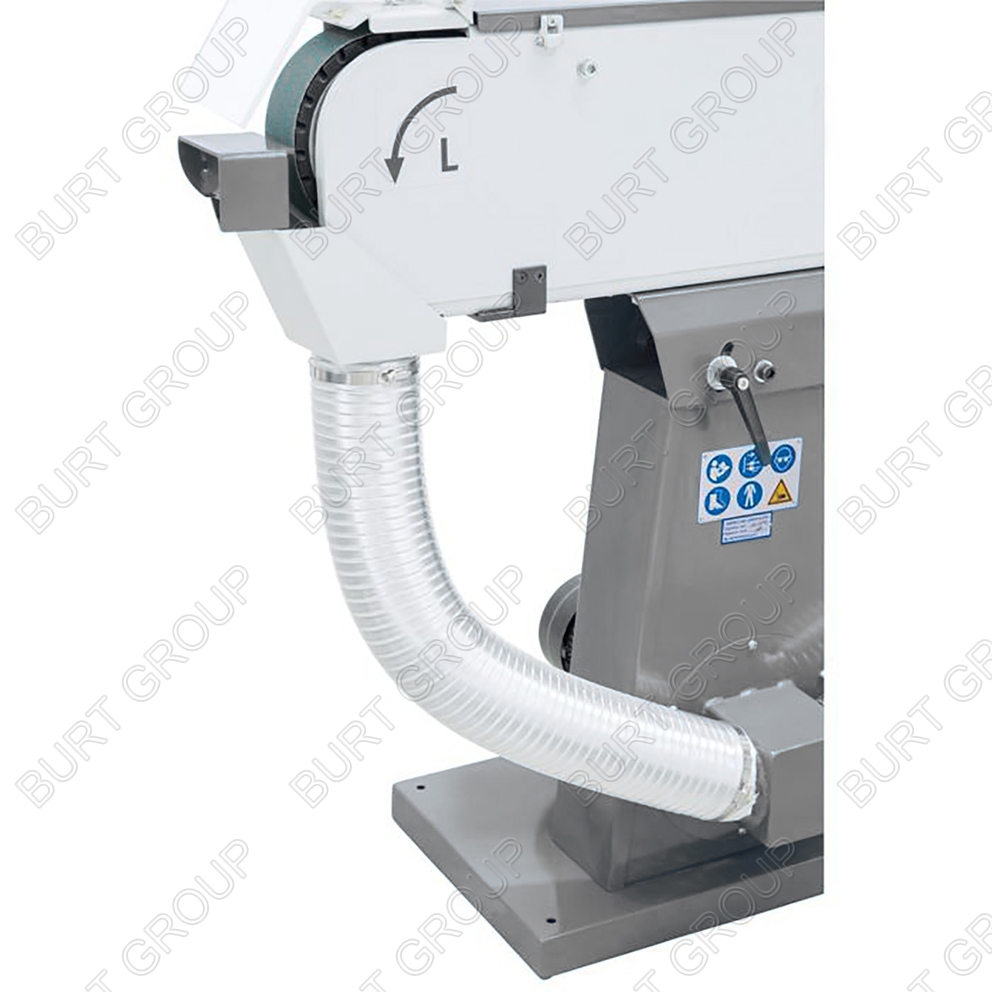

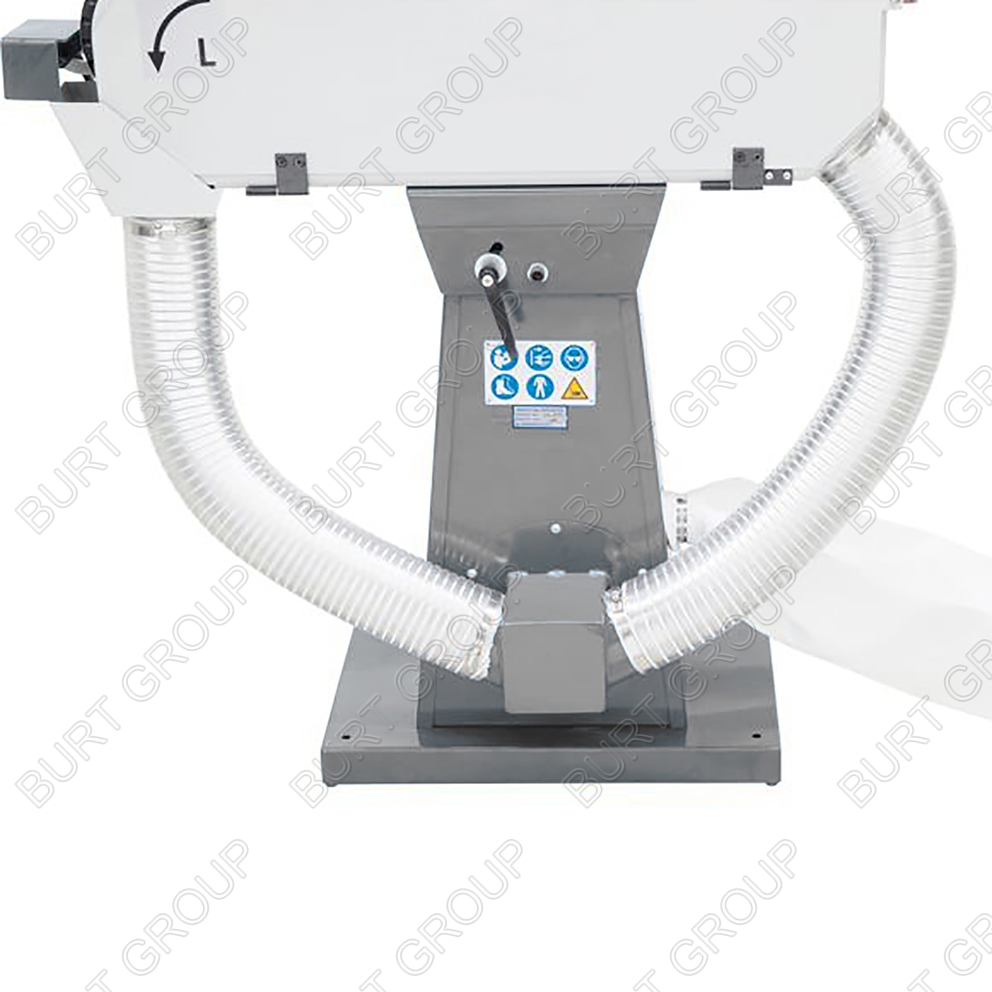

05) Dust extraction outlet: 2x 100 mm
06) Suction power: 520 m3/h
07) Speed suction: 2780 rpm
08) Motor power suction: 0.37 kW
09) Motor power output S1 100%: one speed model: 3.3kW ; two speeds model: 2.5/3.3 kW
10) Motor power input S6 40%: one speed model: 4.3kW ; two speeds model: 3.3/4.3 kW
11) Voltage: 230V 1PH or 400V 3PH
12) Length x Width x Height:1130 x 520 x 1130mm
13) Weight approx.: 104 kg
