HBS350PN

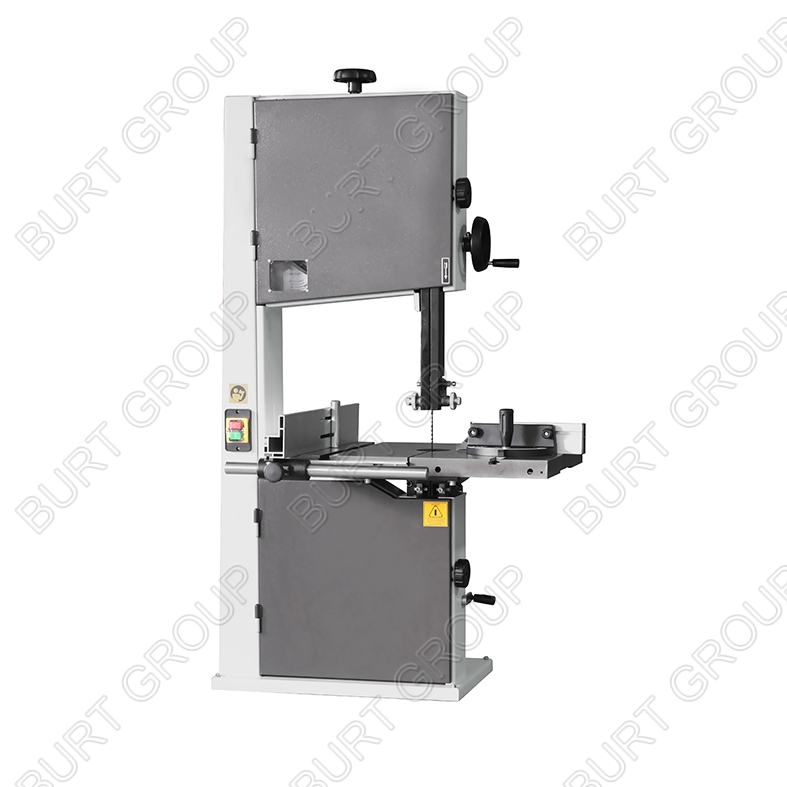

HBS350PN NEW DELUX 14" WOODWORING BANDSAW
Main Features

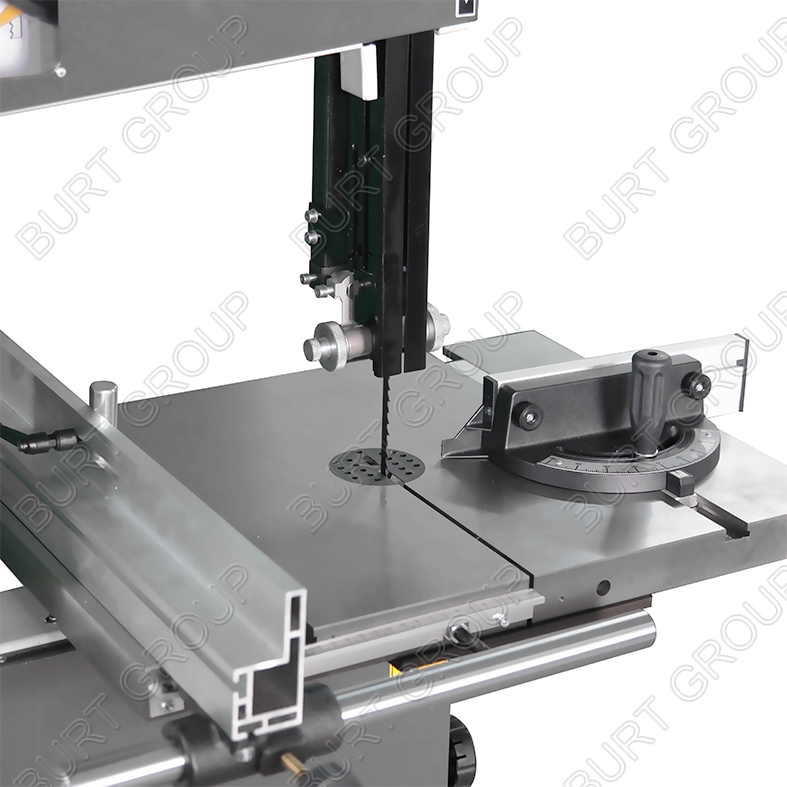

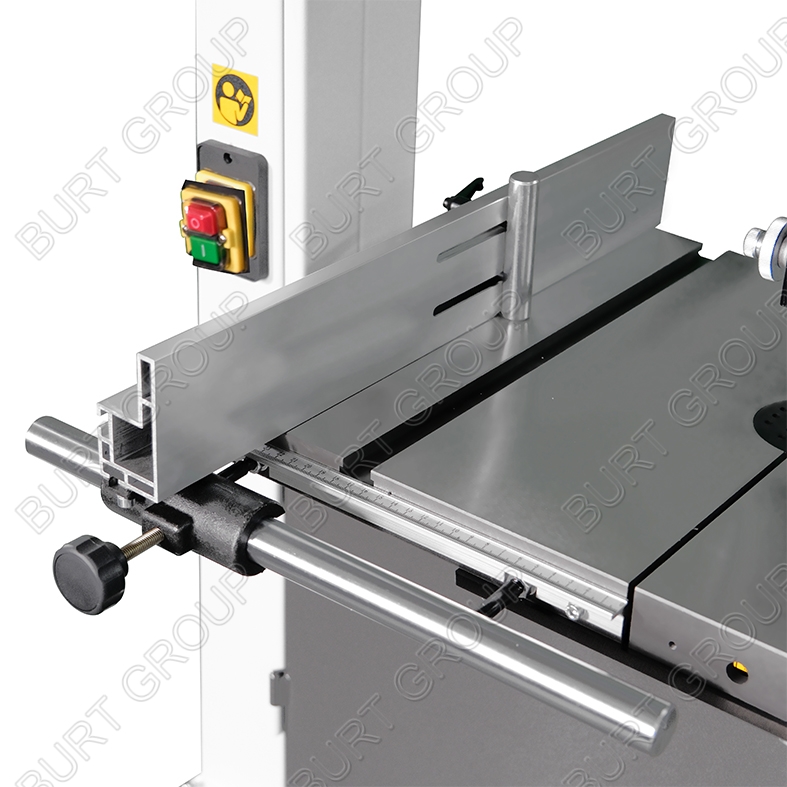

* Industrial style fence features a heavy extrusion mounted on a cast iron base, which moves along a solid steelbar.

* Large cast iron table provides a strong and steady work area to support large workpiece.

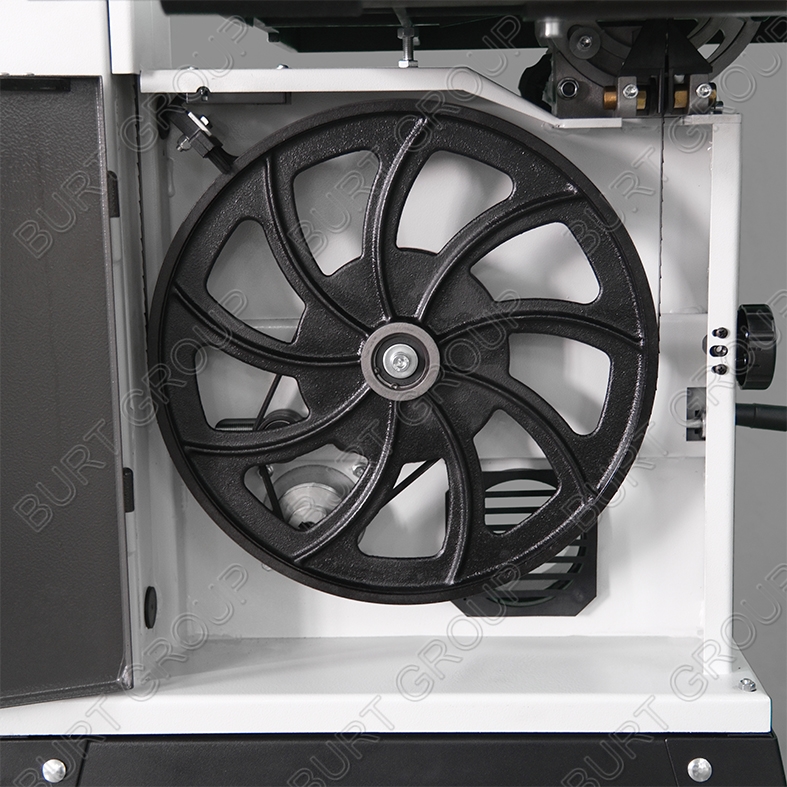

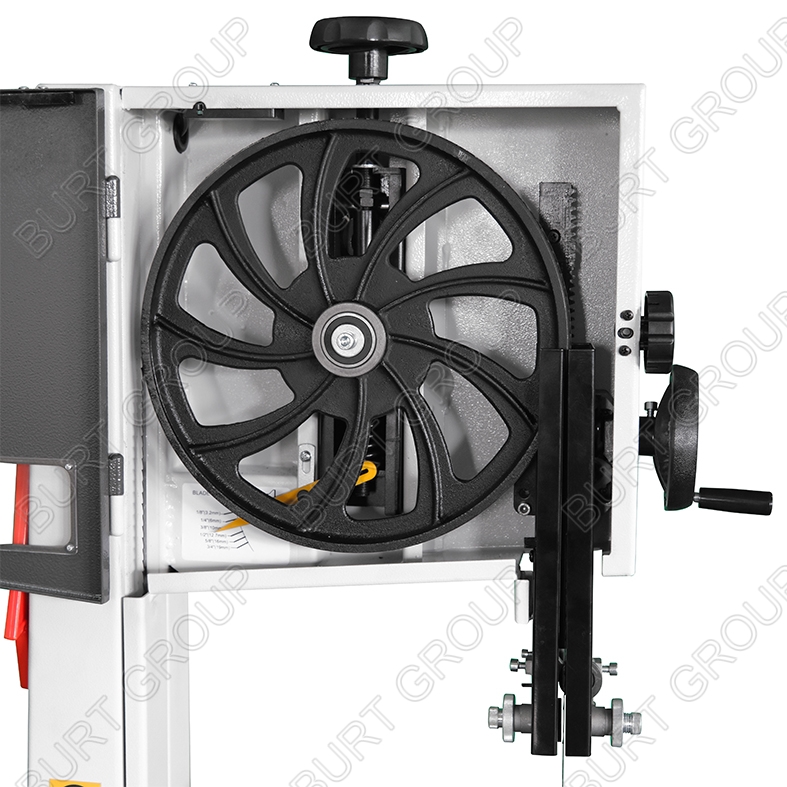

* Cast iron bandwheels are dynamically balanced and provide a flywheel effect for improved cutting performance.

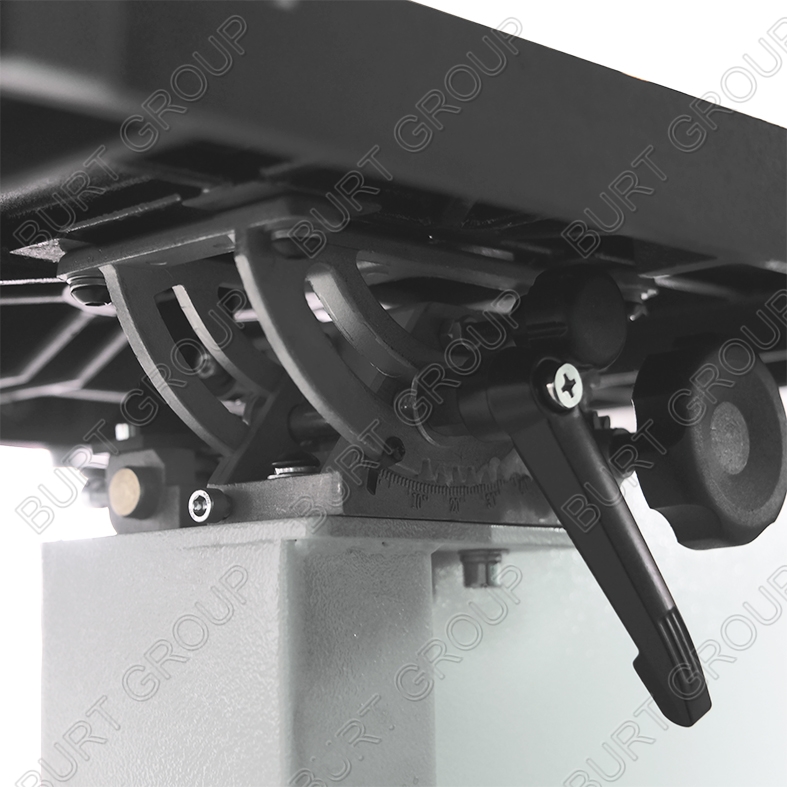

* Solid double trunnion table mount for rigid table support featuring one handed rack pinion table tilt for ease of use and accuracy.


Description Video Documents

HBS350PN bandsaw is for the busy workshop where power and generous capacity are required but budget and space do not allow a bigger machine.The bandwheels are cast iron and dynamically balanced with precision ground, crowned rubber tyres usually only found on much more expensive industrial machines-the flywheel effect of the castiron wheels improves cutting performance and speeds.The rip fence is the strongest and most industrial in its category with achromed fence and the mount machined from a single piece of castiron. The extrusion itself is a heavy section to provide rigidity andaccuracy.


Specification:

01) Motor power(output): 1.5HP

02) Blade length: 2630mm

03) Blade width: 6-19mm

04) Blade speed: 410-860 m/min

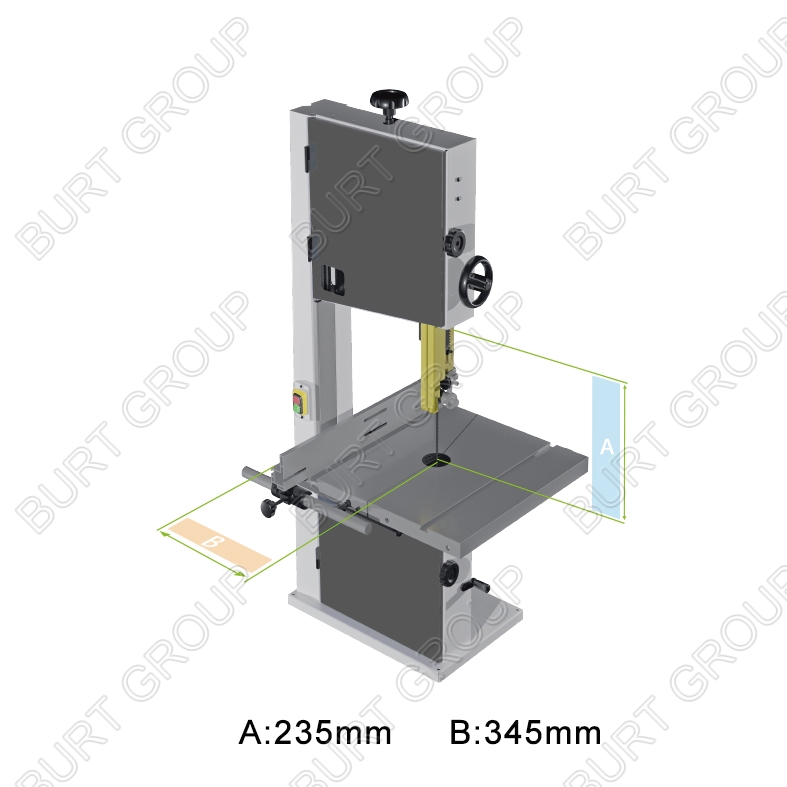

05) Max depth of cut: 235mm

06) Max width of cut: 345mm

07) Table size: 546x400mm

08) Table tilt: 0-45°

09) Bandsaw wheel Dia.:350mm

10) Dust port: 100mm

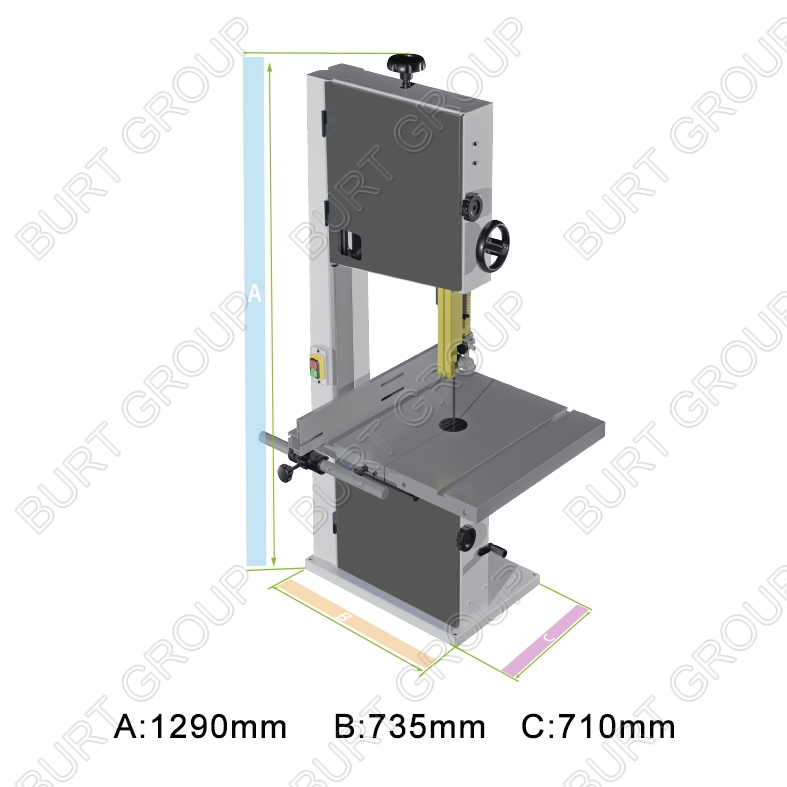

11) Package size: 1295x455x575mm

12) Net/Gross Weight: 96/102kgs

13) Container load Qty: 80pcs/20’

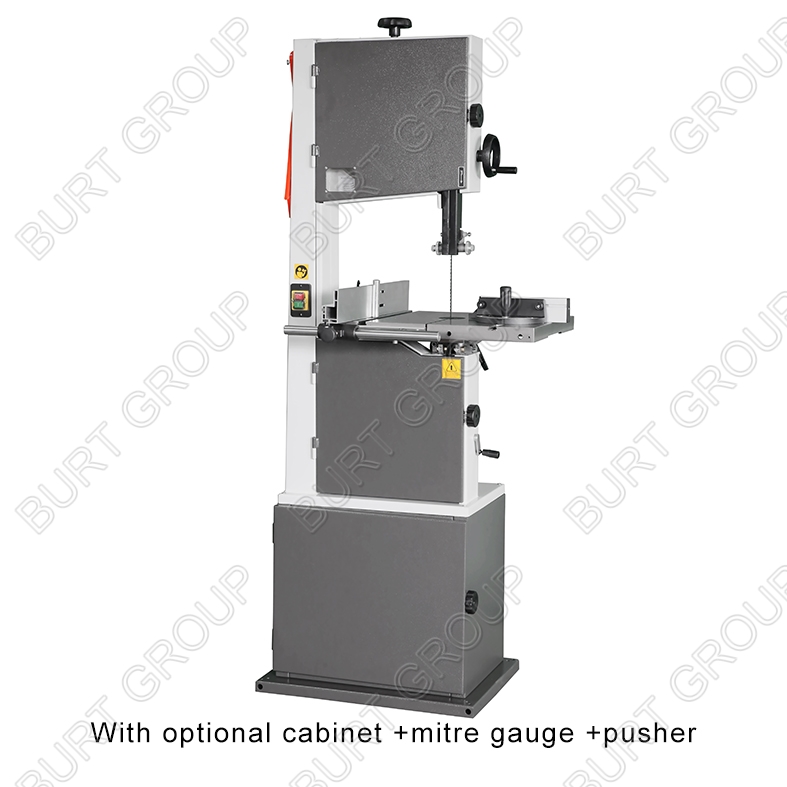

Optional fitting:

* Pusher

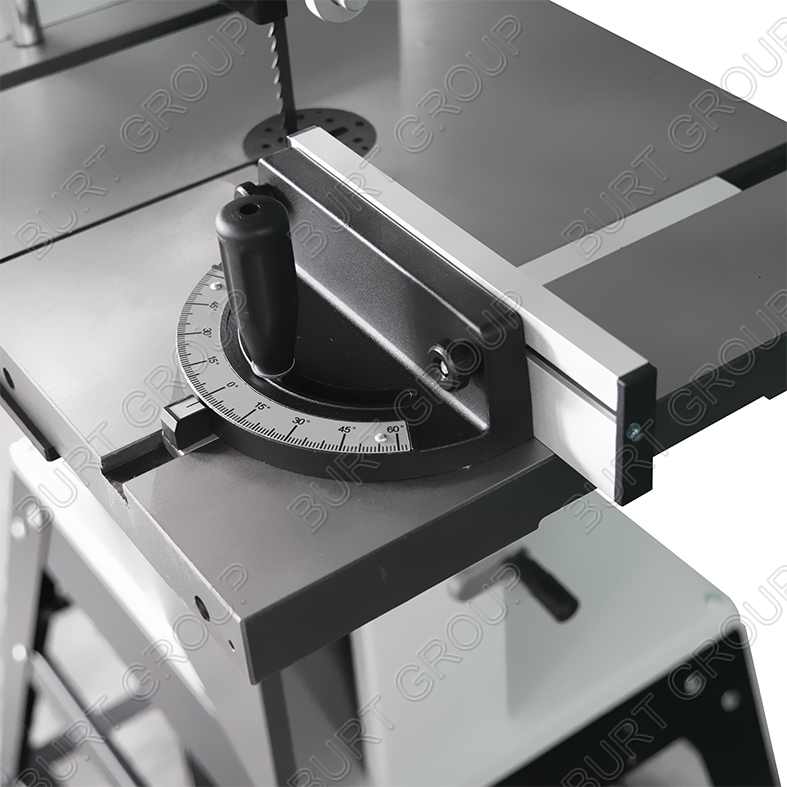

* Mitre gauge

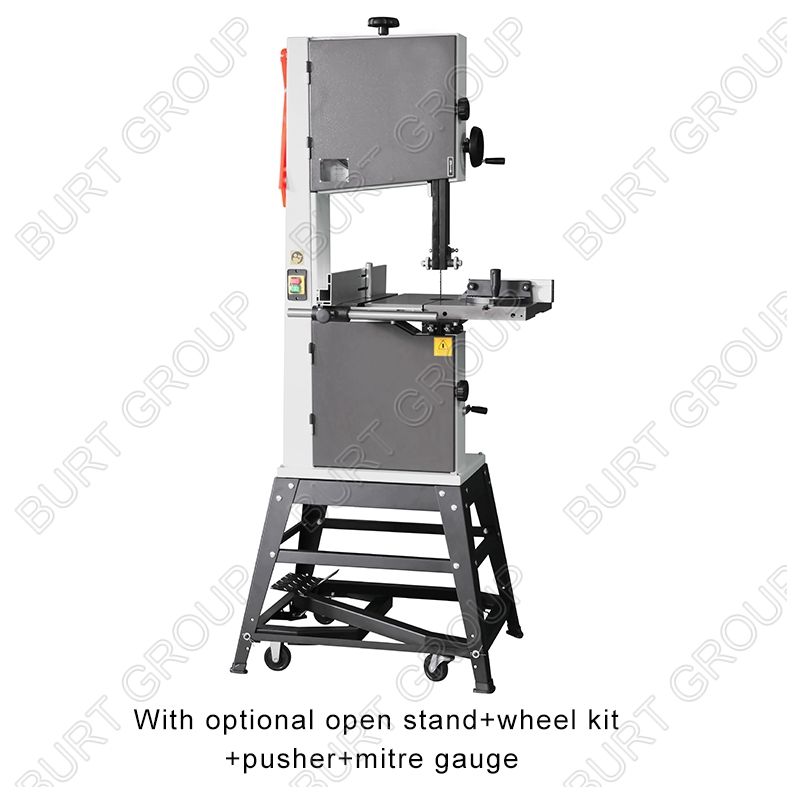

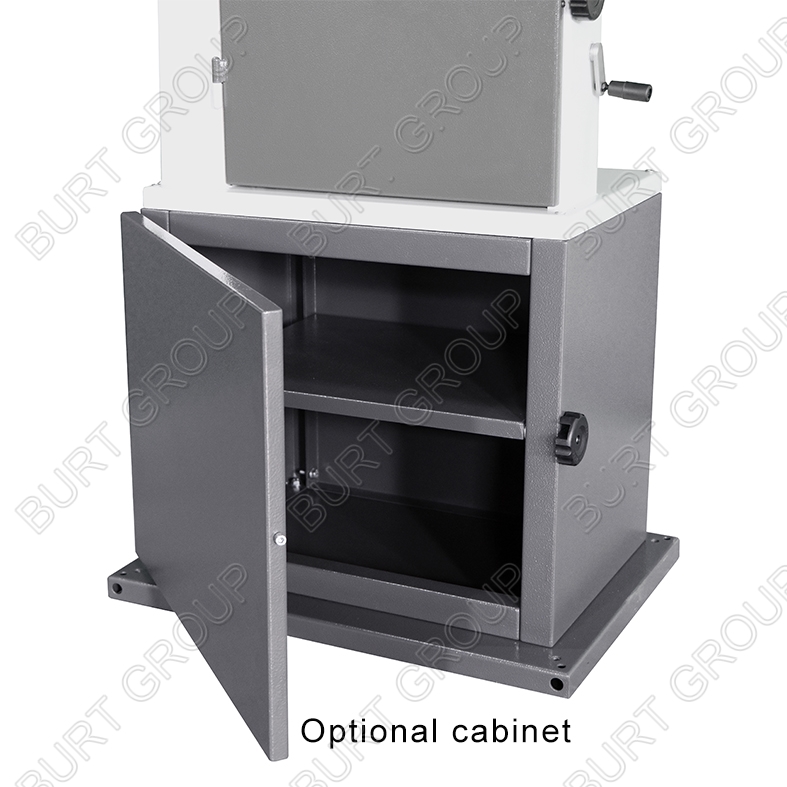

* Open stand

* Wheel kit assembly
