MC1421VF

MC1421VF ELECTRONIC VARIABLE SPEED 14"x21" WOOD LATHE WITH TAIWAN DELTA INVERTER + MAGNETIC CONTROL BOX 1.5HP M33X3.5-DIN800
Main Features

Main features:

* The lathe is constructed from cast iron and includes a powerful 750W universal DC motor with electronic speed control that provides full torque at all speeds.

* Three belt ratios for high torque when turning large diameters

* Digital speed display on the bed

* All cast iron constuction for high stability and vibration free running

* 24 Indexing Positions Function

* With Forward/Reverse running function


Description Video Documents

01). Motor power (w): 1100W(AC Inverter

02). Motor Running Direction: Forward & Reverse

03). Spindle speed (rpm): L:0-1500/ H: 0-3550

04). Spindle thread: M33X3.5(others for optional)

05). Spindle and tailstock taper: MT2

06). Indexing Positions: 24 Positions

07). RAM Travel : 4"(100mm)

08). Distance between centers (mm): 535 (21")

09). Face plate diameter (mm): 80 (3”)

10). Swing over bed (mm): 368 (14-1/2")

11). Swing over tool rest (mm): 268 (10.5")

12). Tool rest working width (mm): 204 (8")

13). Packing size (mm): 980X300X575;

14). N.G. weight (kgs): 56.5/69

15). Units/20' container: 172pcs

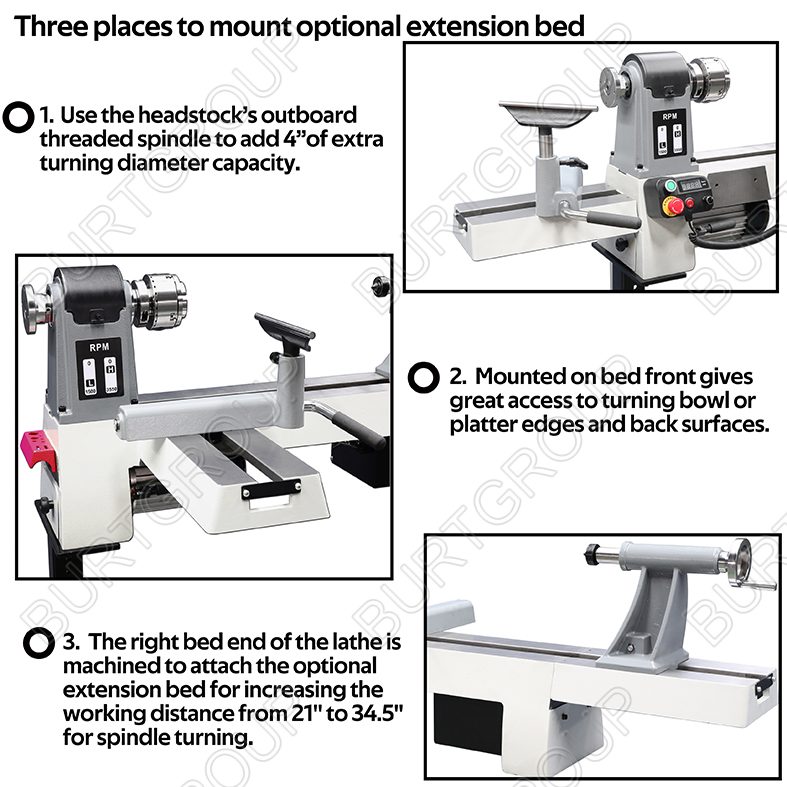

** Optional Extension bed 610mm (24 inch) with Model NO.:MC1420-EX
