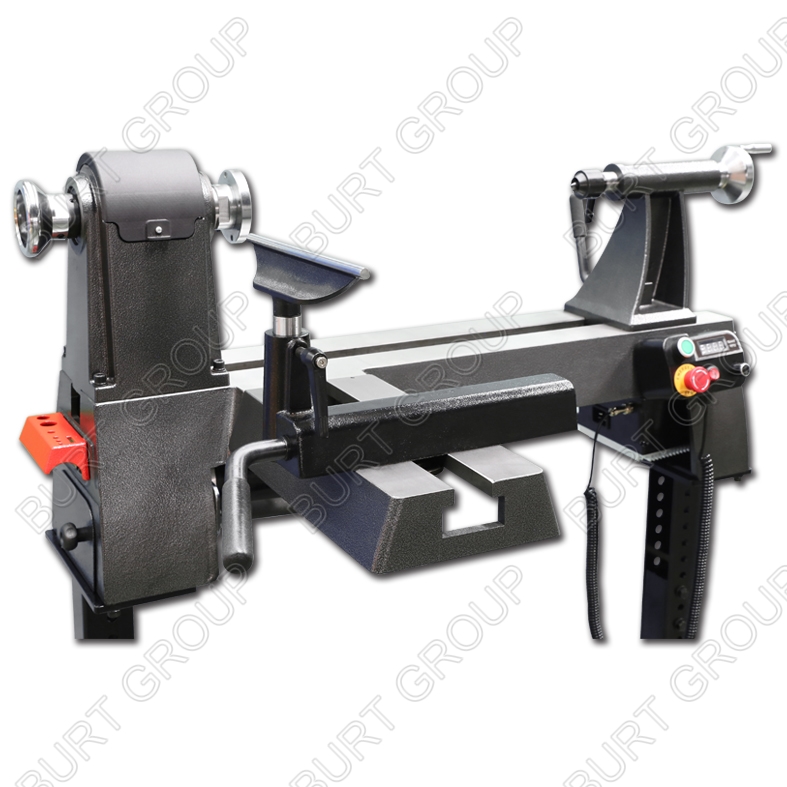

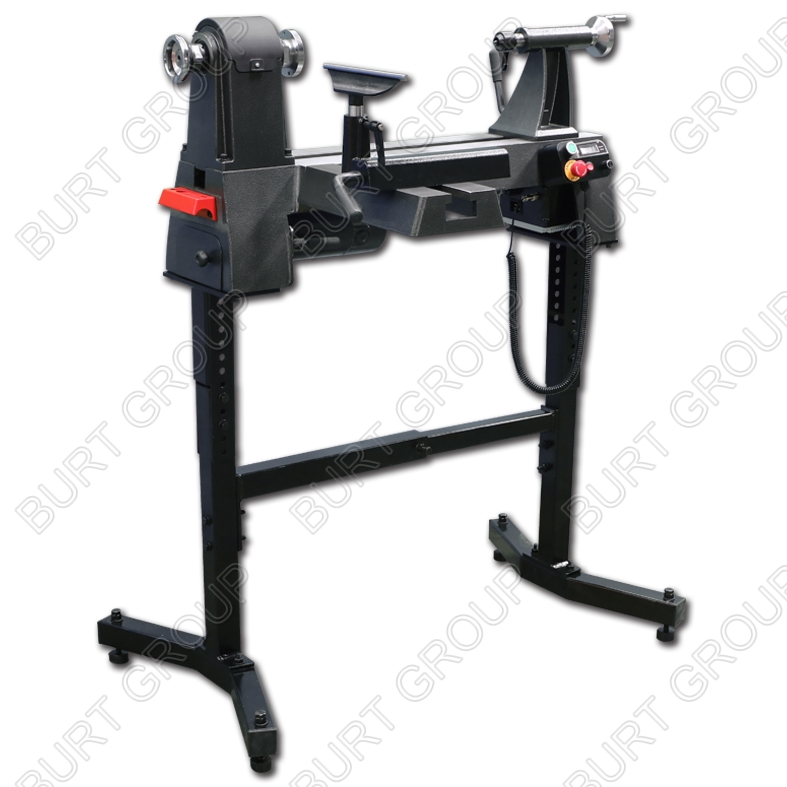

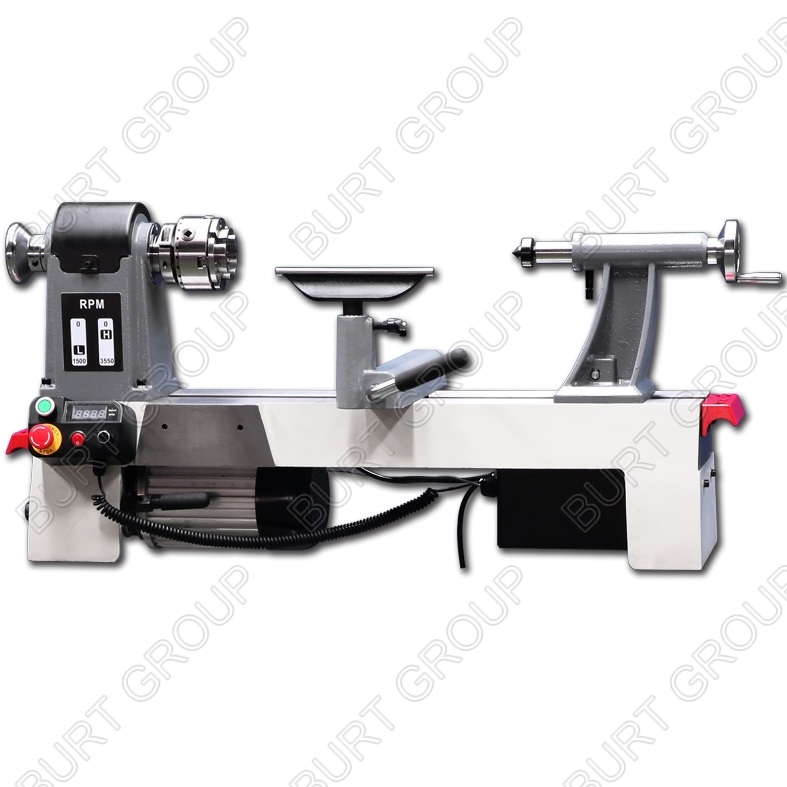

Main features:
* The lathe is constructed from cast iron and includes a powerful 750W universal DC motor with electronic speed control that provides full torque at all speeds.
* Three belt ratios for high torque when turning large diameters
* Digital speed display on the bed
* All cast iron constuction for high stability and vibration free running
* 24 Indexing Positions Function
* With Forward/Reverse running function
01). Motor power (w): 1100W/1400W（DC w/o brush）
02). Motor Running Direction: Forward & Reverse
03). Spindle speed (rpm): L:60-720/M:130-1700/H:300-3550
04). Spindle thread: M33X3.5(others for optional)
05). Spindle and tailstock taper: MT2
06). Indexing Positions: 24 Positions
07). RAM Travel : 4"(100mm)
08). Distance between centers (mm): 535 (21")
09). Face plate diameter (mm): 80 (3”)
10). Swing over bed (mm): 368 (14-1/2")
11). Swing over tool rest (mm): 268 (10.5")
12). Tool rest working width (mm): 204 (8")
13). Packing size (mm): 980X300X575;
14). N.G. weight (kgs): 56.5/69
15). Units/20' container: 172pcs
** Optional Extension bed 610mm (24 inch) with Model NO.:MC1420-EX
